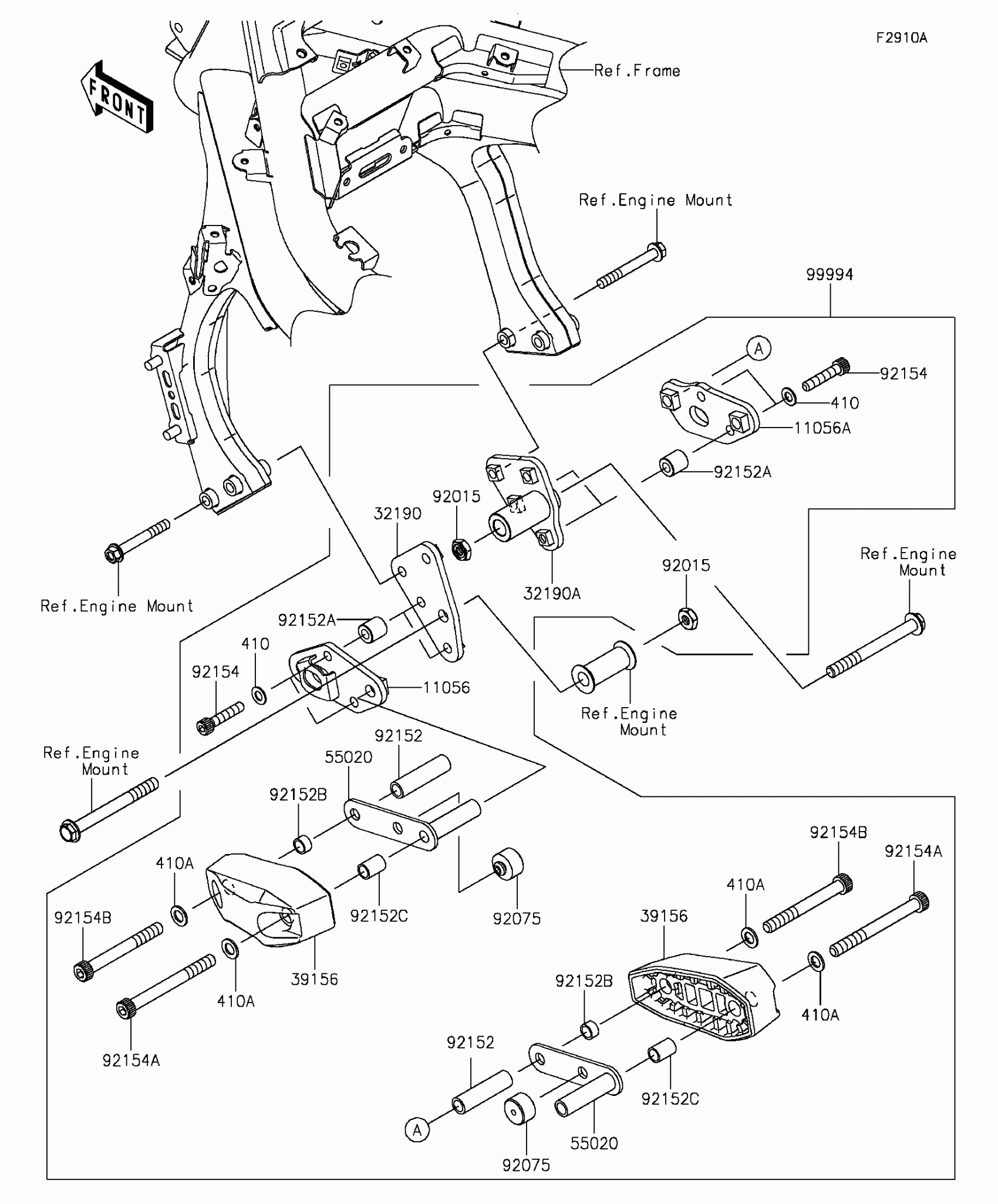

Kawasaki Ninja® 650 ABS Accessory(Engine Guard) Diagram

Description

Price

11056

BRACKET,LH

11056-1398

$70.44

11056A

BRACKET,RH

11056-1399

$70.44

32190

BRACKET-ENGINE,LH

32190-0589

$70.44

32190A

BRACKET-ENGINE,RH

32190-0611

$70.44

39156

PAD,ENGINE GUARD

39156-0758

$101.88

55020

GUARD

55020-0763

$13.31

92015

NUT,LOCK,10MM,BLACK

92015-1188

$4.67

92075

DAMPER

92075-1876

$10.02

92152

COLLAR,10.5X15X57.2

92152-1547

$7.51

92152A

COLLAR,8.6X17X18

92152-1636

$2.46

92152B

COLLAR,10.6X13.8X7.8

92152-1661

$1.44

92152C

COLLAR,10.6X13.8X19.8

92152-1662

$1.93

92154

BOLT,SOCKET,8X40

92154-1001

$3.68

92154A

BOLT,SOCKET,10X100

92154-1027

$30.99

92154B

BOLT,SOCKET,10X88

92154-1028

$30.99

99994

KIT-ACCESSORY,ENGINE GUARD

99994-0234

$354.32

410

WASHER-PLAIN-SMALL,8MM,BLACK

410AB0800

$3.68

410A

WASHER-PLAIN-SMALL,10MM,BLACK

410AB1000

$3.88
