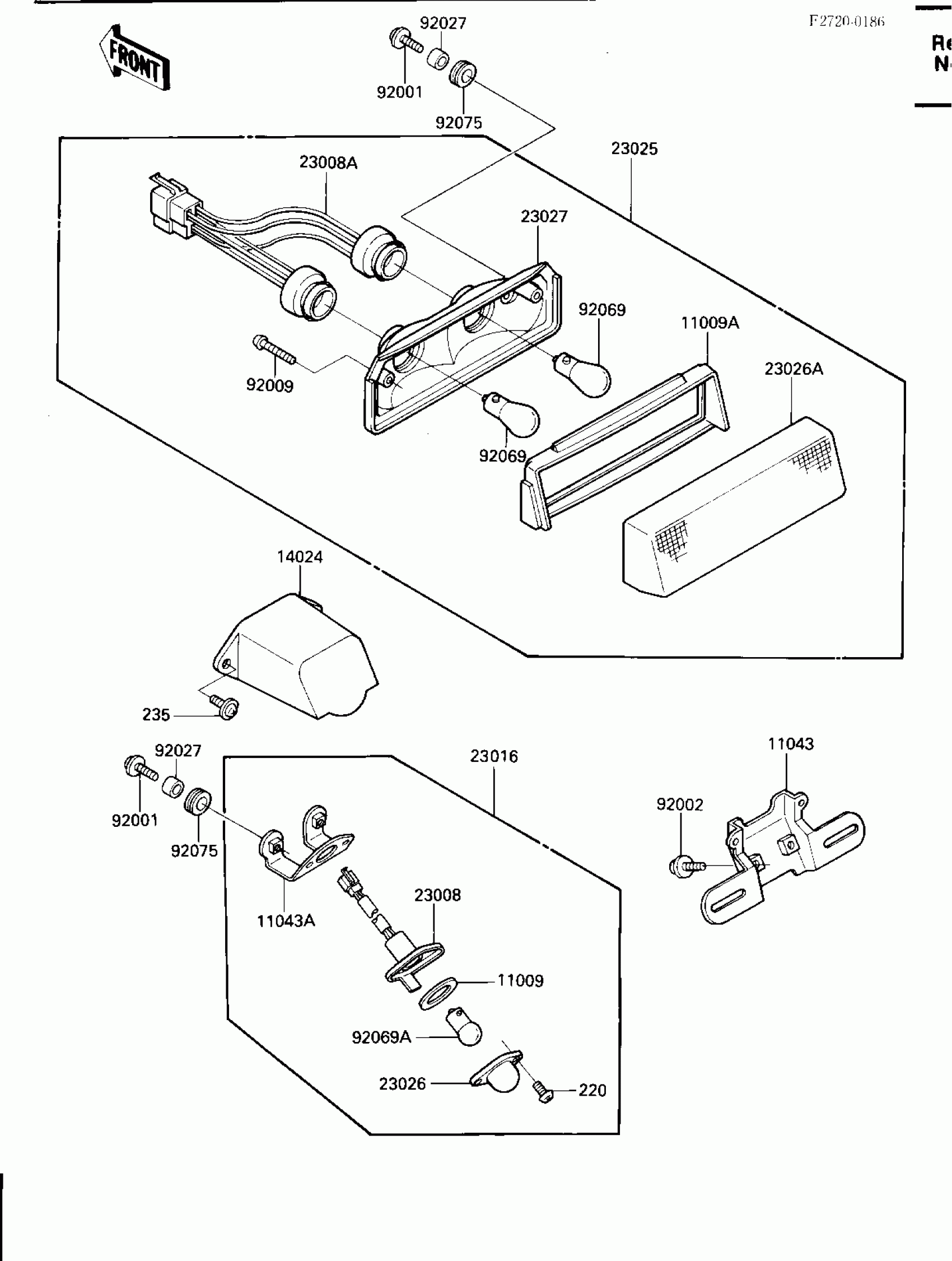

Kawasaki Ninja® 600RX TAILLIGHT Diagram

#

Description
Price

11009

GASKET,LICENSE PLATE LAMP

11009-1372

$4.65

11009A

GASKET,TAIL LAMP

11009-1404

$21.55

11043

BRACKET,LICENSE PLATE

11043-1440

$27.35

11043A

BRACKET,LICENSE PLATE LAMP

11043-1497

Unavailable

14024

COVER,LICENSE PLATE LAMP

14025-1821

$20.00

23008

SOCKET-ASSY,LICENSE PLATE LAMP

23008-1221

Unavailable

23008A

SOCKET-ASSY,TAIL LAMP

23008-1225

$40.69

23016

LAMP-ASSY,LICENSE PLATE

23016-1053

$72.93

23025

LAMP-TAIL

23025-1105

Unavailable

23026

LENS,LAMP

23026-1054

$9.28

23026A

LENS,TAIL LAMP

23026-1056

$29.59

23027

BODY-COMP-TAIL LAMP

23027-1064

Unavailable

92001

BOLT,6X20

92001-1773

$3.96

92002

BOLT,6X14

92002-1351

$4.31

92009

SCREW,TAPPING,4X30

92009-1056

$4.38

92027

COLLAR 6.8X10X10.5

92027-120

$5.00

92069

BULB,12V 27/8W

92069-059

$8.12

92069A

BULB,12V 8W

92069-1012

Unavailable

92075

DAMPER,CASE

92075-222

$7.34

220

SCREW PAN HEAD 4X10

220B0410

Unavailable

235

SCREW-PAN-WP-CROS,6X16

235C0616

Unavailable
