1987 Kawasaki Ninja® 600RX Secondary Shaft Diagram

← All diagrams

Find the part on the Secondary Shaft diagram for your 1987 Kawasaki Ninja® 600RX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

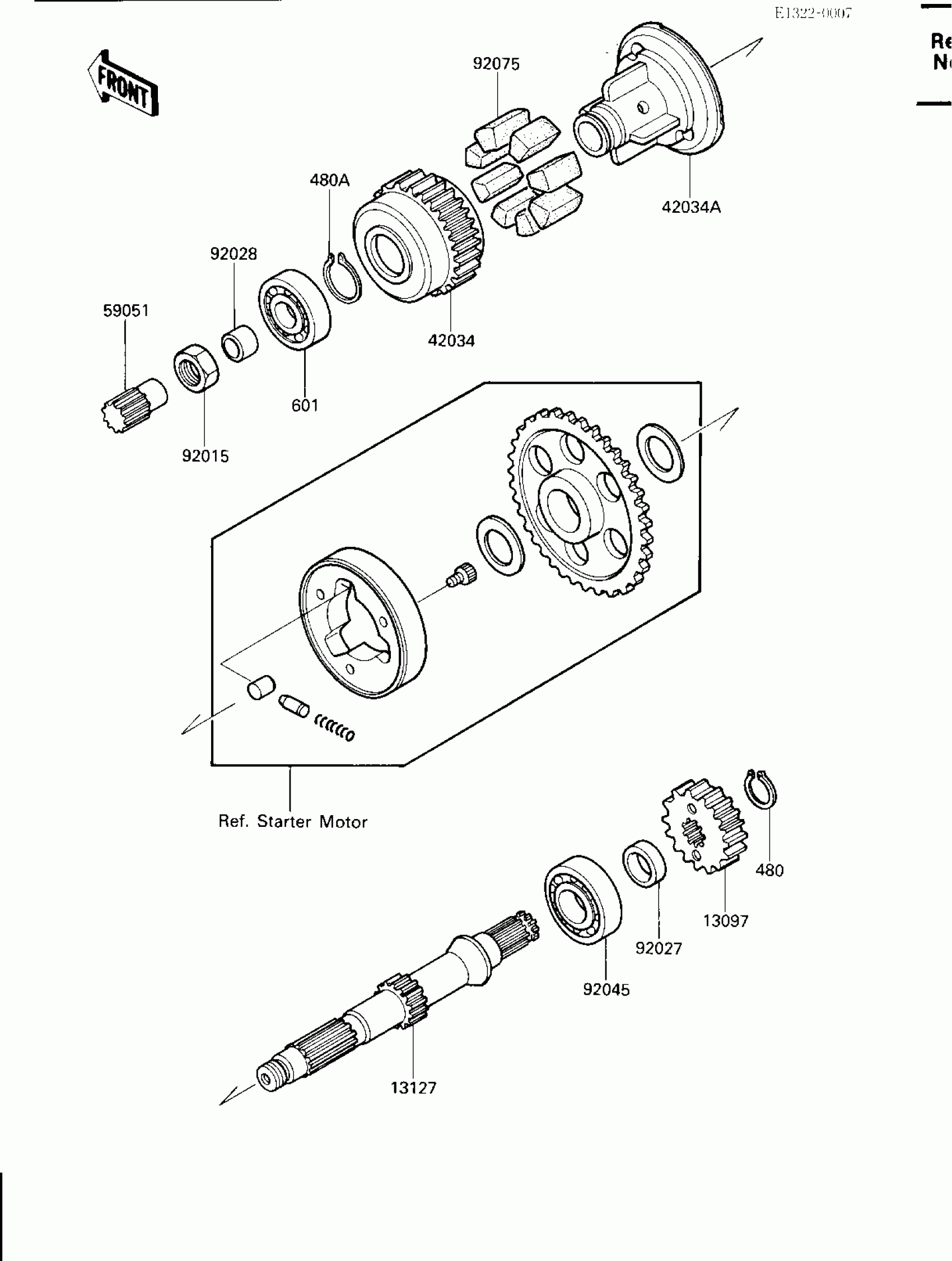

1987 Kawasaki Ninja® 600RX Secondary Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13097

GEAR-PRIMARY SPUR,28T

13097-1141

1
Out of stock

13127

SHAFT,SECONDARY

13127-1123

1
Out of stock

42034

COUPLING,OUTER,SECONDARY SHAFT

42034-1004

1
Out of stock

42034A

COUPLING,INNER,SECONDARY SHAFT

42034-1005

1
Out of stock

59051

GEAR-SPUR,10T,SECONDARY

59051-1137

1
Out of stock

92015

NUT,20MM

92016-028

1
Out of stock

92027

COLLAR,22X34X7.3

92027-1438

1
Out of stock

92028

BUSHING,20X25X16.6

92028-1037

1
Out of stock

92045

BEARING-BALL,#63/22X

92045-1017

1
Out of stock

92075

DAMPER,COUPLING

92075-1070

1
Out of stock

480

CIRCLIP-TYPE-C,22MM

480J2200

1
Out of stock

480A

CIRCLIP-TYPE-C,28MM

480J2800

1
Out of stock

601

BEARING-BALL,#6205C3

601B6205

1
Out of stock
