1987 Kawasaki Ninja® 600RX Rear Master Cylinder Diagram

← All diagrams

Find the part on the Rear Master Cylinder diagram for your 1987 Kawasaki Ninja® 600RX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

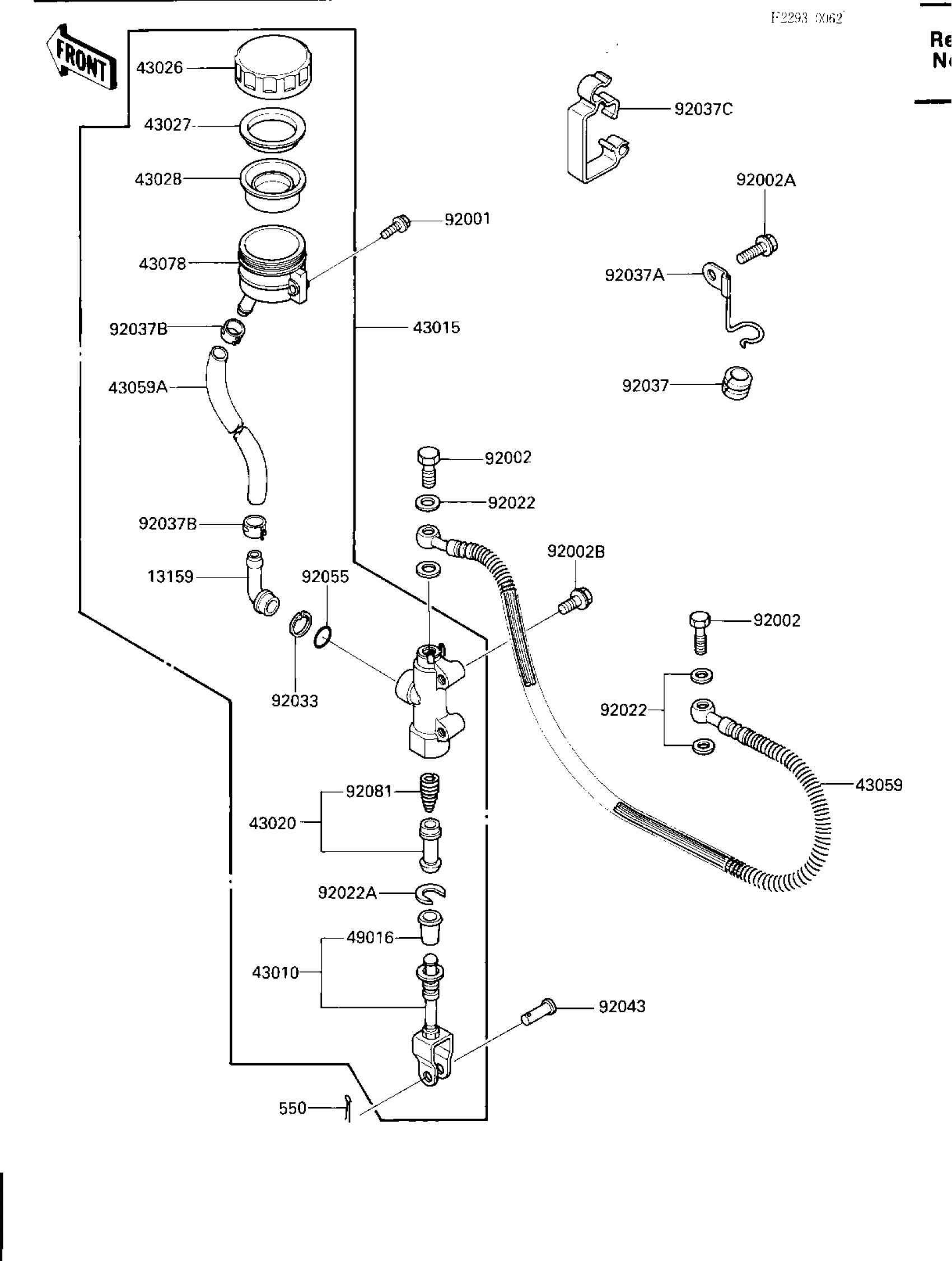

1987 Kawasaki Ninja® 600RX Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13159

1

$13.39

In stock

43010

ROD-ASSY-BRAKE

43010-1054

1

$72.89

In stock

43015

1

$424.38

In stock

43020

PISTON-COMP-BRAKE

43020-1057

1

$59.90

In stock

43026

CAP-BRAKE

43026-1054

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-1051

1

$4.22

In stock

43028

1

$15.01

In stock

43059

HOSE-BRAKE,RR

43059-1618

1
Out of stock

43059A

HOSE-BRAKE,RR MASTER CYLINDER

43059-1313

1
Out of stock

43078

1

$28.80

In stock

49016

1

$12.73

In stock

92001

BOLT,W/P,6X16

92001-1860

1

$3.85

In stock

92002

BOLT

92002-1900

1
Out of stock

92002A

BOLT,FLANGED,10X10

92002-1311

1

$5.59

In stock

92002B

BOLT,8X30

92002-1485

1

$3.11

In stock

92022

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

92022A

WASHER,CIRCRIP

92022-1601

1
Out of stock

92033

RING-SNAP,20.5MM

92033-1186

1

$3.94

In stock

92037

GROMMET,HOSE CLAMP

43064-007

1

$4.37

In stock

92037A

CLAMP

92037-1540

1

$16.71

In stock

92037B

CLAMP,BRAKE HOSE

92037-1547

1

$11.81

In stock

92037C

CLAMP,BRAKE HOSE

92037-1674

1

$8.39

In stock

92043

PIN,8X16

92043-1013

1
Out of stock

92055

RING-O,MASTER CYLINDER

92055-1251

1
Out of stock

92081

1

$11.69

In stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock
