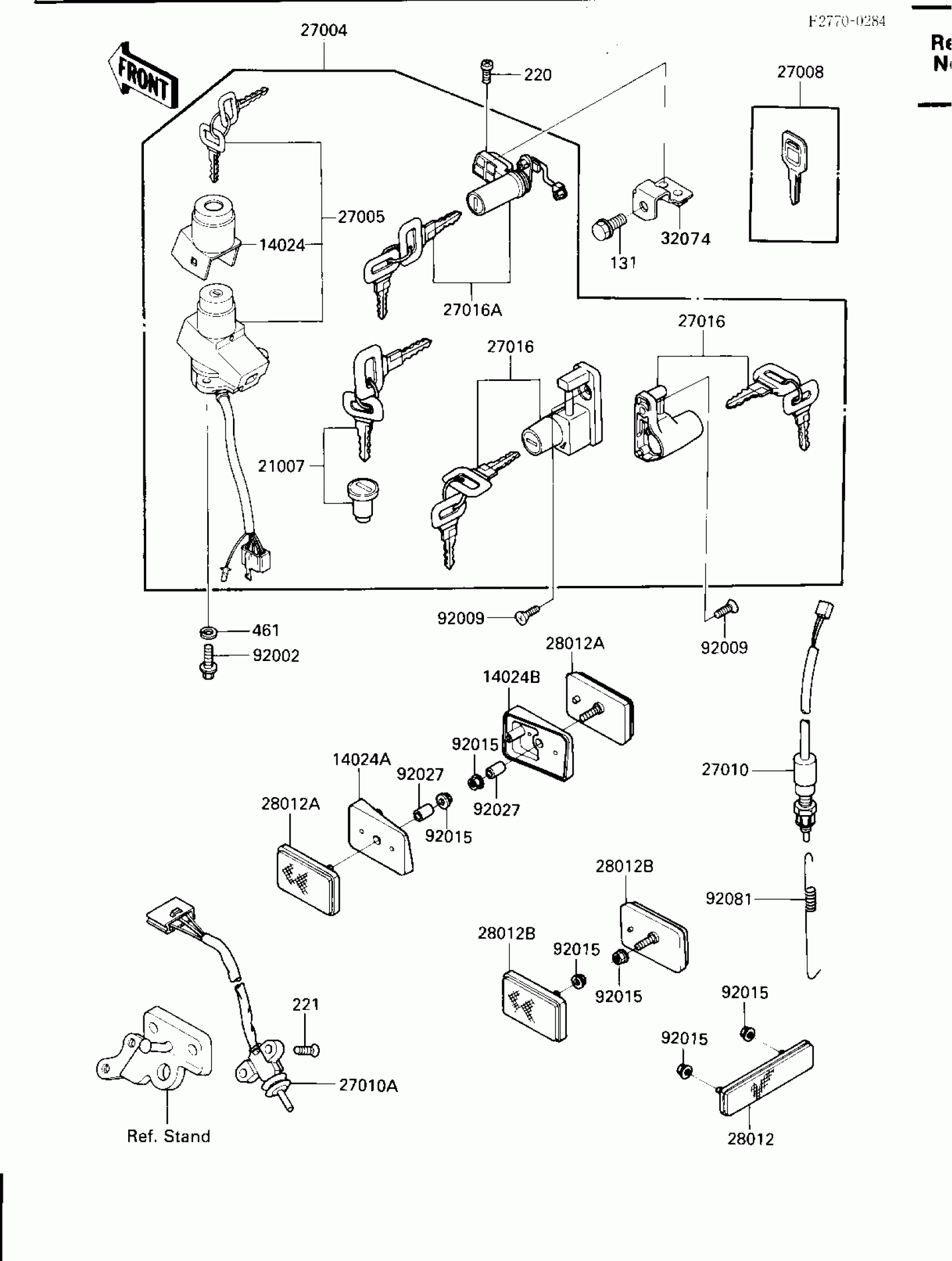

Kawasaki Ninja® 600RX IGNITION SWITCH/LOCKS/REFLECTORS Diagram

Description

Price

14024

COVER,IGNITION SWITCH

14024-1332

$14.05

14024A

COVER,REFLECTOR,FR

14025-1886

Unavailable

14024B

COVER,REFLECTOR,FR

14025-1887

Unavailable

21007

ROTOR,LOCK,TANK CAP

21007-5012

$94.15

27004

SWITCH-ASSY

27004-5262

$447.84

27005

SWITCH-ASSY-IGNITION

27005-5047

Unavailable

27008

KEY-LOCK,BLANK

27008-1103

$16.44

27010

SWITCH,BRAKE LAMP

27010-1093

$26.58

27010A

SWITCH,SIDE STAND

27010-1190

Unavailable

27016

LOCK-ASSY,HELMET

27016-5091

$72.53

27016A

LOCK-ASSY,SEAT

27016-5093

Unavailable

28012

REFLECTOR-REFLEX,RR

28012-1005

$28.89

28012A

REFLECTOR-REFLEX,FR

28012-1052

Unavailable

28012B

REFLECTOR-REFLEX,RR

28012-1054

$18.15

32074

BRACKET-LOCK,SEAT

32074-1121

Unavailable

92002

BOLT,TORX,6X16

92002-1333

$1.85

92009

SCREW,5X18

92009-1305

$3.58

92015

NUT,FLANGED,5MM

92015-1259

$2.99

92027

COLLAR,5.6X8X14.5

92027-1789

$4.42

92081

SPRING,BRAKE LAMP SWITCH

92081-1704

Unavailable

131

BELT,FLANGED,6X12

131B0612

Unavailable

220

SCREW-PAN-CROS

220B0512

$0.47

221

SCREW-CSK-CROS

221C0520

$3.24

461

WASHER SPRING 6MM

461F0600

Unavailable
