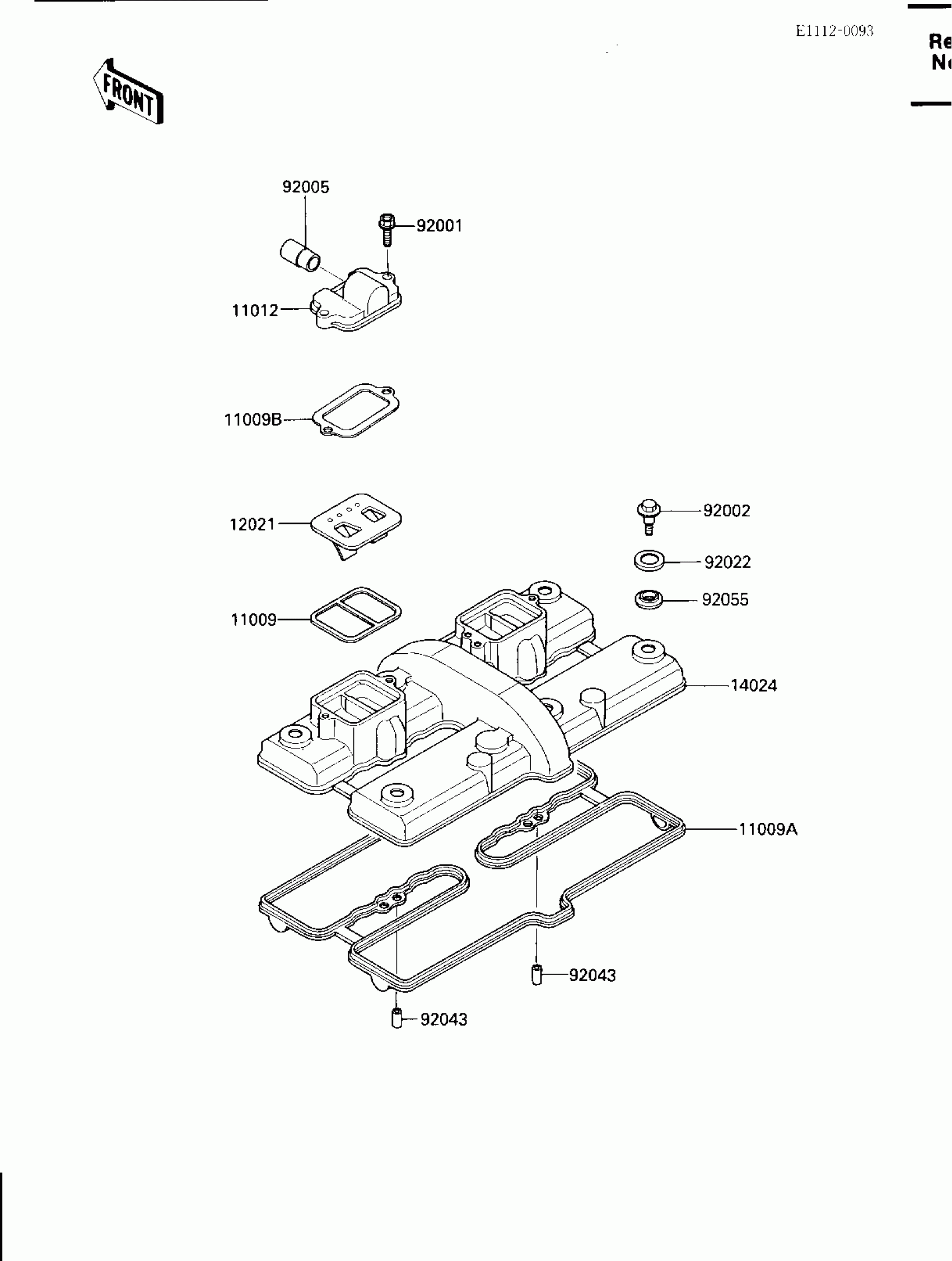

Kawasaki Ninja® 600RX CYLINDER HEAD COVER Diagram

Description

Price

11009

GASKET,REED VALVE

11009-1905

Unavailable

11009A

GASKET,CYLINDER HEAD COVER

11009-1497

Unavailable

11009B

GASKET

11009-1545

Unavailable

11012

CAP,REED VALVE

11012-1481

$46.36

12021

VALVE-ASSY-REED

12021-1053

$81.60

14024

COVER,CYLINDER HEAD

14024-1144

Unavailable

92001

BOLT,FLANGED,6X22

92001-1352

$3.29

92002

BOLT,FLANGED,6X23.5

92150-1447

$3.52

92005

FITTING,REED VALVE

92005-1006

$8.17

92022

WASHER,HEAD COVER BOLT

92022-1637

$4.37

92043

PIN,6.2X8X14

92043-1263

$0.46

92055

RING-O,HEAD COVER BOLT

92055-1225

$6.46
