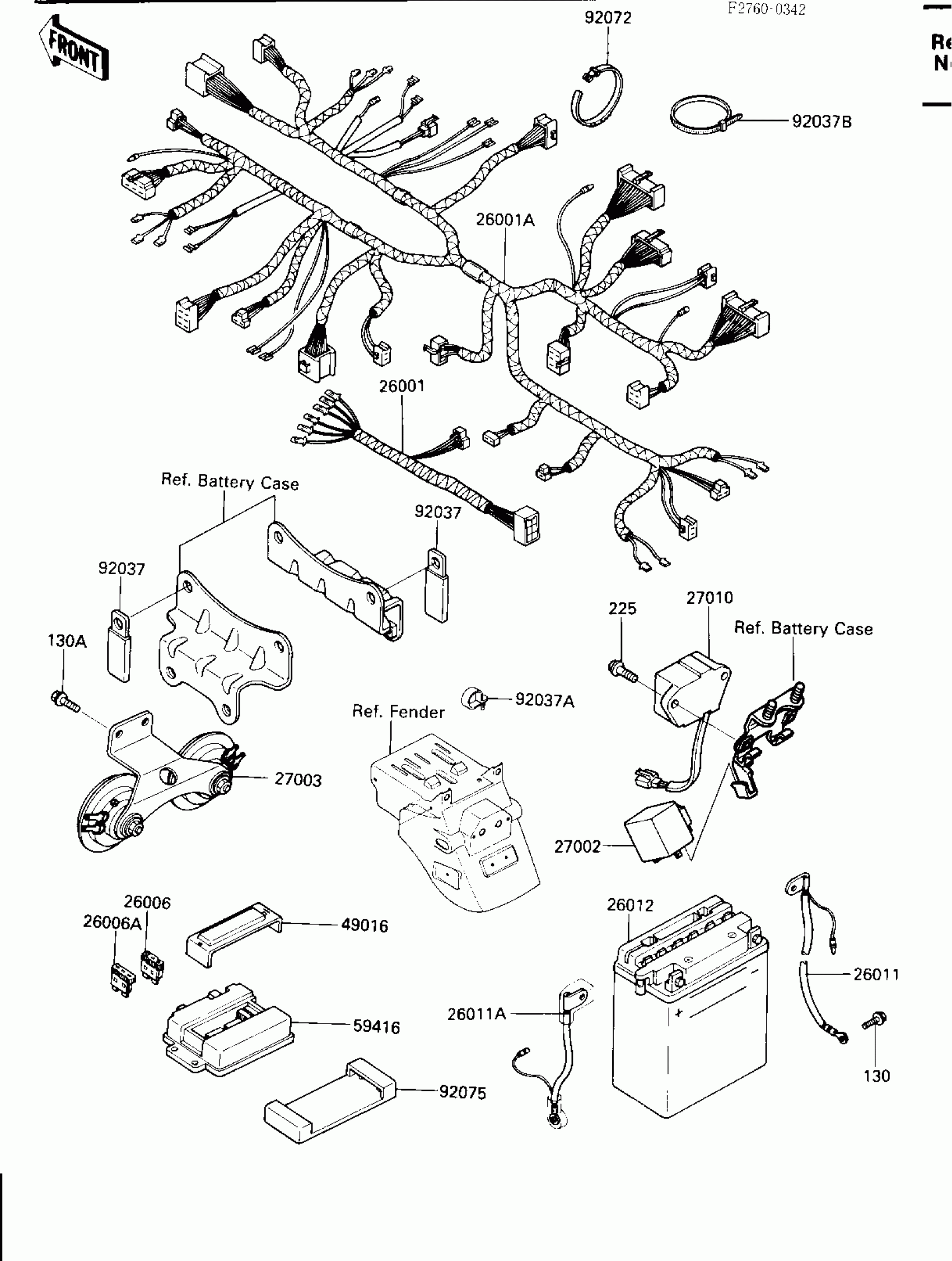

Kawasaki Ninja® 600RX CHASSIS ELECTRICAL EQUIPMENT Diagram

Description

Price

26001

HARNESS

26001-1726

$39.56

26001A

HARNESS,MAIN

26001-1733

Unavailable

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.96

26006A

FUSE,BLADE,10A,RED

26006-1007

$4.96

26011

WIRE-LEAD,BATTERY GROUND

26011-1195

Unavailable

26011A

WIRE-LEAD,BATTERY(+)

26011-1315

Unavailable

26012

26012-1210 (Canada)

26012-1132

$95.75

27002

RELAY-ASSY,TURN SIGNAL

27002-1060

$94.99

27003

HORN,DOUBLE

27003-1259

$202.30

27010

SWITCH,RESERVE LIGHTING

27010-1069

$203.13

49016

COVER-SEAL,FUSE

49016-1106

$8.66

59416

CASE-ELECTRIC,FUSE & RELAY BOX

59416-1052

$189.81

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP,SPEED,L=58

92037-1163

$6.57

92037B

CLAMP,L=200

92037-1576

$7.80

92072

BAND,L=123

92072-030

$5.00

92075

DAMPER,JUNCTION BOX

92075-1688

$14.36

130

BOLT-FLANGED,6X8

130B0608

Unavailable

130A

BOLT-FLANGED,6X12

130C0612

Unavailable

225

SCREW-PAN-WSP-CROS,6X20

225B0620

Unavailable
