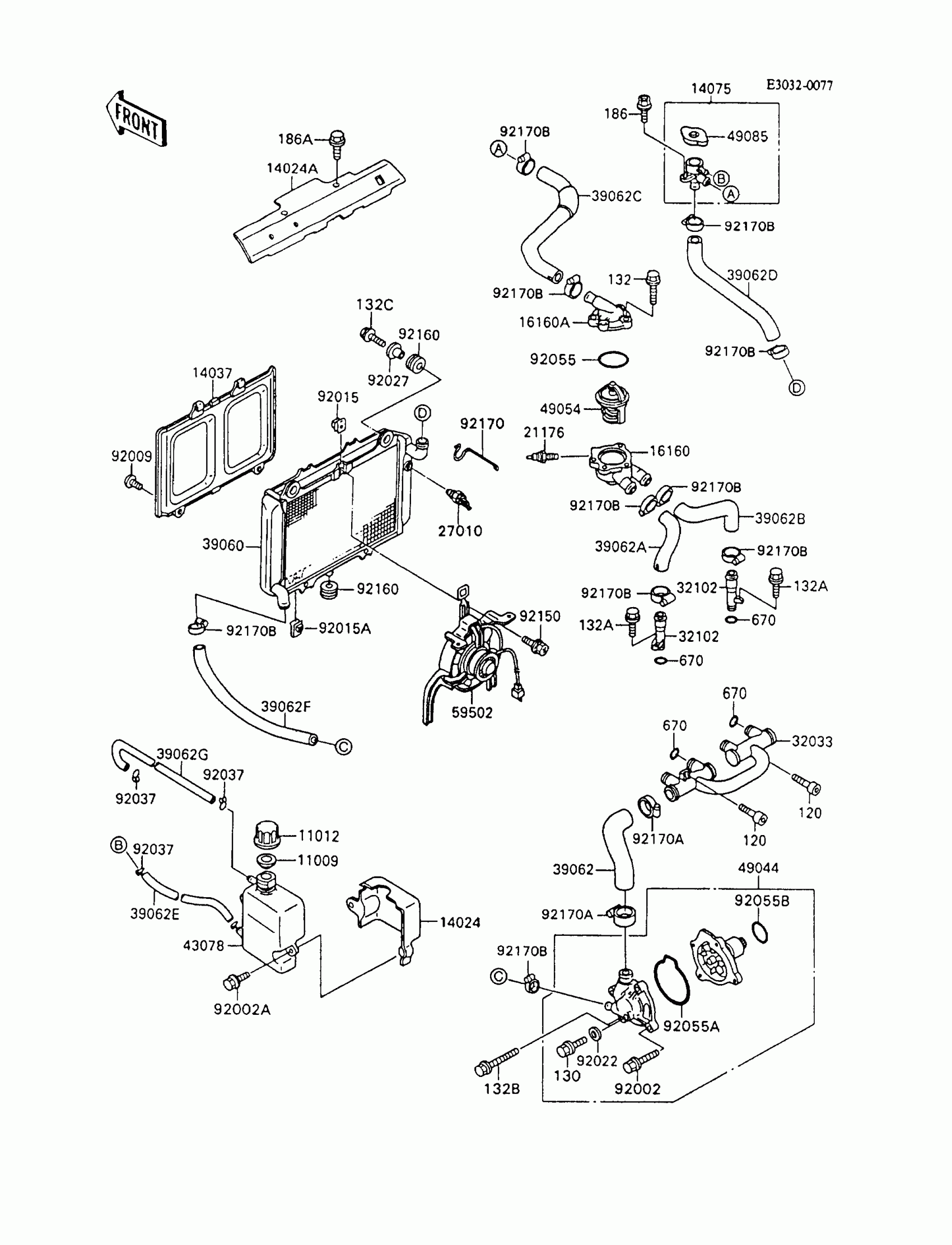

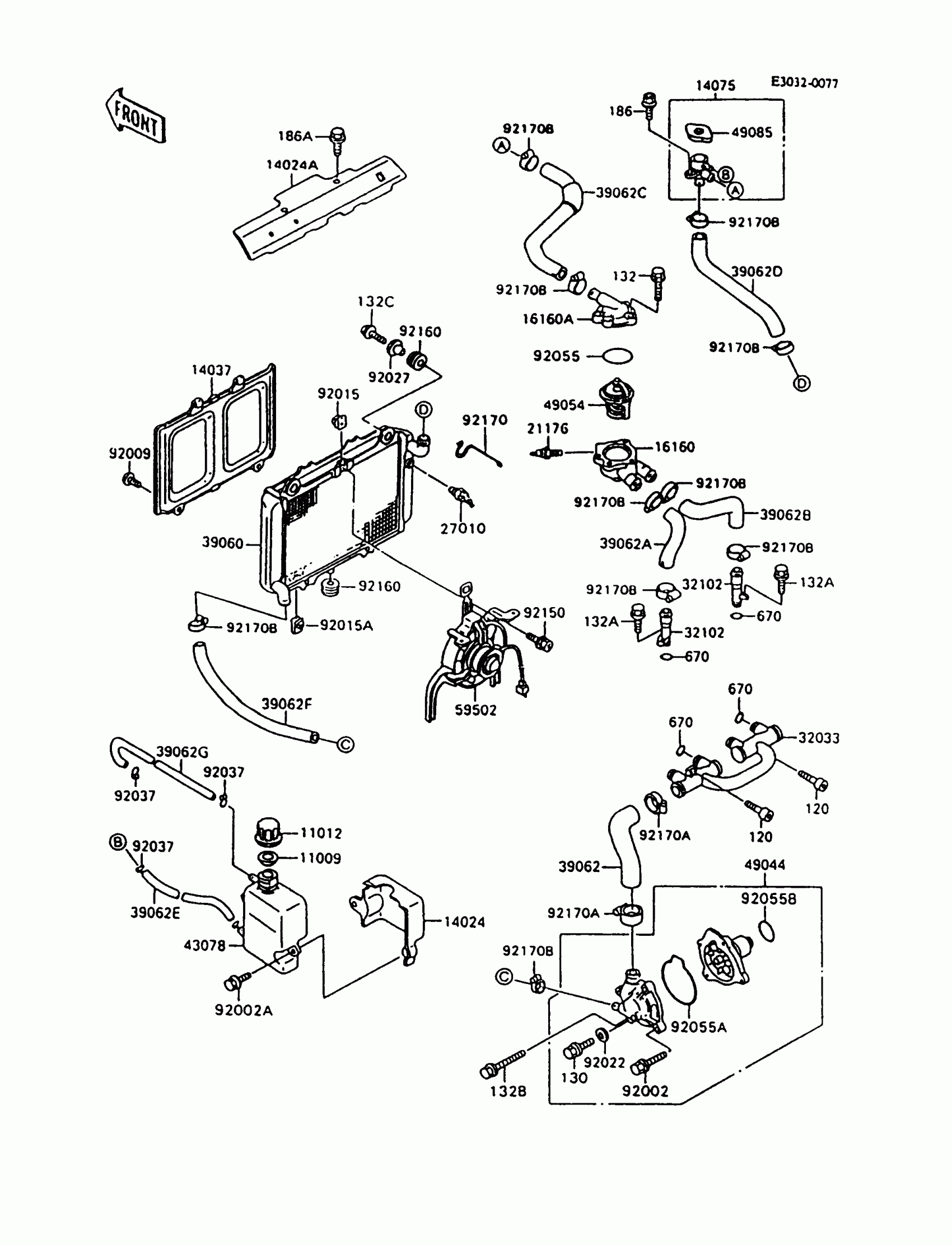

Kawasaki Ninja® 600R Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

14024

COVER,RESERVOIR

14024-1426

Unavailable

14024A

COVER

14024-1441

Unavailable

14037

SCREEN

14037-1091

Unavailable

14075

CAP-ASSY,RADIATOR

14075-1061

$151.97

16160

BODY,THERMOSTAT,LWR

16160-1112

$75.58

16160A

BODY,THERMOSTAT,UPP

16160-1129

Unavailable

21176

SENSOR,WATER

21176-1054

$75.00

27010

SWITCH,THERMOSTAT

27010-1304

$91.29

32033

PIPE

32033-1593

Unavailable

32102

PIPE

32102-1043

$40.22

39060

RADIATOR

39060-1085

Unavailable

39062

HOSE-COOLING,PUMP-CYLINDER

39062-1111

$38.86

39062A

HOSE-COOLING,HEAD-THERMOS,LH

39062-1235

$22.10

39062B

HOSE-COOLING,HEAD-THERMOS,RH

39062-1236

$30.51

39062C

HOSE-COOLING,CAP-THEROMOSTAT

39062-1237

Unavailable

39062D

HOSE-COOLING,CAP-RADIATOR

39062-1238

Unavailable

39062E

HOSE-COOLING,RESERVOIR-CAP

39062-1240

$21.83

39062F

HOSE-COOLING,RADIATOR-PUMP

39062-1256

$24.03

39062G

HOSE-COOLING,RESERVOIR

39062-1269

$21.83

43078

RESERVOIR

43078-1086

Unavailable

49044

PUMP-WATER

49044-1054

$389.16

49054

THERMOSTAT

49054-1059

$62.23

49085

CAP-ASSY-PRESSURE

49085-1066

$33.19

59502

FAN-ASSY

59502-1081

Unavailable

92002

BOLT,6X22

92002-1392

$4.19

92002A

BOLT,6X16

92002-1720

$3.85

92009

SCREW,TAPPING,6X16

92009-1436

$2.56

92015

NUT

92015-1487

$3.64

92015A

NUT,6MM

92015-1758

$5.15

92022

WASHER,6MM

92022-1976

$5.46

92027

COLLAR,FUEL TANK FITT

92027-1134

$7.83

92037

CLAMP,TUBE

92037-147

$5.61

92055

RING-O,44.7X2.4

92055-1279

$5.61

92055A

RING-O,WATER PUMP

92055-1315

$12.71

92055B

RING-O,33.2X2.4

92055-1424

$4.71

92150

BOLT,6X16

92150-1187

$5.69

92160

DAMPER

92160-1007

$4.18

92170

CLAMP

92170-1074

Unavailable

92170A

CLAMP,COOLING HOSE

92170-1284

$6.25

92170B

CLAMP,COOLING HOSE

92170-1285

$16.99

120

BOLT-SOCKET,6X12

120S0612

Unavailable

130

BOLT-FLANGED,6X10

130C0610

Unavailable

132

BOLT-FLANGED-SMALL

132G0620

Unavailable

132A

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

132B

BOLT-FLANGED-SMALL

132J0645

Unavailable

132C

BOLT-FLANGED-SMALL,8X25

132J0825

Unavailable

186

BOLT-UPSET-WP,6X14

186C0614

Unavailable

186A

BOLT-UPSET-WP,6X16

186C0616

Unavailable

670

O RING,16MM

670B2016

$1.04
