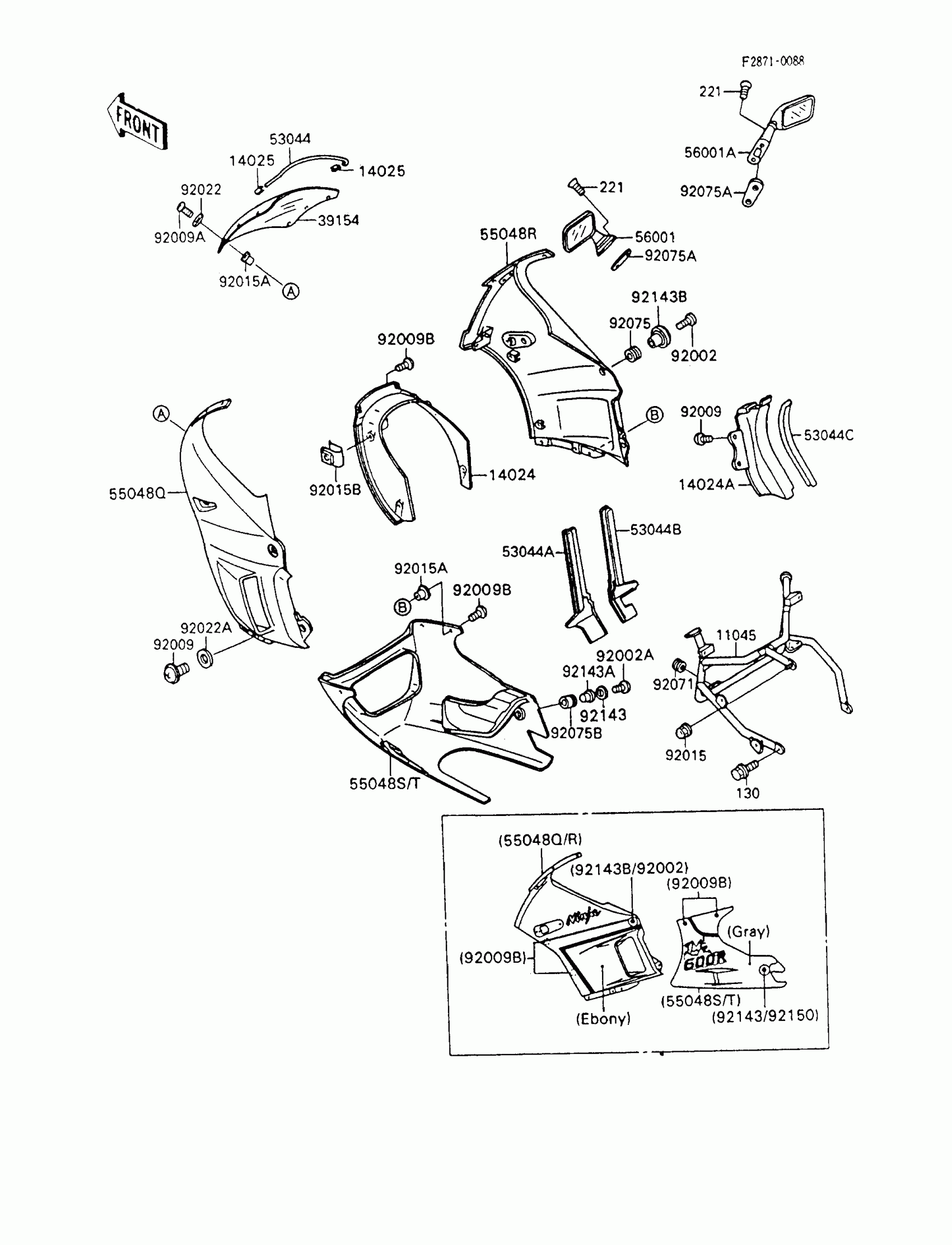

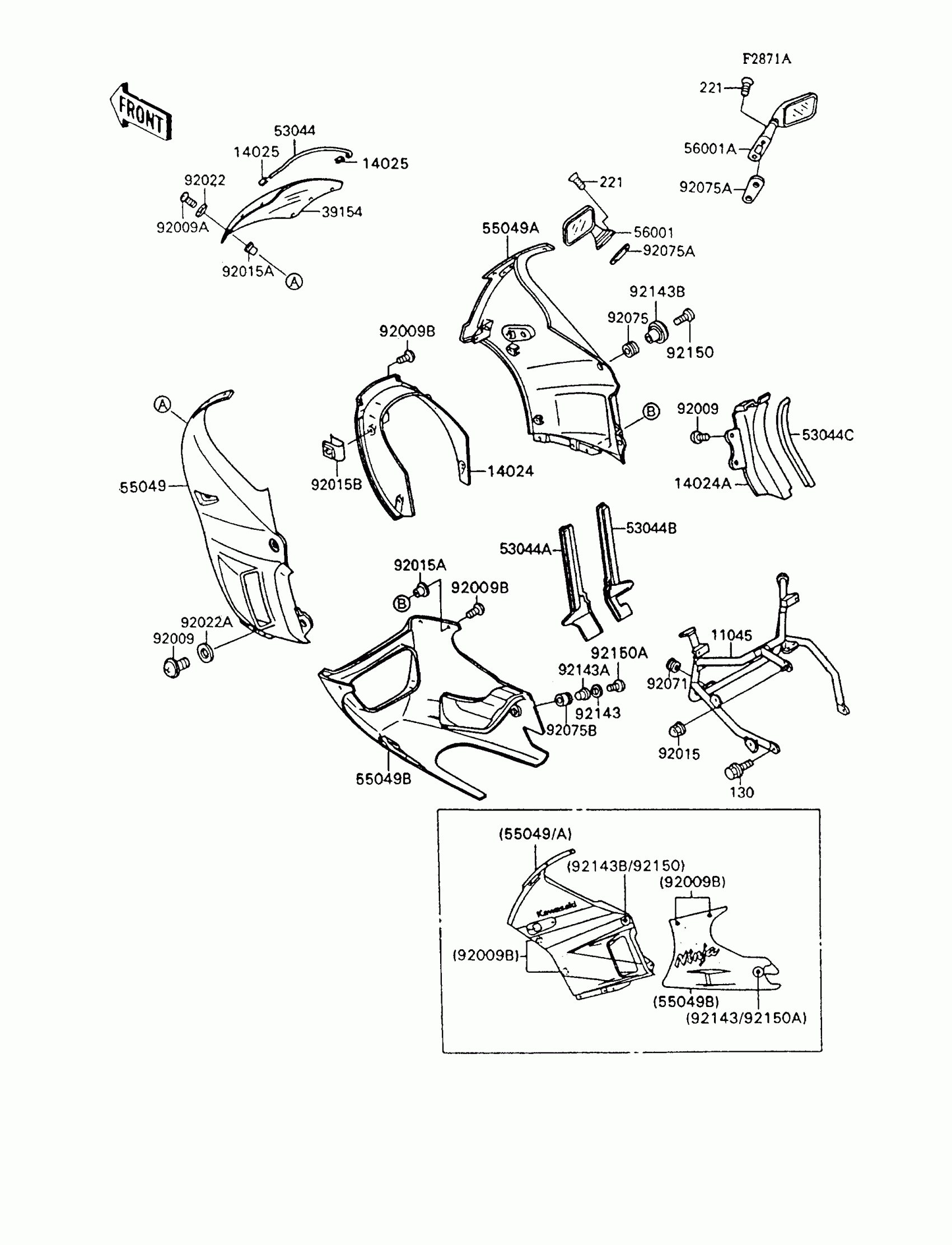

Kawasaki Ninja® 600R Cowling Diagram

#

Description
Price

11045

BRACKET,COWLING

11045-1538

Unavailable

14024

COVER,HEAD LAMP,EBONY

14024-1408-H8

Unavailable

14024A

COVER,COWLING,INNER,RH

14024-1538

Unavailable

14025

COVER,TRIM END

14025-1756

$5.80

39154

WINDSHIELD

39154-1107

Unavailable

53044

TRIM,WINDSHIELD

53044-1130

Unavailable

53044A

TRIM,COWLING,LH

53044-1193

Unavailable

53044B

TRIM,COWLING,RH

53044-1194

Unavailable

53044C

TRIM

53044-1198

$15.05

55048Q

COWLING.,UPP,LH,EBONY

55048-5330-H8

$570.69

55048R

COWLING.,UPP,RH,EBONY

55048-5331-H8

$611.33

55048S

COWLING.,LWR,P.G.GRAY

55048-5332-ST

Unavailable

56001

MIRROR-ASSY,LH

56001-1317

$105.13

56001A

MIRROR-ASSY,RH

56001-1318

$95.72

92002

BOLT,SOCKET,6X18,BLACK

92002-1514

$4.67

92002A

BOLT,CENTER STAND

92002-1954

$8.75

92009

SCREW,6X14

92009-1288

$2.99

92009A

SCREW,5X16,BLACK

92009-1301

$2.17

92009B

SCREW,5X20,BLACK

92009-1453

$3.03

92015

NUT,CAP,8MM,BLACK

92015-1174

$3.81

92015A

NUT,WELL,5MM

92015-1640

$5.58

92015B

NUT,5MM

92015-1710

$4.67

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$2.99

92022A

WASHER,6.5X16X1.0

92022-1654

$2.76

92071

GROMMET

92071-056

$3.25

92075

DAMPER

92075-1634

$3.57

92075A

DAMPER,MIRROR

92075-1929

$6.73

92075B

DAMPER

92075-1936

$4.81

92143

COLLAR,L=6.5,BLACK

92143-1086

$15.92

92143A

COLLAR,L=19.6

92143-1100

$5.95

92143B

COLLAR,BLACK

92143-1226

$9.13

130

BOLT-FLANGED,8X12,BLACK

130C0812

Unavailable

221

SCREW-CSK-CROSS

221C0630

Unavailable
