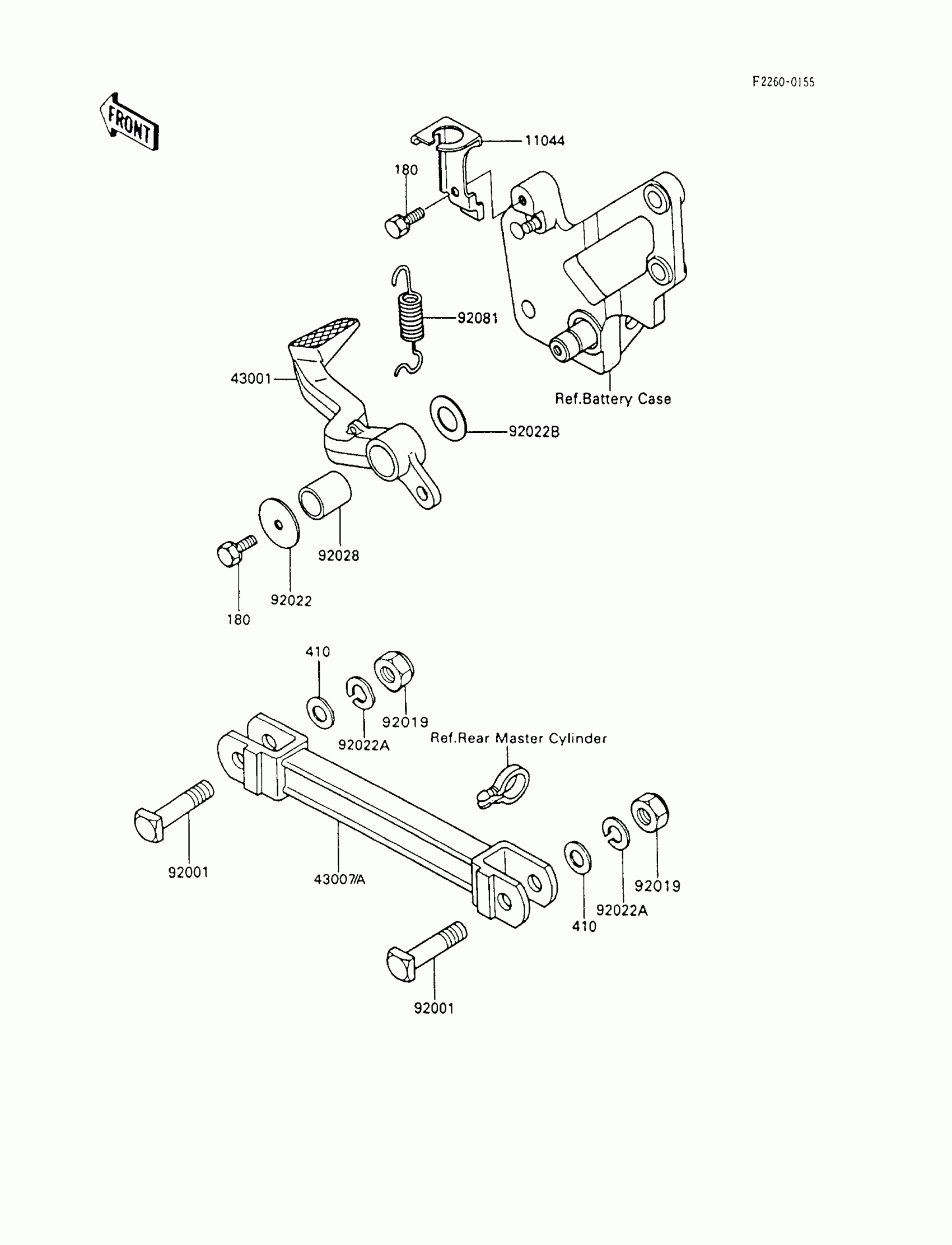

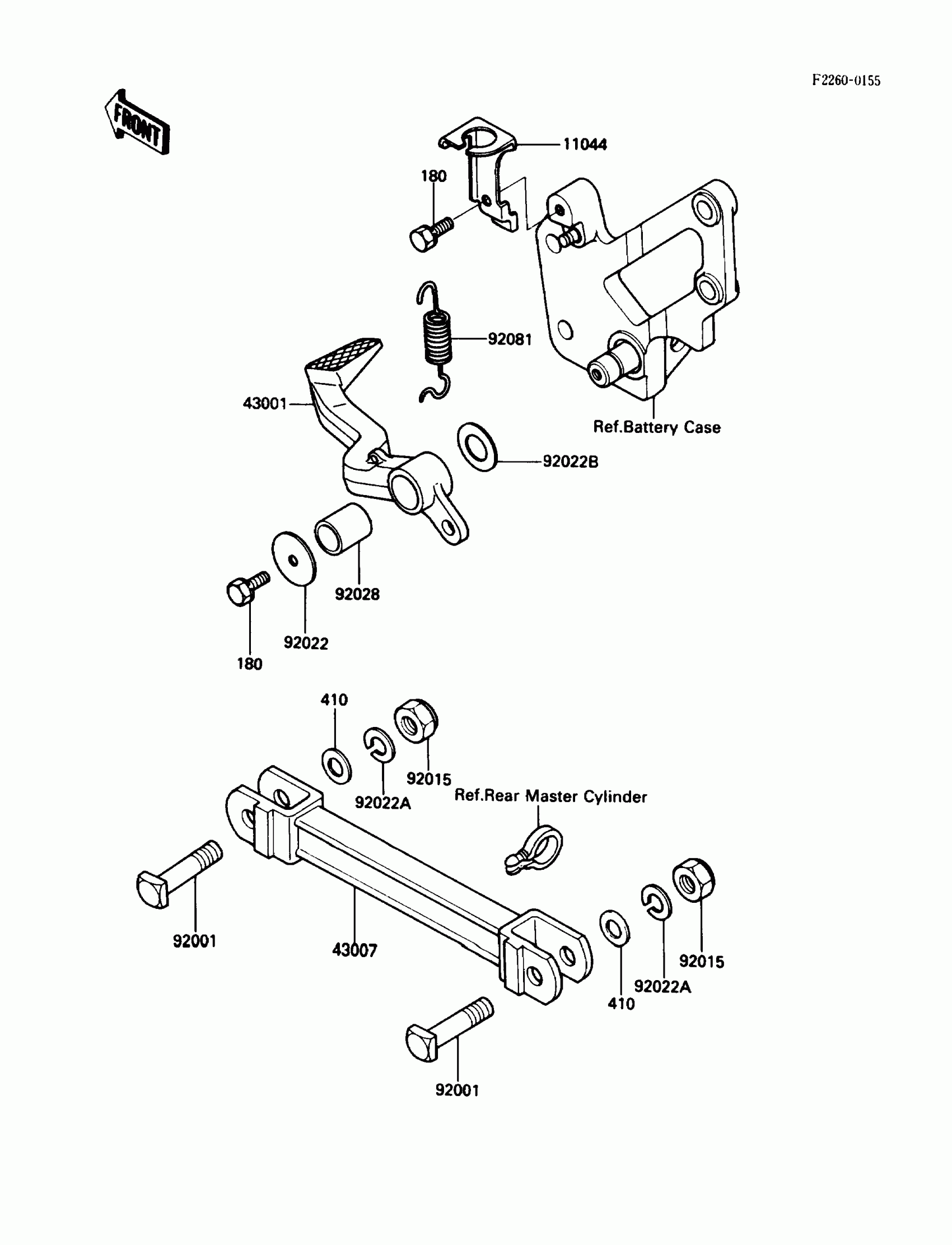

Kawasaki Ninja® 600R Brake Pedal/Torque Link Diagram

Description

Price

11044

BRACKET,RR BRAKE SWITCH

11044-1107

$10.24

43001

LEVER-BRAKE,PEDAL

43001-1224

$106.18

43007

ROD-TORQUE

43007-1133

$89.46

92001

BOLT,10X37

92001-1307

$5.97

92015

NUT,LOCK,10MM

92019-021

$4.59

92022

WASHER,7X28X1.6

92022-1282

$3.57

92022A

WASHER,SPRING,10MM

92022-1540

$3.14

92022B

WASHER,15.3X24X1

92022-326

$2.99

92028

BUSHING,BRAKE PEDAL

92028-1282

$13.39

92081

SPRING,BRAKE PEDAL

92081-1833

$7.76

180

BOLT-UPSET-WS

180B0614

Unavailable

410

WASHER PLAIN 10MM

410B1000

Unavailable
