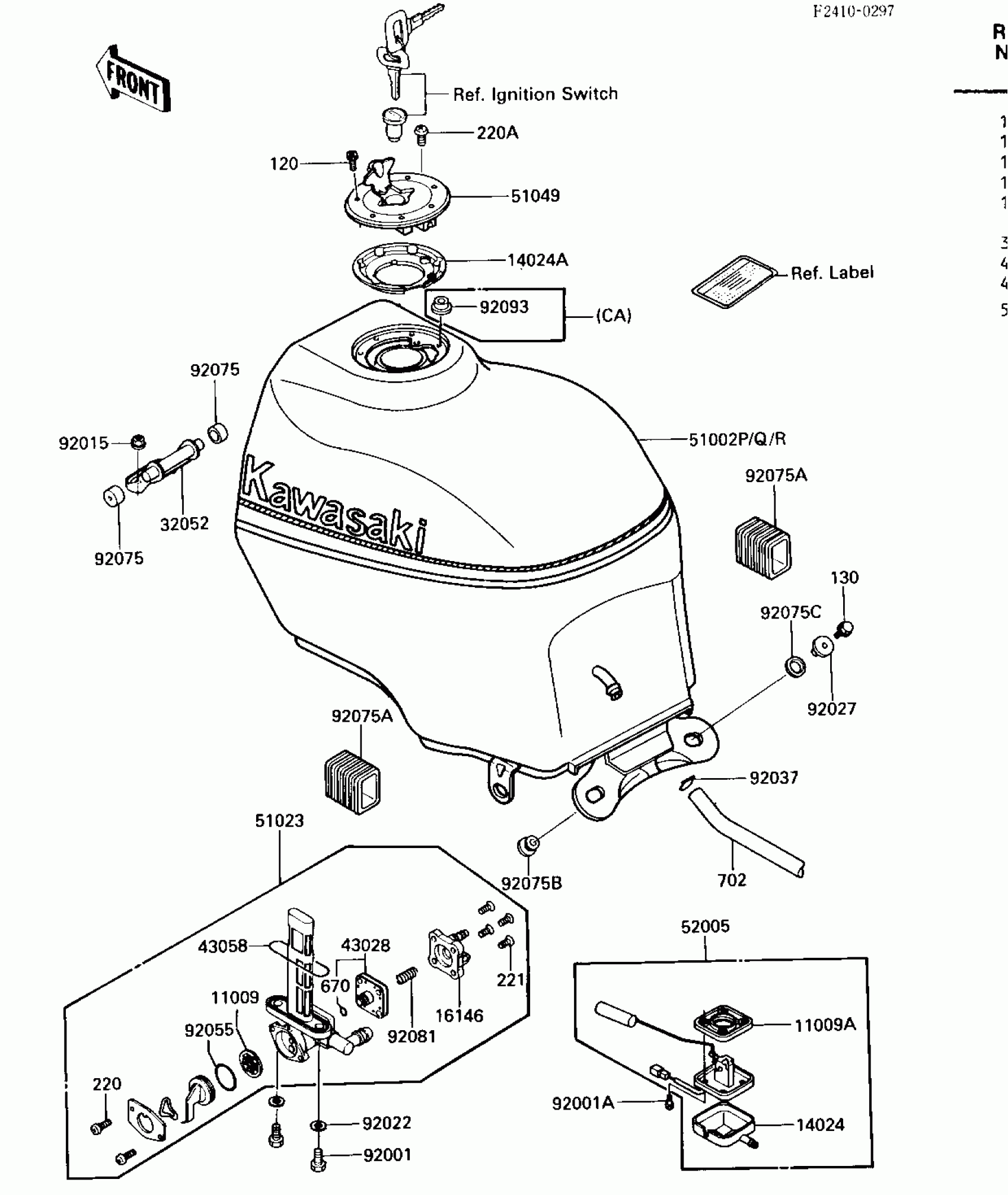

Kawasaki Ninja® 600 FUEL TANK Diagram

#

Description
Price

11009

GASKET,TAP VALVE

11009-1188

$4.54

11009A

GASKET,FUEL GAUGE

11009-1656

Unavailable

14024

COVER,FUEL GAUGE

14025-1536

Unavailable

14024A

COVER,TANK CAP

14025-1913

$19.98

16146

COVER ASSY,FUEL TAP

16146-1009

Unavailable

32052

BRACKET-TANK

32052-1202

Unavailable

43028

DIAPHRAGM

43028-1033

$21.24

43058

DIAPHRAGM

43028-1033

$21.24

51002P

TANK-COMP-FUEL,RED/GR

51002-5306-X5

$784.15

51002Q

TANK-COMP-FUEL,RED/GR

51002-5307-X5

$616.23

51002R

TANK-COMP-FUEL,BLUE/WHITE (Can

51002-5308-X7

Unavailable

51023

TAP-ASSY,FUEL

51023-1186

$150.44

51049

CAP-TANK,FUEL

51049-1079

$136.32

52005

GAUGE,FUEL

52005-1071

Unavailable

92001

BOLT,6X20

92001-1091

$3.12

92001A

BOLT,FUEL GAUGE

92001-1705

Unavailable

92015

NUT,FLANGED,6MM

92015-1367

$2.93

92022

WASHER-PLAIN

92022-183

$3.12

92027

COLLAR,L=13.1

92027-251

Unavailable

92037

CLAMP,TUBE

92037-010

$3.12

92055

RING-O,TAP LEVER

92055-1085

$4.01

92075

DAMPER,FUEL TANK,FR

92075-1115

$5.21

92075A

DAMPER,FUEL TANK

92075-1700

$16.80

92075B

RUBBER,FENDER COVER

92075-174

$3.80

92075C

DAMPER,FEMALE

92075-175

$3.49

92081

SPRING,TAP DIAPHRAGM

92081-1240

$3.10

92093

SEAL,FUEL TANK CAP

92093-1030

$6.18

120

BOLT-SOCKET,5X12

120S0512

Unavailable

130

BOLT-FLANGED,6X25

130J0625

Unavailable

220

SCREW-PAN-CROS,3X8

220B0308

$0.63

220A

SCREW-PAN-CROSS

220C0508

Unavailable

221

SCREW-CSK-CROS,4X14

221B0414

Unavailable

670

O RING,4MM

670B1504

$3.27

702

TUBE-BREATHER (BULK)

702A071000

$10.53
