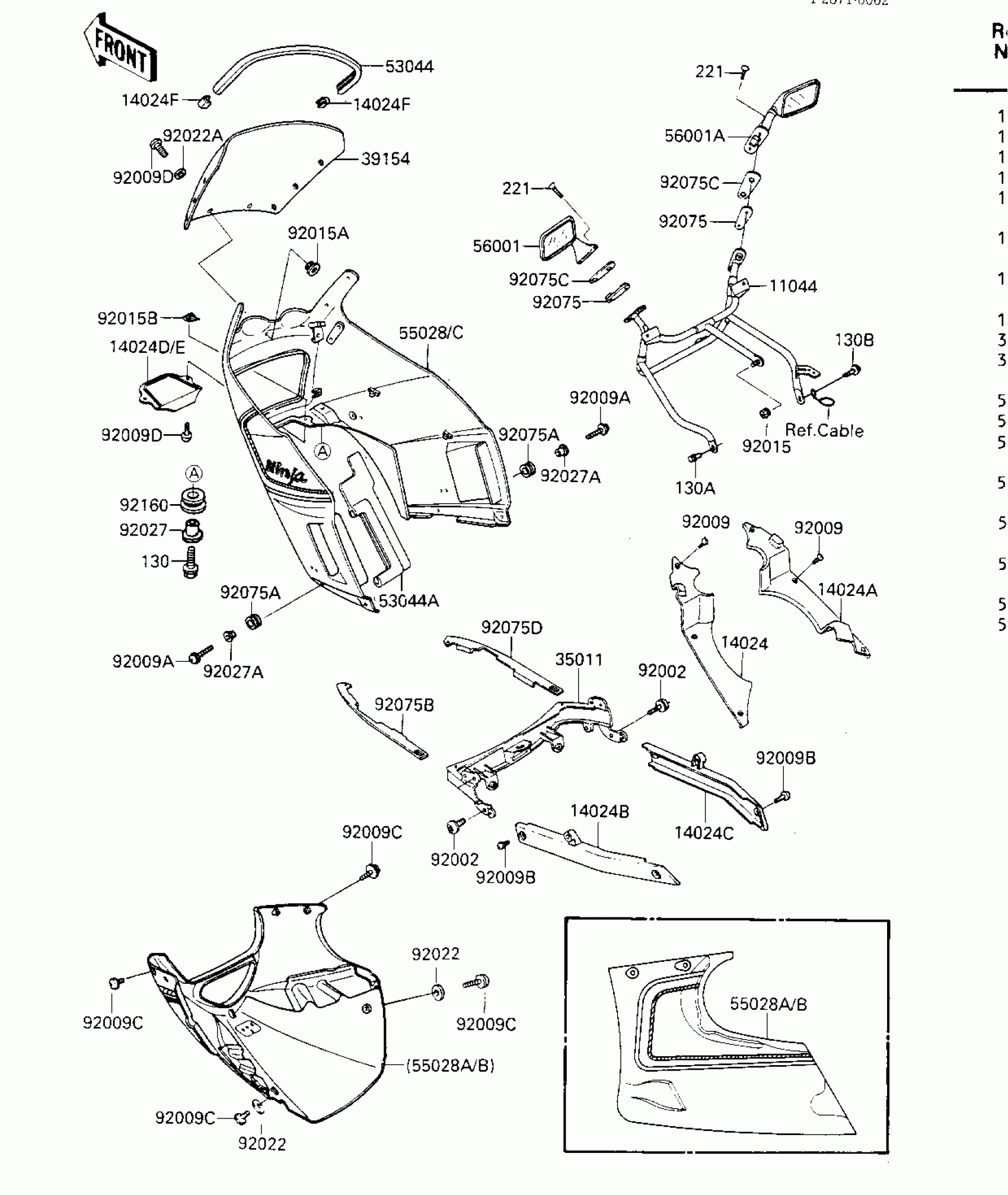

Kawasaki Ninja® 600 FAIRING Diagram

#

Description
Price

11044

BRACKET,COWLING,UPP

11044-1076

Unavailable

14024

COVER,UPP,INNER,LH

14025-1726

Unavailable

14024A

COVER,UPP,INNER,RH

14025-1727

Unavailable

14024B

COVER,SIDE PANEL,LH,S

14025-1732-X3

Unavailable

14024C

COVER,SIDE PANEL,RH,S

14025-1733-X3

Unavailable

14024D

COVER,HEAD LAMP BULB,P.A. (Can

14025-1735-R1

Unavailable

14024E

COVER,HEAD LAMP VALVE

14025-1735-6L

Unavailable

14024F

COVER,TRIM END

14025-1756

$6.05

35011

STAY,COWLING,LWR

35011-1246-CE

$264.78

39154

WINDSHIELD

39154-1105

Unavailable

53044

TRIM,WINDSHIELD

53044-1120

Unavailable

53044A

TRIM

53044-1135

Unavailable

550280

COWLING,UPP,RED/GRAY

55028-5320-X5

$1,341.22

55028P

COWLING.,LWR,RED/GRAY

55048-5290-X5

$622.17

55028S

55048-5230-X7 (Canada)

55028-5330-X7

Unavailable

55028T

55048-5281-R1 (Canada)

55028-5346-X7

Unavailable

56001

MIRROR-ASSY,LH

56001-1250

Unavailable

56001A

MIRROR-ASSY,RH

56001-1251

Unavailable

92002

BOLT

92002-1588

$7.49

92009

SCREW,TAPPING,5X14

92009-1197

$3.12

92009A

SCREW,6X22,BLACK

92009-1251

$5.23

92009B

SCREW,6X14,WHITE

92009-1287

$2.10

92009C

SCREW,6X14

92009-1288

$3.12

92009D

SCREW,5X16,BLACK

92009-1654

$2.51

92015

NUT,FLANGED,8MM

92015-1408

$4.27

92015A

NUT,5MM,COWLING

92015-1343

$3.65

92015B

NUT,5MM

92015-1710

$4.93

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.53

92022A

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.12

92027

COLLAR,FUEL TANK FITT

92027-1134

$8.16

92027A

COLLAR,L=9.1,BLACK

92027-1935

$5.10

92075

DAMPER,MIRROR

92075-1492

$7.95

9275A

DAMPER

92075-1634

$3.72

92075B

DAMPER,COWLING

92075-1707

$16.92

92075C

DAMPER,MIRROR

92075-1745

$7.95

92075D

DAMPER

92075-1759

Unavailable

92160

DAMPER

92160-1007

$4.37

130

BOLT-FLANGED

130C0625

Unavailable

130A

BOLT-FLANGED,8X12,BLACK

130C0812

Unavailable

130B

BOLT-FLANGED,8X16,BLACK

130C0816

Unavailable

221

SCREW-CSK-CROSS

221C0630

Unavailable
