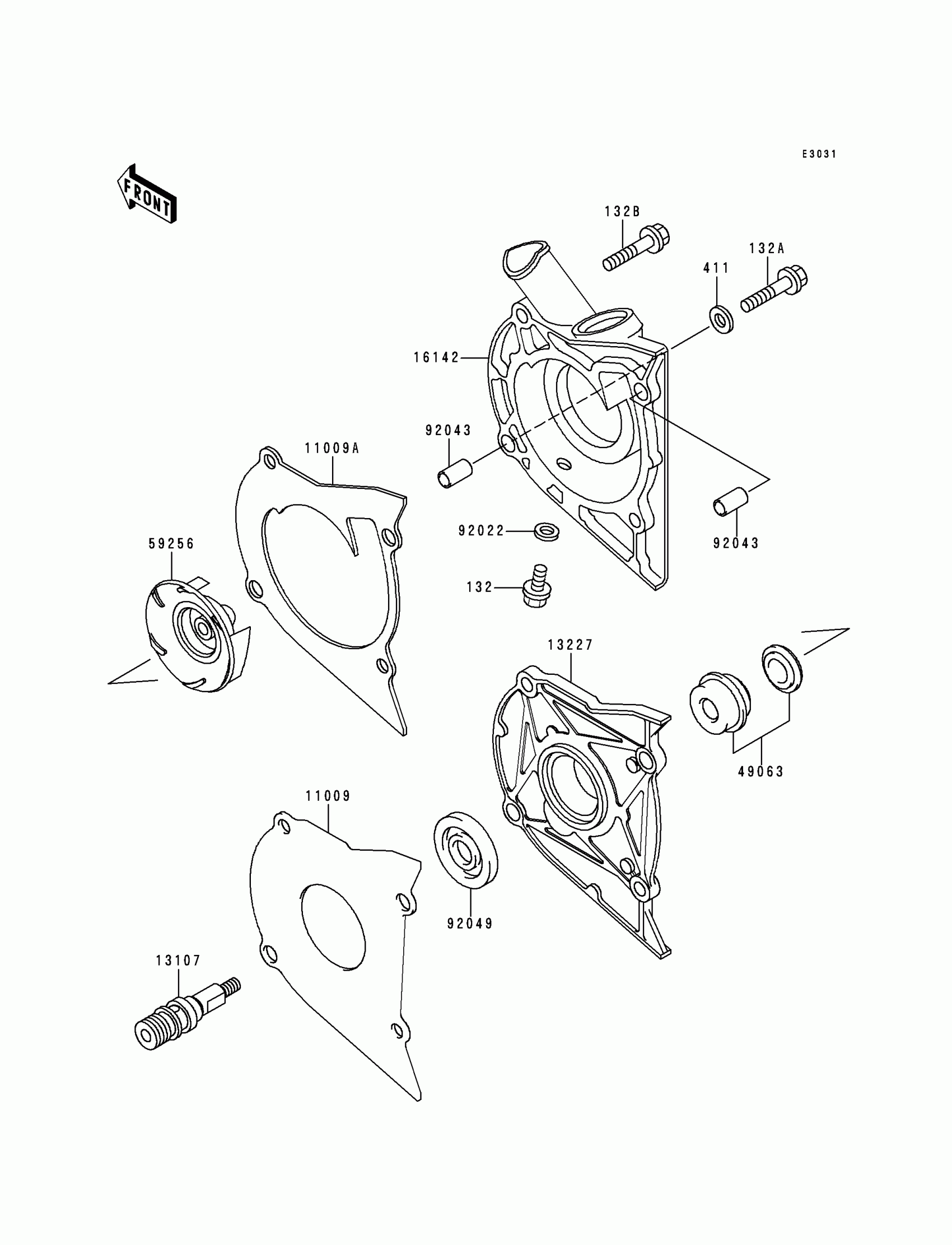

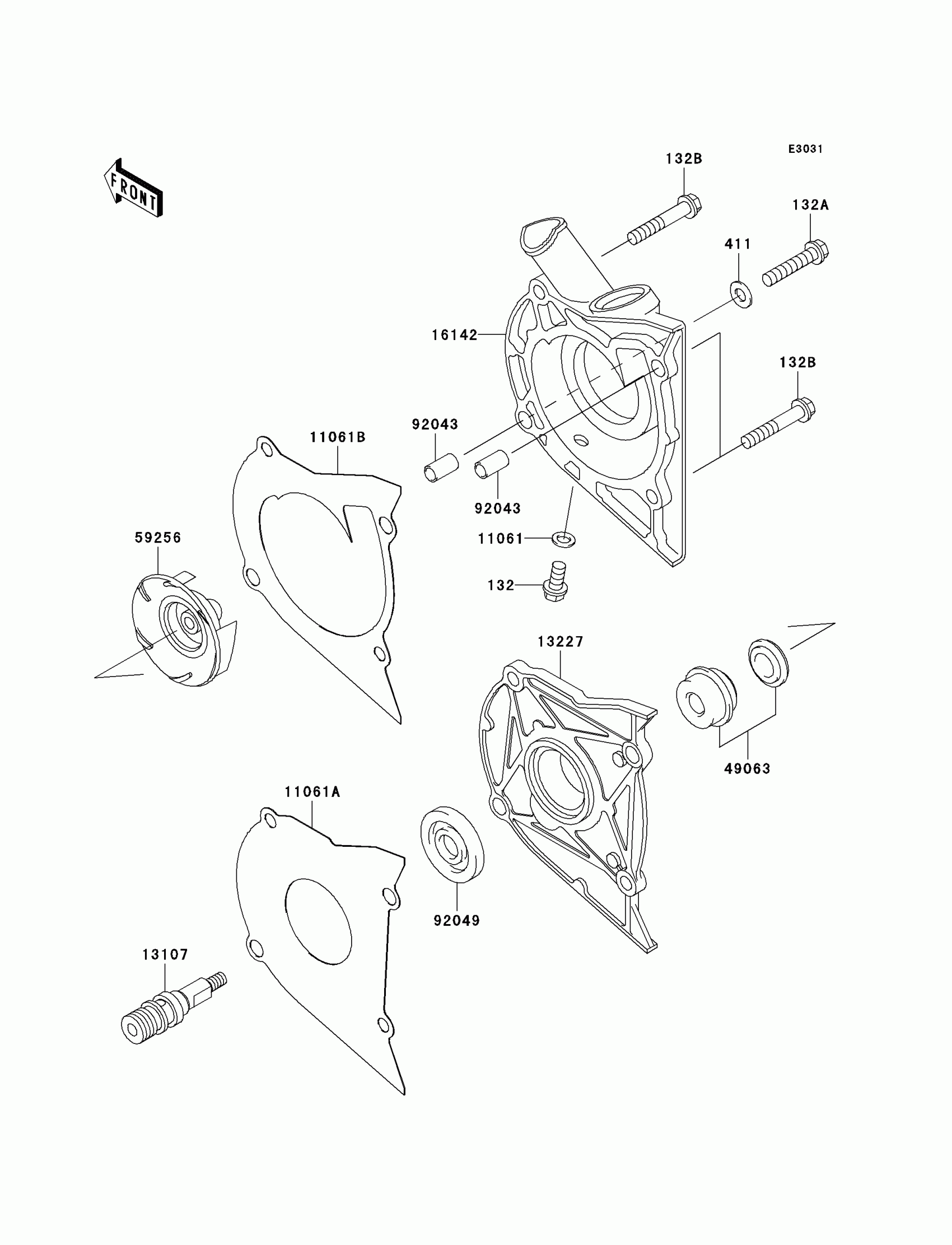

Kawasaki Ninja® 500R Water Pump Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

132B

BOLT-FLANGED-SMALL,6X35

132J0635

Unavailable

411

WASHER PLAIN

411F0600

$0.95

11009

GASKET,PUMP HOUSING

11009-1838

Unavailable

11009A

GASKET,PUMP COVER

11009-1839

Unavailable

13107

SHAFT,IMPELLER

13107-1203

$49.94

13227

HOUSING,WATER PUMP

13227-1064

$89.47

16142

COVER-PUMP

16142-1073

$171.59

49063

SEAL-MECHANICAL

49063-1054

$12.56

59256

IMPELLER

59256-1060

$32.75

92022

WASHER,6.2X11X1

92022-304

$2.76

92043

PIN,6.2X8X14

92043-1263

$0.46

92049

SEAL-OIL,SC12365

92049-1215

$12.07
