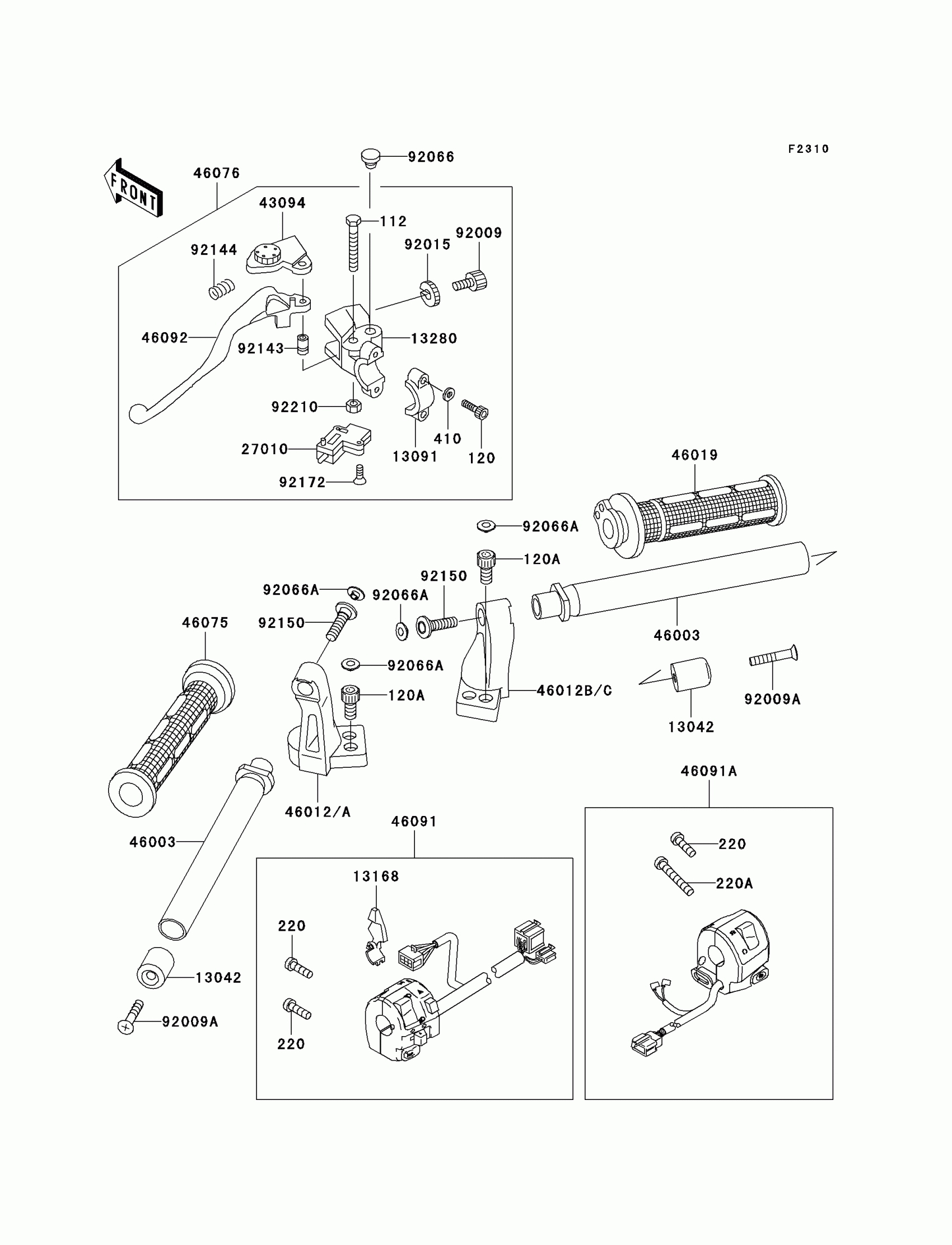

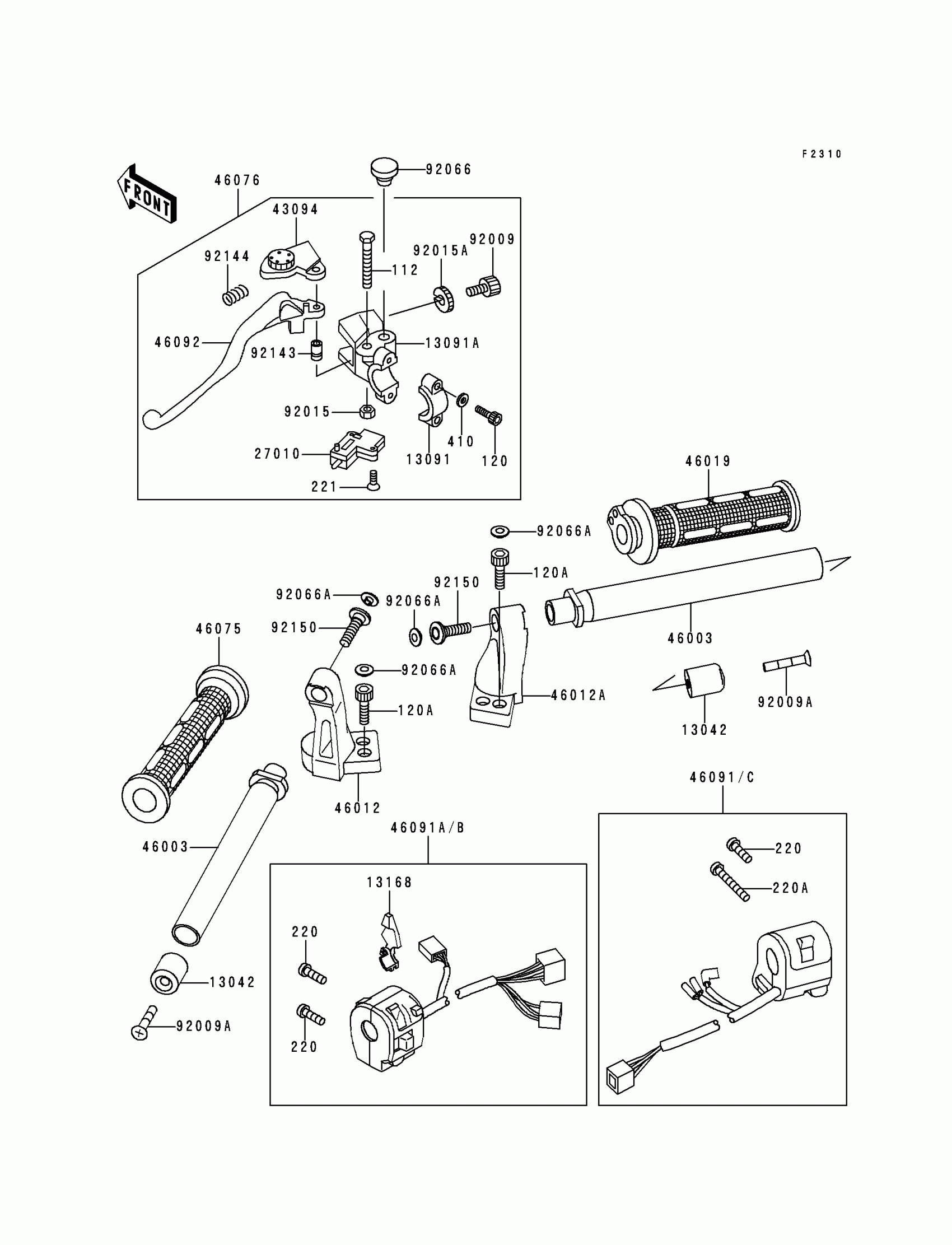

Kawasaki Ninja® 500R Handlebar Diagram

#

Description
Price

112

BOLT-UPSET,6X40

112C0640

Unavailable

120

BOLT-SOCKET,6X20

120S0620

Unavailable

120A

BOLT-SOCKET

120S0816

Unavailable

220

SCREW-PAN-CROS,5X25

220C0525

$2.66

220A

SCREW-PAN-CROS,5X40

220C0540

Unavailable

221

SCREW-CSK-CROS

221C0316

$3.24

410

WASHER-PLAIN-SMALL,6MM,BLACK

410F0600

Unavailable

13042

WEIGHT,HANDLE

13042-1069

$31.64

13091

HOLDER,CLUTCH LEVER

13091-1624

$36.55

13091A

HOLDER,CLUTCH LEVER

13091-1652

Unavailable

13168

LEVER,CHOKE

13168-1516

$7.46

27010

SWITCH,CLUTCH,BLACK

27010-1094

$25.31

43094

ADJUSTER,CLUTCH LEVER

43094-1053

$36.81

46003

HANDLE

46003-1390

$69.68

46012

HOLDER-HANDLE,LH,BLACK

46012-1248-10

$141.56

46012A

HOLDER-HANDLE,RH,BLACK

46012-1249-10

$155.47

46019

GRIP-ASSY,THROTTLE

46019-1077

$33.35

46075

GRIP,LH

46075-1088

$14.41

46076

LEVER-ASSY-GRIP,CLUTCH

46076-1165

$74.99

46091B

HOUSING-ASSY-CONTROL,LH

46091-1671

$210.25

46091C

HOUSING-ASSY-CONTROL,RH

46091-1672

$157.71

46092

LEVER-GRIP,CLUTCH

46092-1161

$17.65

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

$11.50

92009A

SCREW,8X45

92009-1257

$3.57

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

$7.54

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

$3.54

92066A

PLUG

92066-1216

$3.54

92143

COLLAR

92143-1379

$7.25

92144

SPRING

92144-1467

$4.88

92150

BOLT,8X30

92150-1425

$4.92
