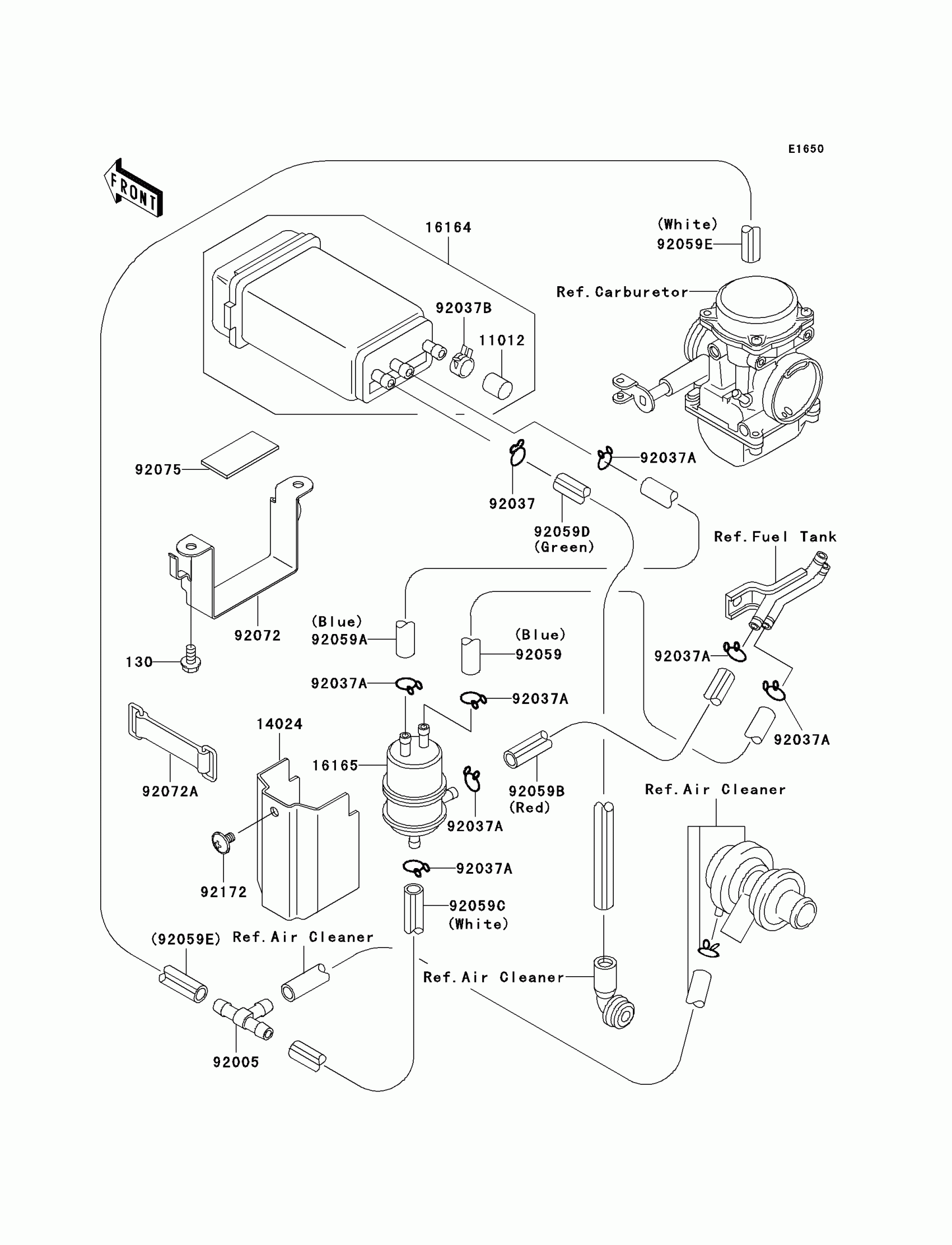

Kawasaki Ninja® 500R Fuel Evaporative System(D6F/D7F)(CA) Diagram

Description

Price

130

BOLT-FLANGED,6X12

130AA0612

$0.73

11012

CAP,CANISTER

11012-1388

$8.31

14024

COVER,SEPARATOR

14024-1399

$36.19

16164

CANISTER

16164-1054

$132.79

16165

SEPARATOR

16165-1001

$81.73

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92037

CLAMP-HOSE

92037-1104

$1.27

92037A

CLAMP,TUBE

92037-147

$5.84

92037B

CLAMP,CANISTER

92037-1512

$5.71

92059

TUBE,5X10X170,BLUE

92059-1496

Unavailable

92059A

TUBE,5X10X320,BLUE

92059-1499

Unavailable

92059B

TUBE,5X10X250,RED

92059-1809

Unavailable

92059C

TUBE,5X10X380,WHITE

92059-1824

$20.29

92059D

TUBE,7X12X410,GREEN

92059-1825

$17.07

92059E

TUBE,5X10X160,WHITE

92059-1826

$32.75

92072

BAND,CANISTER

92072-1216

$19.68

92072A

BAND,L=50

92072-1419

$12.72

92075

DAMPER

92075-1830

$4.92

92172

SCREW,6X10

92172-0005

$2.00
