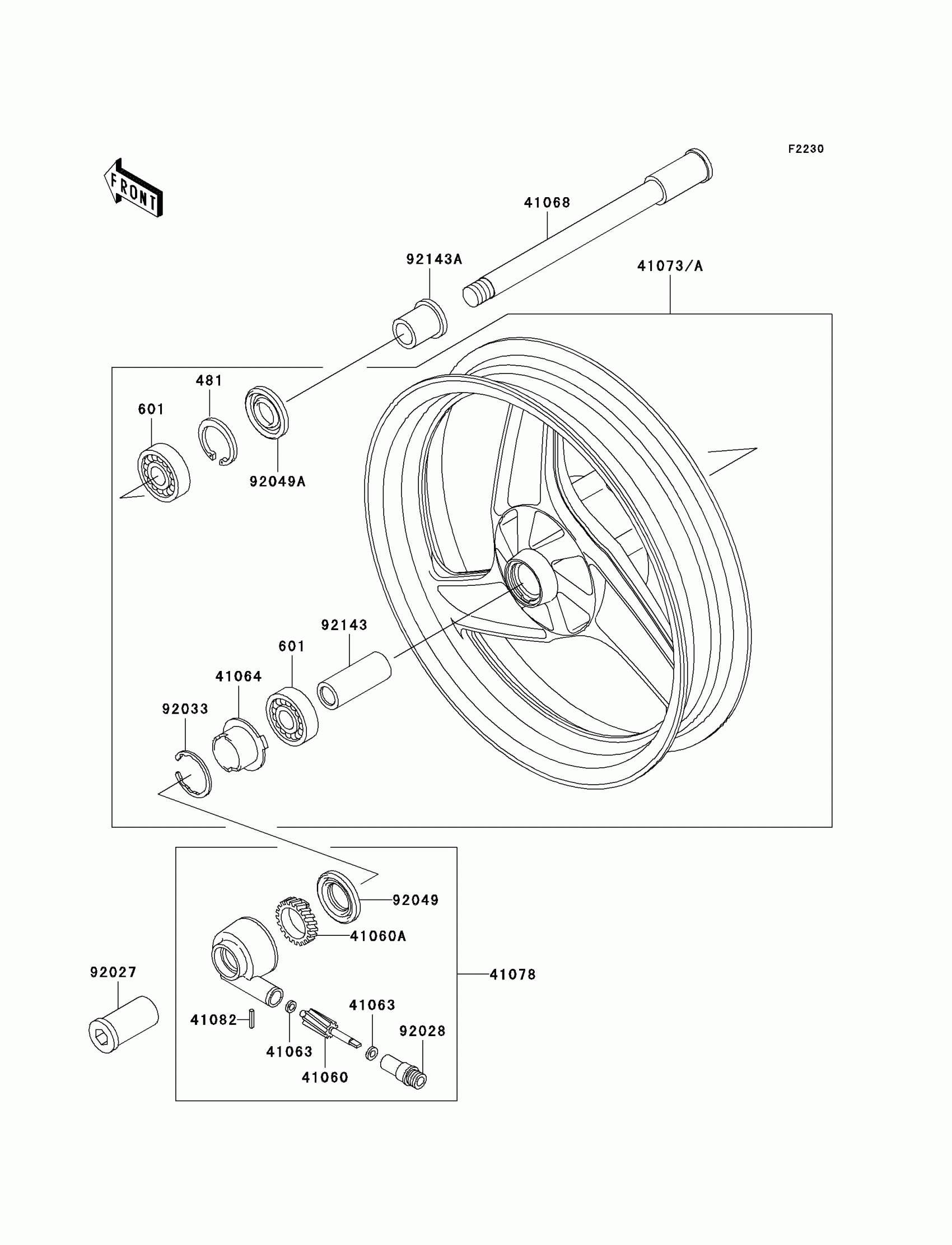

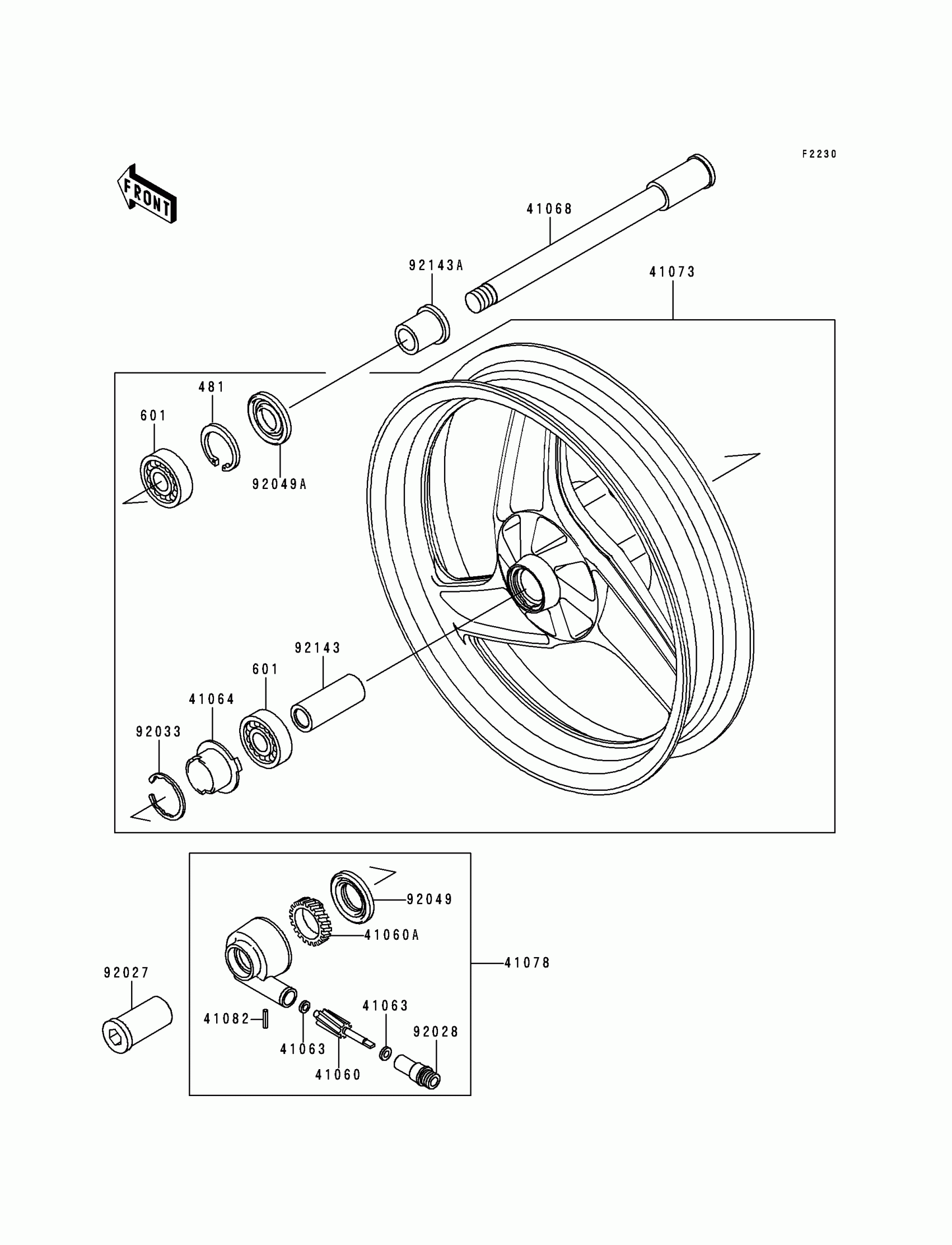

Kawasaki Ninja® 500R Front Wheel Diagram

Description

Price

481

CIRCLIP-TYPE-C,35MM

481J3500

$1.42

601

BEARING-BALL

601B6202UU

$17.77

41060

GEAR-METER SCREW,9T

41060-1123

$19.10

41060A

GEAR-METER SCREW,23T

41060-1124

$31.48

41063

WASHER,5.1X9X0.4

41063-001

$4.17

41064

RECEIVER-SPEEDOMETER

41064-1006

$11.33

41068

AXLE,FR

41068-1175

$74.87

41073

WHEEL-ASSY,FR,G.GRAY

41073-1543-GE

$962.84

41078

CASE-ASSY-METER GEAR

41078-1068

$121.46

41082

PIN,SPRING

41082-001

$3.53

92027

COLLAR,FR AXLE,L=36.5

92027-1726

$25.36

92028

BUSHING,SPEEDOMETER

92028-1066

$8.59

92033

RING-SNAP,42MM

92033-1041

$4.64

92049

SEAL-OIL,BJN30427-C3

92049-1057

$7.08

92049A

SEAL-OIL,MH20354.5

92049-1176

$14.24

92143

COLLAR,15.1X20X70

92143-1185

$16.93

92143A

COLLAR,FR AXLE,L=24

92143-1187

$18.02
