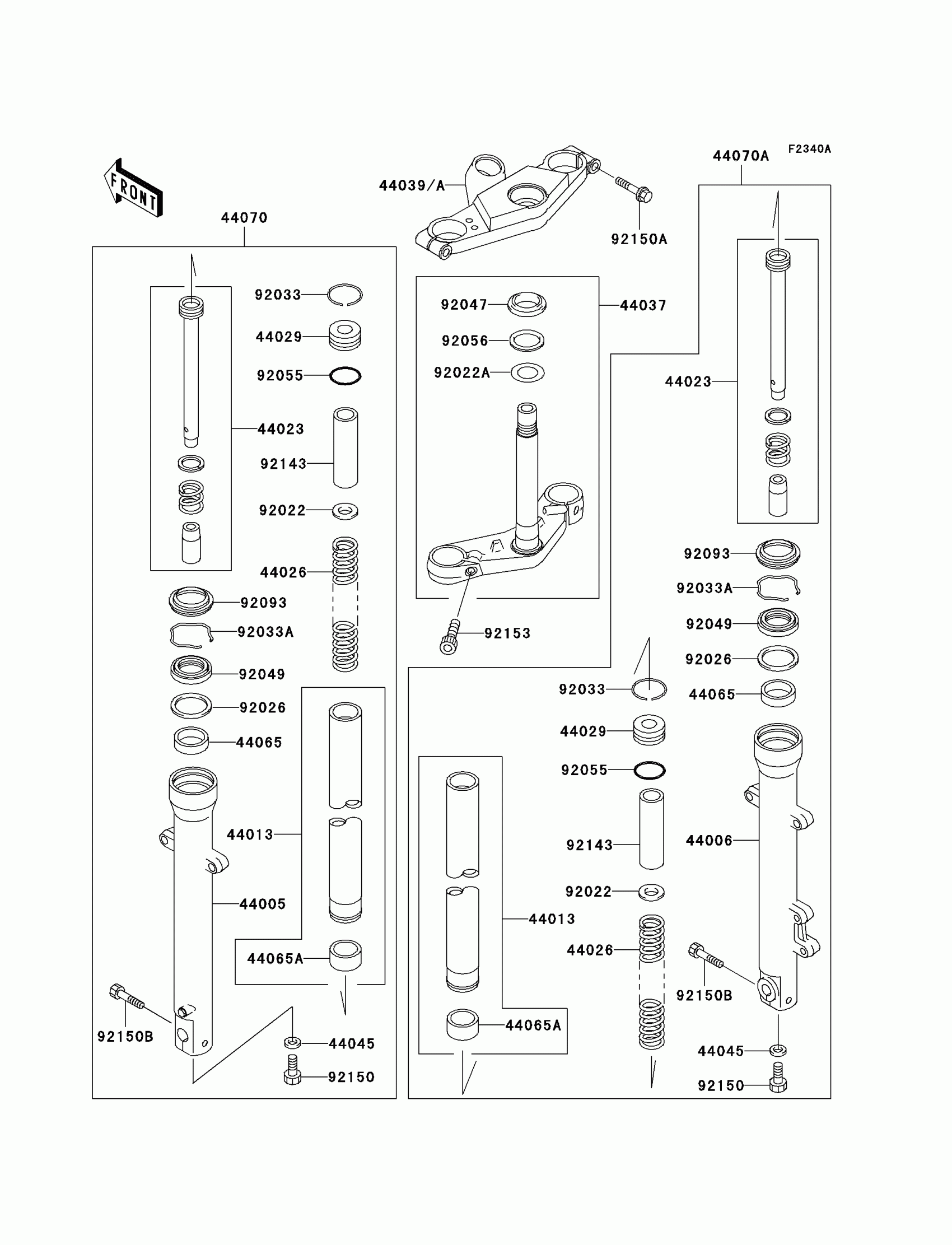

Kawasaki Ninja® 500R Front Fork(D7F-D9F) Diagram

#

Description
Price

44005

PIPE-LEFT FORK OUTER

44005-1330

$458.21

44006

PIPE-RIGHT FORK OUTER

44006-1330

$458.21

44013

PIPE-FORK INNER

44013-1394

$332.76

44023

CYLINDER-COMP-FORK

44023-1092

$131.92

44026

SPRING-FRONT FORK

44026-1555

$75.68

44029

SEAT-FORK SPRING

44029-1127

$45.01

44037

HOLDER-FORK UNDER

44037-1319

$395.48

44039A

HOLDER-FORK UPPER,BLACK

44039-1246-18R

$314.54

44045

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

44065

BUSHING-FRONT FORK

44065-1109

$19.05

44065A

BUSHING-FRONT FORK,INNER PIPE

44065-1110

$19.86

44070

DAMPER-ASSY,FORK,LH

44070-1286

$1,041.96

44070A

DAMPER-ASSY,FORK,RH

44070-1287

$1,041.96

92022

WASHER

92022-1879

$4.42

92022A

WASHER,30.5X50X0.6

92022-231

$4.17

92026

SPACER,FORK

92026-1443

$6.55

92033

RING-SNAP

92033-1236

$5.64

92033A

RING-SNAP

92033-1286

$7.88

92047

RACE,STEERING STEM BEARING

92047-012

$14.20

92049

SEAL-OIL,FORK OUTER

92049-1421

$17.82

92055

RING-O,FORK SPRING SEAT

92055-1384

$3.81

92056

SEAL-OIL,STEERING STEM

92056-003

$6.75

92093

SEAL,FORK OUTER

92093-1367

$17.44

92143

COLLAR,FORK,L=100

92143-1682

$9.27

92150

BOLT,SOCKET,8X18

92150-1432

$7.54

92150A

BOLT

92150-1610

$8.37

92150B

BOLT,SOCKET,8MM

92150-1613

$3.63

92153

BOLT,SOCKET,10X25

92153-0301

$2.63
