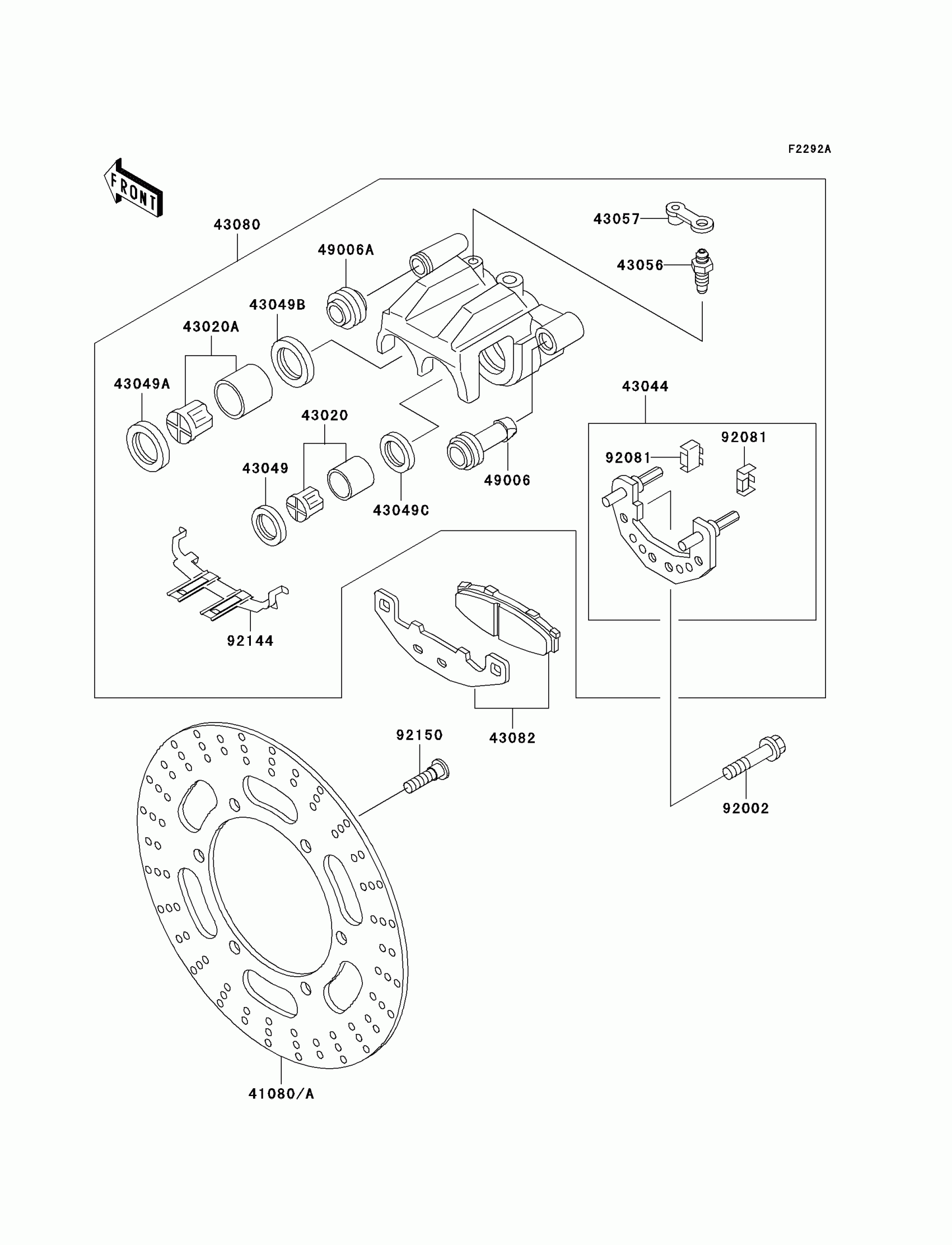

Kawasaki Ninja® 500R Front Brake(D11/D12) Diagram

Description

Price

41080

DISC,FR,C.GRAY

41080-0032-FB

$461.72

43020

PISTON-COMP-BRAKE

43020-1068

$74.19

43020A

PISTON-COMP-BRAKE

43020-1069

$74.19

43044

HOLDER-COMP-CALIPER

43044-1067

$162.04

43049

PACKING,PISTON

43049-1055

$8.95

43049A

PACKING,PISTON

43049-1057

$10.02

43049B

PACKING,PISTON SEAL

43049-1095

$10.38

43049C

PACKING,PISTON SEAL

43049-1096

$9.84

43056

BREATHER-BRAKE

43056-1054

$22.74

43057

CAP-BREATHER

43057-003

$2.02

43080

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-5013-DJ

$437.26

43082

PAD-ASSY-BRAKE

43082-1161

Unavailable

49006

BOOT,CALIPER

49006-1094

$9.69

49006A

BOOT,CALIPER

49006-1095

$5.78

92002

BOLT,FLANGED,10X41

92002-1484

$6.51

92081

SPRING,PAD STOPPER

92081-1661

$9.60

92144

SPRING,PAD

92144-1070

$30.43

92150

BOLT,SOCKET,8X30

92150-1771

$3.72
