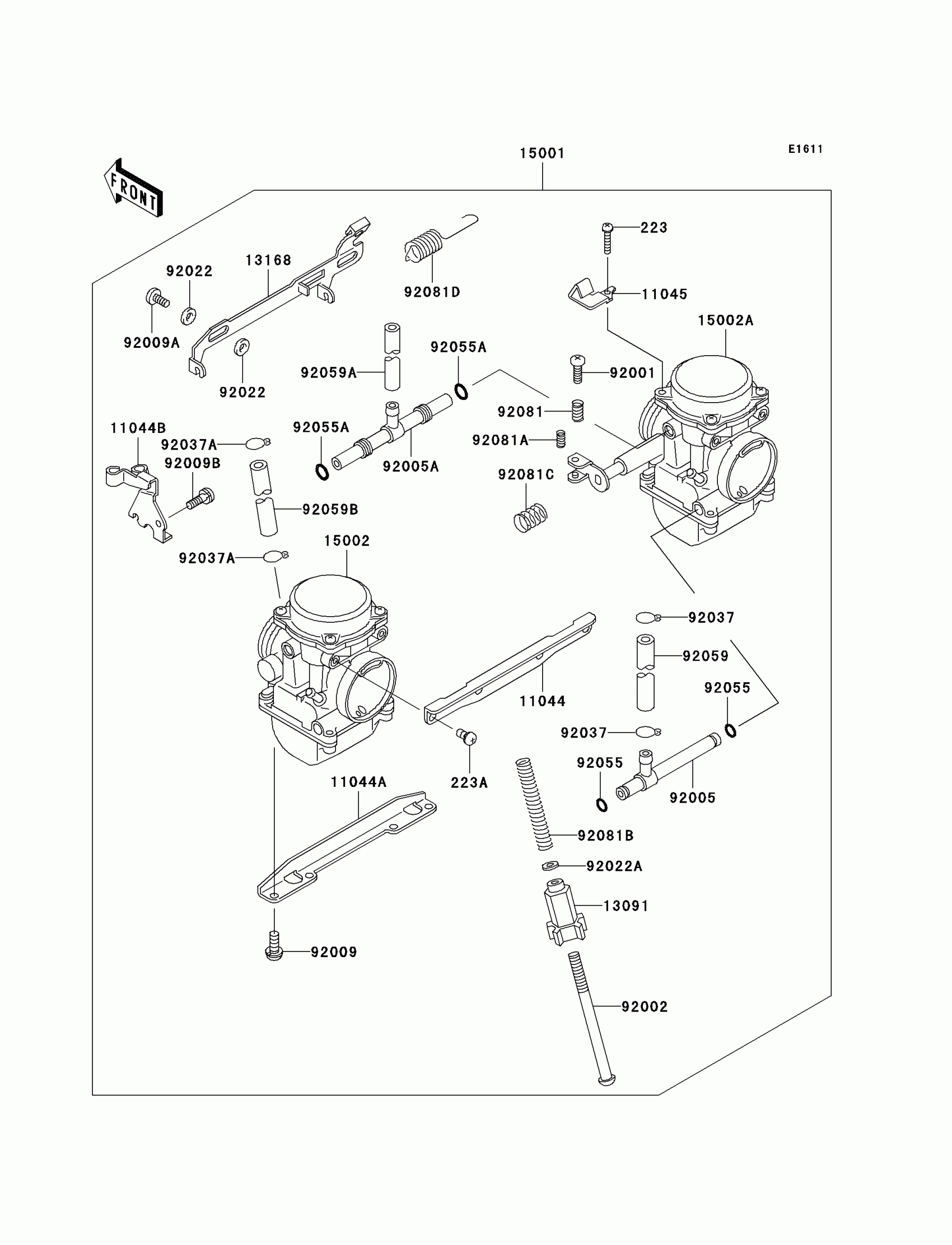

Kawasaki Ninja® 500R Carburetor(D6F/D7F) Diagram

#

Description
Price

223

SCREW-PAN-WS-CROS,4X20

223AB0420

$4.10

223A

SCREW-PAN-WS-CROS,5X10

223AB0510

$3.28

11044

BRACKET,CARBURETOR STAY,UPP

11044-1313

$68.87

11044A

BRACKET,CARBURETOR STAY,6MM

11044-1314

$73.73

11044B

BRACKET,THROTTLE CABLE

11044-1546

$70.10

11045

BRACKET,STARTER LEVER

11045-1824

Unavailable

13091

HOLDER,THROTTLE STOP SCREW

13091-1382

$16.31

13168

LEVER

13168-1360

$76.50

15001

CARBURETOR-ASSY

15001-1334

$1,285.97

15002

CARBURETOR,LH

15002-1492

Unavailable

15002A

CARBURETOR,RH

15002-1493

$749.90

92001

BOLT,THROTTLE ADJUST

92001-1998

$15.88

92002

BOLT,THROTTLE STOP SCREW

92002-1552

$15.76

92005

FITTING

92005-1133

$47.95

92005A

FITTING

92005-1134

Unavailable

92009

SCREW,6X16

92009-1129

Unavailable

92009A

SCREW

92009-1262

$5.47

92009B

SCREW,5X10

92009-1365

$5.84

92022

WASHER,6.1X11X0.8,POLYACETAL

92022-1199

$3.82

92022A

WASHER,PLAIN,STOP SPRING

92022-1480

$4.42

92037

CLAMP,FUEL TUBE

92037-1075

$3.16

92037A

CLAMP,TUBE

92037-1477

$3.43

92055

RING-O

92055-1004

$3.43

92055A

RING-O

92055-1223

$4.37

92059

TUBE,FUEL,7.3X12.5X220

92059-1236

$34.56

92059A

TUBE,6.5X9.5X500

92059-1465

$34.01

92059B

TUBE,5X9X140

92059-1634

$18.19

92081

SPRING

92081-1620

$3.94

92081A

SPRING,THROTTLE ADJUST LWR

92081-1621

$4.12

92081B

SPRING,THROTTLE STOP SCREW

92081-1875

Unavailable

92081C

SPRING

92081-1876

$10.93

92081D

SPRING,STARTER LEVER

92081-1893

$22.88
