2025 Kawasaki Ninja® 500 Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2025 Kawasaki Ninja® 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

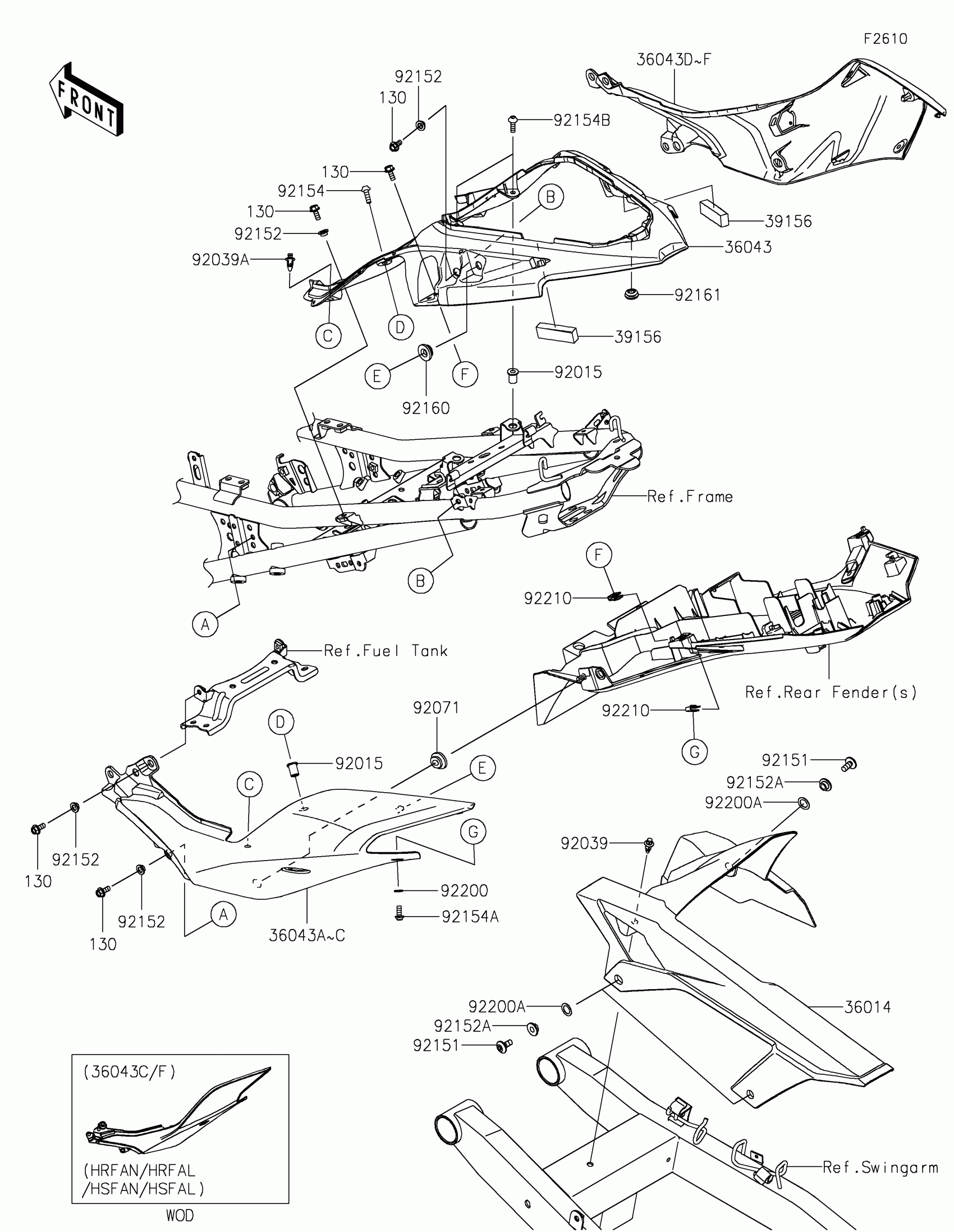

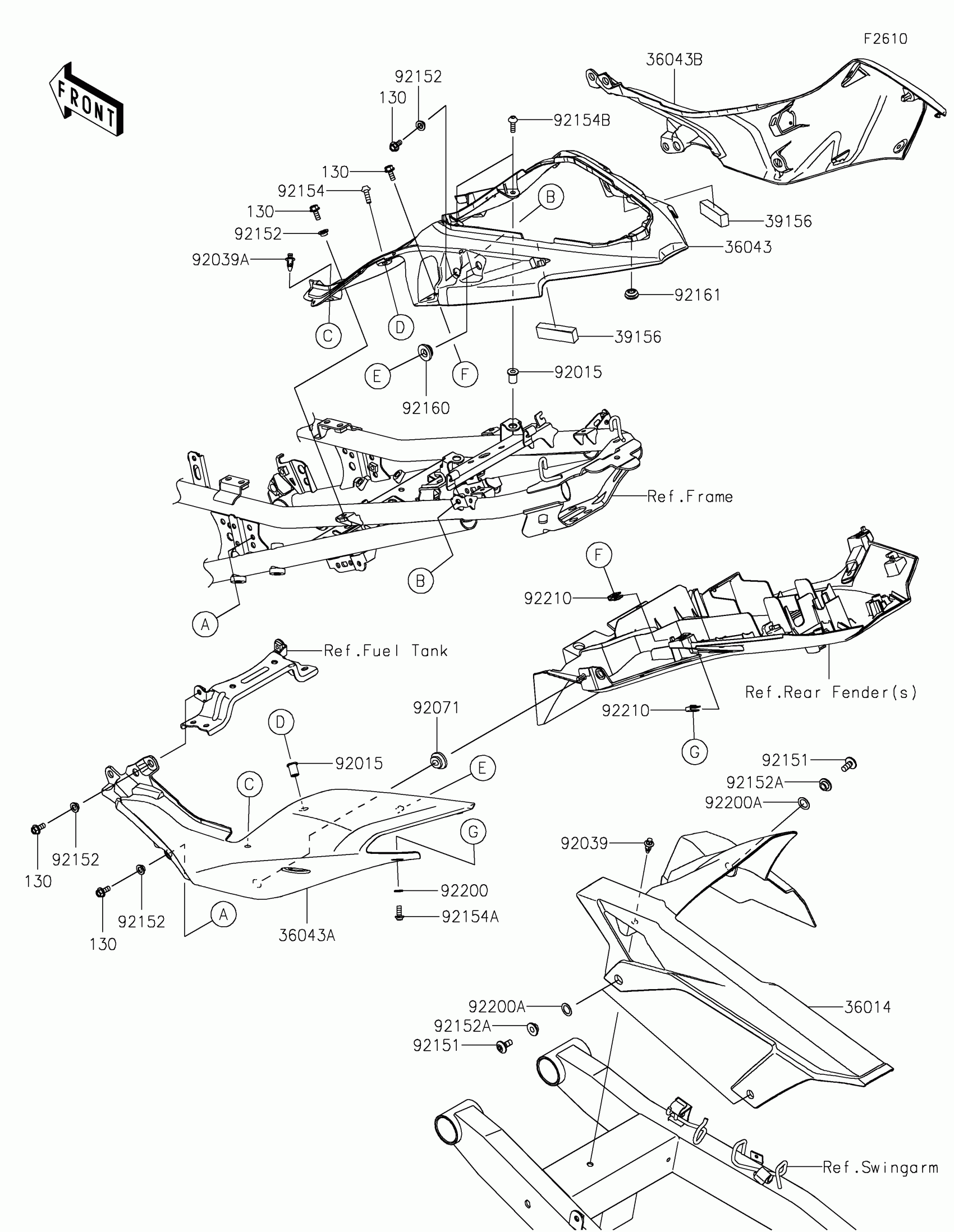

2025 Kawasaki Ninja® 500 Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36014

CASE-CHAIN

36014-0571

1
Out of stock

36043

COVER-TAIL,CNT

36043-0001

1
Out of stock

36043A

COVER-TAIL,LH,M.M.W.SILVER

36043-0002-63V

1
Out of stock

36043D

COVER-TAIL,RH,M.M.W.SILVER

36043-0003-63V

1
Out of stock

39156

PAD,50X10X15

39156-2932

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92039

RIVET

92039-0060

1
Out of stock

92039A

RIVET

92039-0709

1
Out of stock

92071

GROMMET,20X24X7.5

92071-0766

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92152

COLLAR,6X8X4.5

92152-2395

1
Out of stock

92152A

COLLAR,6.5X10X5.9

92152-2486

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-1701

1
Out of stock

92154A

BOLT,SOCKET,5X12

92154-4289

1
Out of stock

92154B

BOLT,SOCKET,5X16

92154-4294

1
Out of stock

92160

DAMPER

92160-1613

1
Out of stock

92161

DAMPER

92161-0631

1
Out of stock

92200

WASHER,5.2X10X1

92200-2286

1
Out of stock

92200A

WASHER,10.4X15.9X0.5

92200-2525

1
Out of stock

92210

NUT

92210-0571

1
Out of stock

130

BOLT-FLANGED,5X12

130BA0512

1

$1.80

In stock
