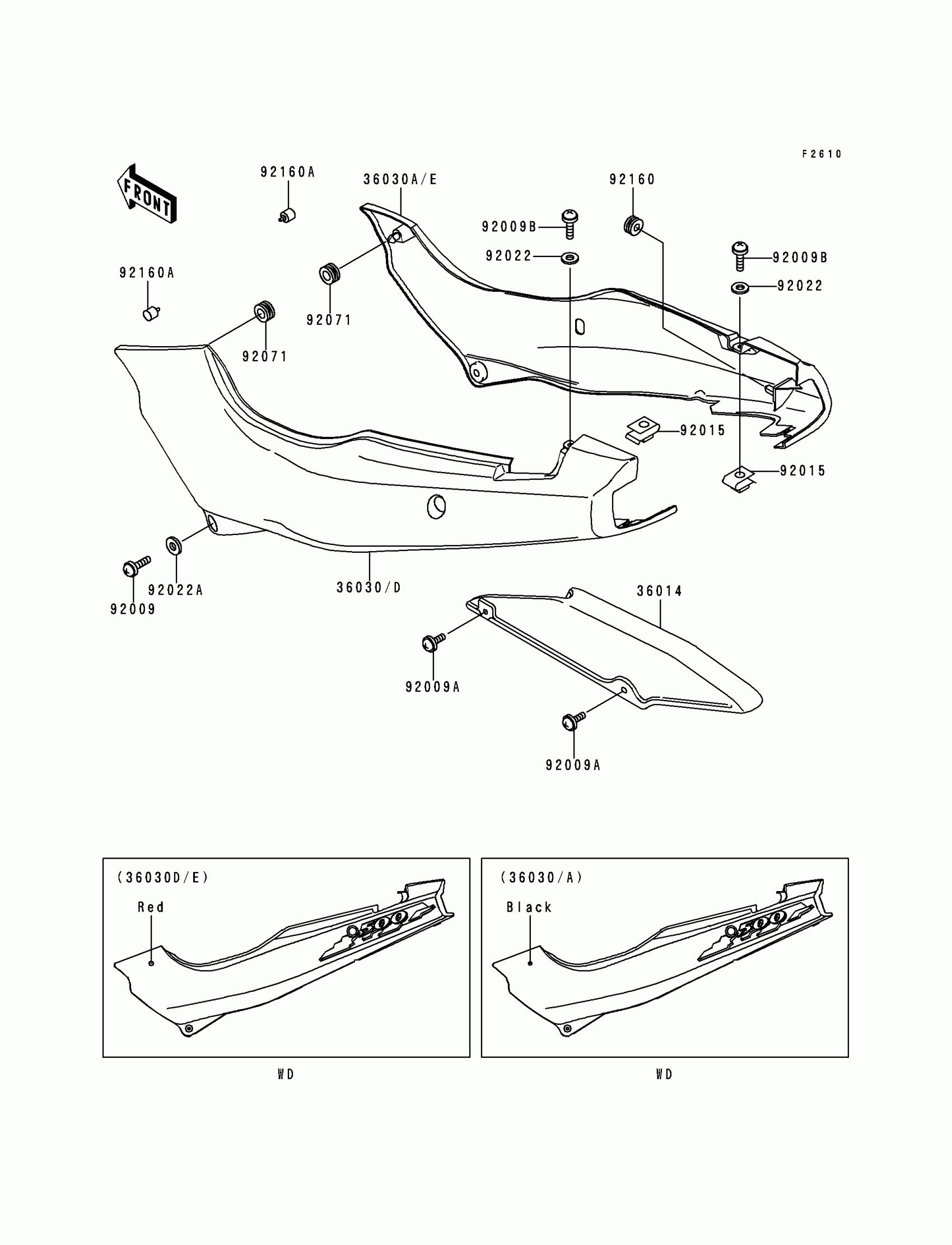

Kawasaki Ninja® 500 Side Covers/Chain Cover(EX500-D1) Diagram

Description

Price

36014

CASE-CHAIN

36014-1164

$111.51

36030

COVER-SIDE,LH,P.P.BLACK MICA

36030-5280-20

$413.23

36030A

COVER-SIDE,RH,P.P.BLACK MICA

36030-5281-20

$413.23

36030D

COVER-SIDE,LH,C.W.RED

36030-5284-H3

$413.23

36030E

COVER-SIDE,RH,C.W.RED

36030-5285-H3

$413.23

92009

SCREW,6X14

92009-1288

$3.12

92009A

SCREW,6X10

92009-1402

$2.00

92009B

SCREW,5X16,BLACK

92009-1654

$2.51

92015

NUT,5MM

92015-1710

$4.93

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.12

92022A

WASHER,6.5X16X1.0

92022-1654

$2.92

92071

GROMMET

92071-056

$3.39

92160

DAMPER

92160-1162

$3.97

92160A

DAMPER

92160-1555

$8.03
