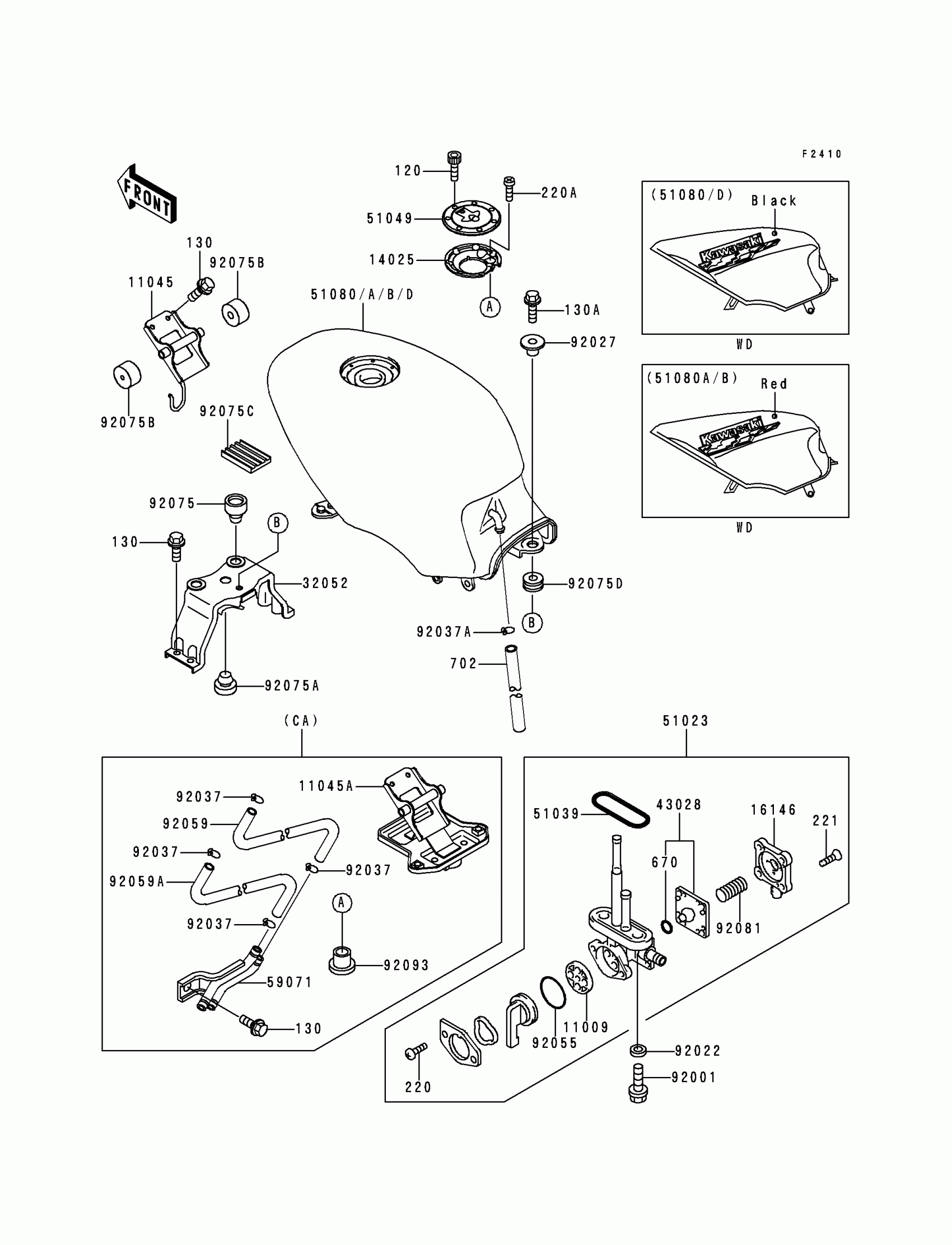

Kawasaki Ninja® 500 Fuel Tank(EX500-D1) Diagram

#

Description
Price

11009

GASKET,TAP VALVE

11009-1188

$4.54

14025

COVER,TANK CAP

14025-1913

$19.98

16146

COVER-ASSY,TAP DIAPHRAGM

16146-1010

$23.78

32052

BRACKET-TANK,FUEL,RR

32052-1394

$57.77

43028

DIAPHRAGM

43028-1033

$21.24

51023

TAP-ASSY,FUEL

51023-1142

$129.80

51039

RING,TAP FLANGED

51039-003

$4.97

51049

CAP-TANK,FUEL

51049-1091

$117.85

120

BOLT-SOCKET,5X12

120S0512

Unavailable

130A

BOLT,FLANGED,8X30

130G0830

Unavailable

220

SCREW-PAN-CROS,3X8

220B0308

$0.63

220A

SCREW-PAN-CROSS

220C0508

Unavailable

221

SCREW-CSK-CROS,4X14

221B0414

Unavailable

670

O RING,4MM

670B1504

$3.27

702

TUBE-RUBBER,7X10X380

702A07380

$10.53

92001

BOLT,6X20

92001-1091

$3.12

92022

WASHER-PLAIN

92022-183

$3.12

92027

COLLAR,L=19.3

92027-1780

$5.21

92037A

CLAMP

92037-1712

$3.97

92055

RING-O,TAP LEVER

92055-1085

$4.01

92075

DAMPER

92075-015

$3.97

92075A

DAMPER

92075-1045

$7.04

92075B

DAMPER,FUEL TANK,FR

92075-1115

$5.21

92075C

DAMPER

92075-1489

$8.71

92075D

DAMPER

92075-1736

$5.21

92081

SPRING,TAP DIAPHRAGM

92081-1240

$3.10

11045

BRACKET,FUEL TANK,FR

11045-1362

$43.35

11045A

BRACKET,FUEL TANK,FR

11045-1389

$74.87

51080

TANK-COMP-FUEL,P.P.BLACK MICA

51080-5058-20

$1,100.45

51080A

TANK-COMP-FUEL,C.W.RED

51080-5059-H3

$1,100.45

51080B

TANK-COMP-FUEL,C.W.RED

51080-5060-H3

$1,120.50

51080D

TANK-COMP-FUEL.P.P.BLACK MICA

51080-5075-20

$1,120.50

130

BOLT

130B0612

Unavailable

130

BOLT

130B0612

Unavailable

59071

JOINT,EVAPO

59071-1122

$48.76

92037

CLAMP,TUBE

92037-010

$3.12

92059

TUBE,EVAPO

92059-1767

$10.54

92059A

TUBE,EVAPO

92059-1768

$9.49

92093

SEAL,FUEL TANK CAP

92093-1030

$6.18
