2025 Kawasaki Ninja® 500 ABS Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2025 Kawasaki Ninja® 500 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

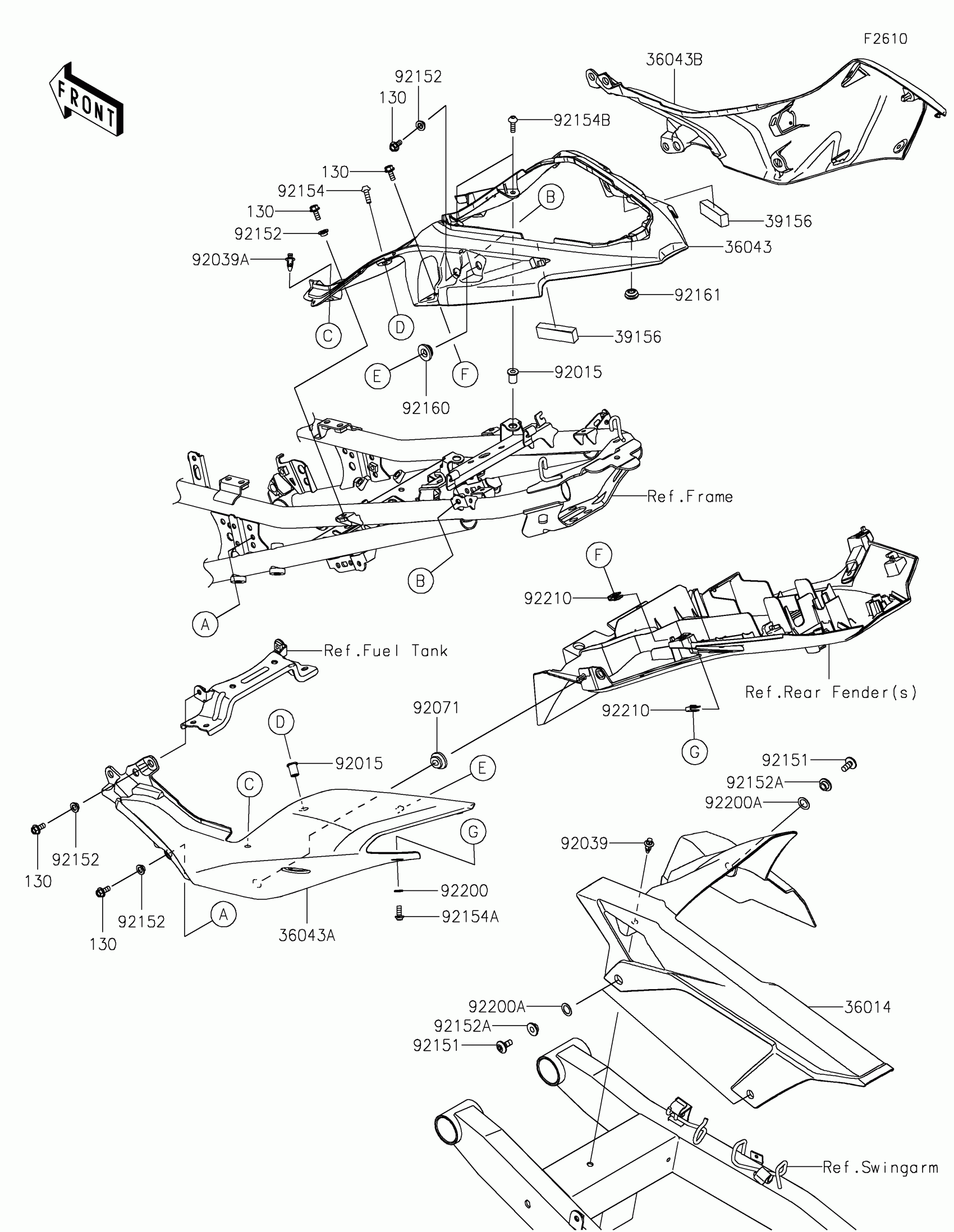

2025 Kawasaki Ninja® 500 ABS Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36014

CASE-CHAIN

36014-0571

1

$34.36

In stock

36043

COVER-TAIL,CNT

36043-0001

1

$103.41

In stock

36043B

COVER-TAIL,LH,M.C.GRAY

36043-0002-51A

1
Out of stock

36043C

1

$194.48

In stock

36043G

COVER-TAIL,RH,M.C.GRAY

36043-0003-51A

1
Out of stock

36043H

1

$193.74

In stock

39156

PAD,50X10X15

39156-2932

1

$1.20

In stock

92015

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92039

RIVET

92039-0060

1

$2.71

In stock

92039A

RIVET

92039-0709

1

$2.19

In stock

92071

GROMMET,20X24X7.5

92071-0766

1

$1.27

In stock

92151

BOLT,SOCKET,6X14

92151-1654

1

$1.56

In stock

92152

COLLAR,6X8X4.5

92152-2395

1

$1.10

In stock

92152A

COLLAR,6.5X10X5.9

92152-2486

1

$2.76

In stock

92154

BOLT,SOCKET,5X16

92154-1701

1

$1.10

In stock

92154A

BOLT,SOCKET,5X12

92154-4289

1

$0.93

In stock

92154B

BOLT,SOCKET,5X16

92154-4294

1

$2.25

In stock

92160

DAMPER

92160-1613

1

$2.97

In stock

92161

DAMPER

92161-0631

1

$5.87

In stock

92200

WASHER,5.2X10X1

92200-2286

1

$0.44

In stock

92200A

1

$0.80

In stock

92210

NUT

92210-0571

1
Out of stock

130

BOLT-FLANGED,5X12

130BA0512

1

$1.80

In stock
