2023 Kawasaki Ninja® 400 KRT Edition Water Pipe Diagram

← All diagrams

Find the part on the Water Pipe diagram for your 2023 Kawasaki Ninja® 400 KRT Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

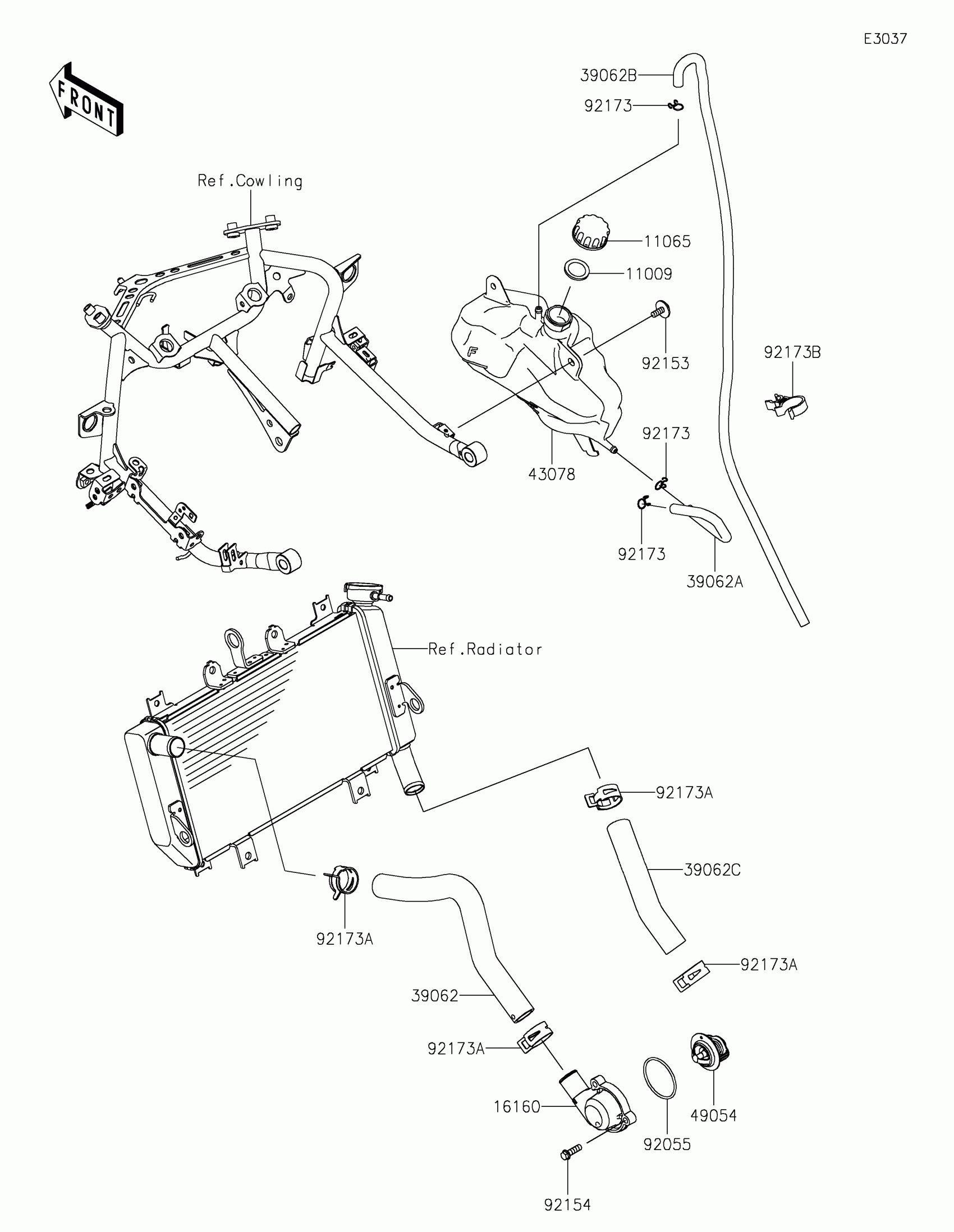

2023 Kawasaki Ninja® 400 KRT Edition Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,RESERVOIR TANK CAP

11009-1145

1
Out of stock

11065

CAP

11065-0969

1
Out of stock

16160

BODY,THERMOSTAT

16160-0830

1
Out of stock

39062

HOSE-COOLING,THERMO.-RADIATOR

39062-0781

1
Out of stock

39062A

HOSE-COOLING,RAD.-RESERVOIR

39062-0784

1
Out of stock

39062B

HOSE-COOLING,OVER FLOW

39062-0823

1
Out of stock

39062C

HOSE-COOLING,RADIATOR-W/PUMP

39062-0861

1
Out of stock

43078

RESERVOIR

43078-0600

1
Out of stock

49054

THERMOSTAT

49054-0001

1
Out of stock

92055

RING-O,46.7X2.4

92055-0992

1
Out of stock

92153

BOLT,FLANGED-SMALL,6X16

92153-1798

1
Out of stock

92154

BOLT,FLANGED,6X20

92154-1778

1
Out of stock

92173

CLAMP

92173-0050

1
Out of stock

92173A

CLAMP

92173-1688

1
Out of stock

92173B

CLAMP

92173-1691

1
Out of stock
