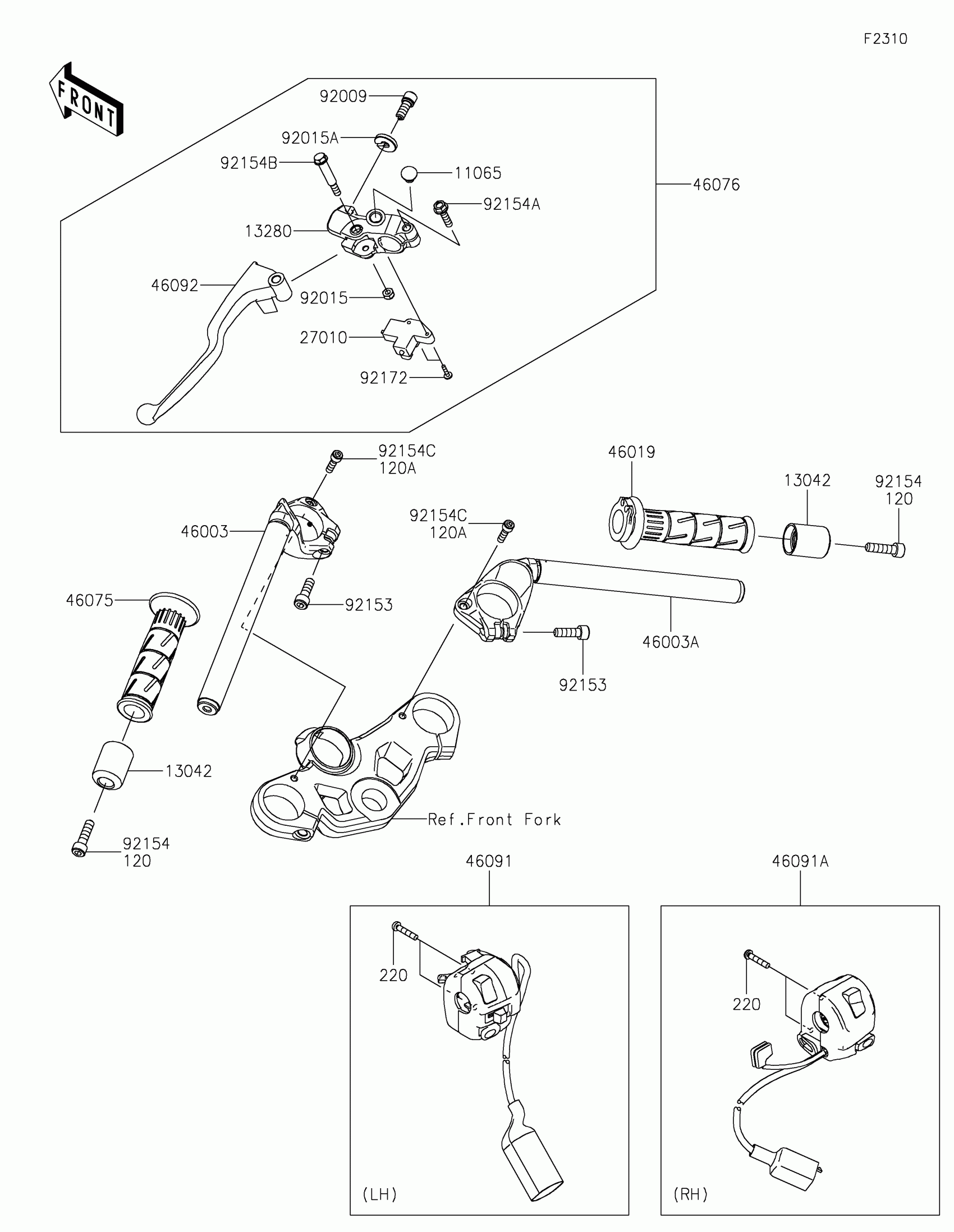

Kawasaki NINJA® 400 KRT EDITION Handlebar Diagram

Description

Price

11065

CAP,DUMMY

11065-0921

$4.24

13042

WEIGHT,HANDLE

13042-5045

$45.66

13280

HOLDER,CLUTCH LEVER

13280-0847

$33.47

27010

SWITCH,CLUTCH

27010-0855

$29.57

46003

HANDLE,LH

46003-0690

$106.55

46003A

HANDLE,RH

46003-0691

$107.20

46019

GRIP-ASSY,THROTTLE

46019-0060

$29.02

46075

GRIP,HANDLE,LH

46075-0564

$16.11

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0141

$59.59

46091

HOUSING-ASSY-CONTROL,LH

46091-0372

$156.22

46091A

HOUSING-ASSY-CONTROL,RH

46091-0479

$137.52

46092

LEVER-GRIP,CLUTCH

46092-0562

$22.00

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

$11.50

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

$7.54

92153

BOLT,SOCKET,8X25

92153-1625

$3.54

92154A

BOLT

92154-1827

$2.44

92154B

BOLT,FLANGED,6X44

92154-3835

$2.98

92154C

BOLT,SOCKET,6X22

92154-4387

$1.13

92172

SCREW,3X16

92172-0183

$1.57

120

BOLT-SOCKET,8X30

120CB0830

$3.57

220

SCREW-PAN-CROS,5X25

220AB0525

$2.66
