2023 Kawasaki Ninja® 400 KRT Edition Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2023 Kawasaki Ninja® 400 KRT Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

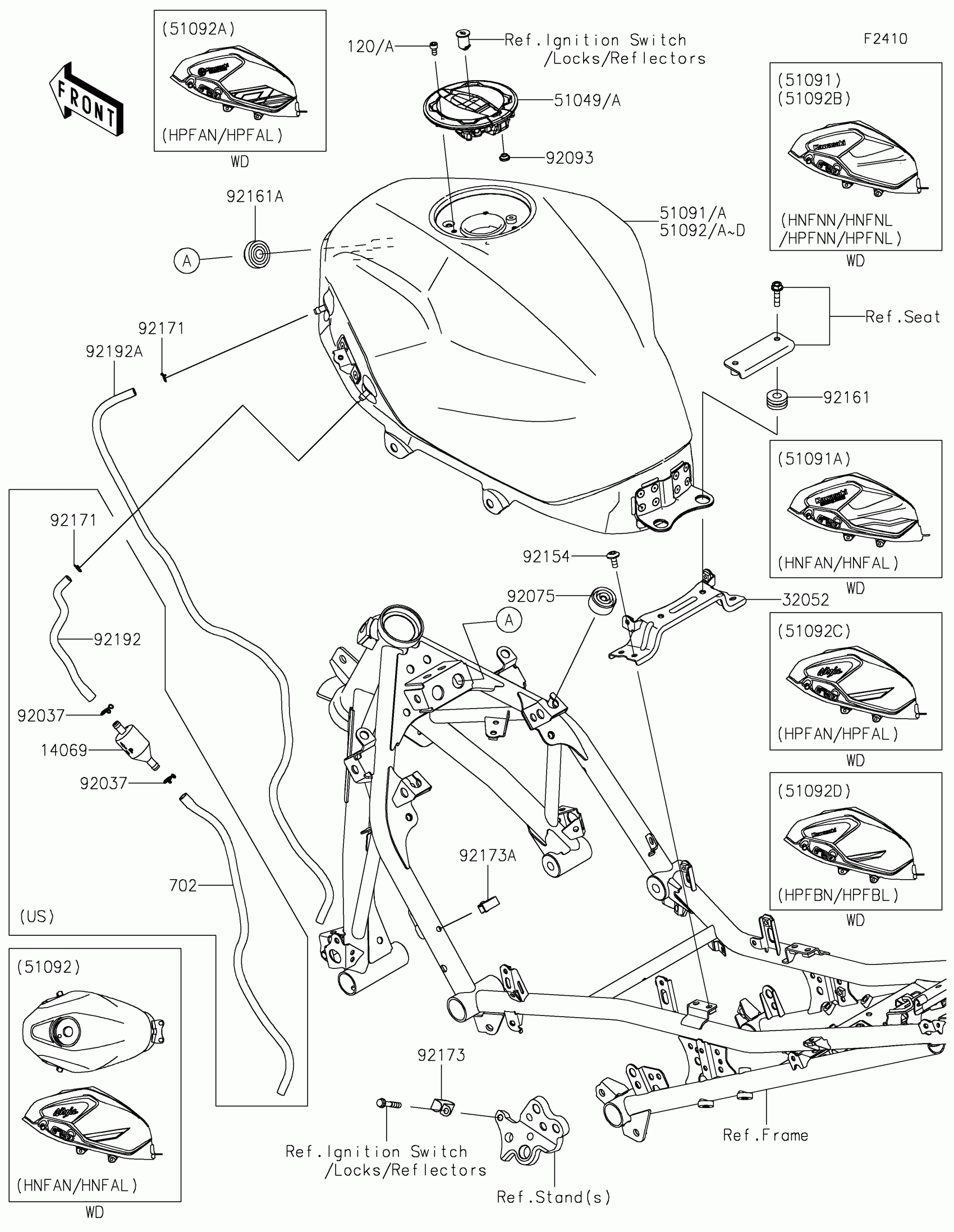

2023 Kawasaki Ninja® 400 KRT Edition Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32052

BRACKET-TANK

32052-0809

1
Out of stock

51049A

CAP-TANK,FUEL

51049-0756

1
Out of stock

51092A

TANK-COMP-FUEL,L.GREEN

51092-5245-777

1
Out of stock

51092B

TANK-COMP-FUEL,M.C.GRAY

51092-5252-51A

1
Out of stock

51092C

TANK-COMP-FUEL,P.B.WHITE

51092-5256-54X

1
Out of stock

92075

DAMPER

92075-015

1
Out of stock

92093

SEAL,FUEL TANK CAP

92093-1030

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-0932

1
Out of stock

92161

DAMPER,10X24X12

92161-0927

1
Out of stock

92161A

DAMPER,10X32X17

92161-1980

1
Out of stock

92173

CLAMP

92173-0833

1
Out of stock

92173A

CLAMP,HOLDER CLIP

92173-0868

1
Out of stock

92192A

TUBE,DRAIN,6X9X810

92192-1860

1
Out of stock

120

BOLT-SOCKET,5X12

120CA0512

1
Out of stock
