2023 Kawasaki Ninja® 400 KRT Edition Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2023 Kawasaki Ninja® 400 KRT Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

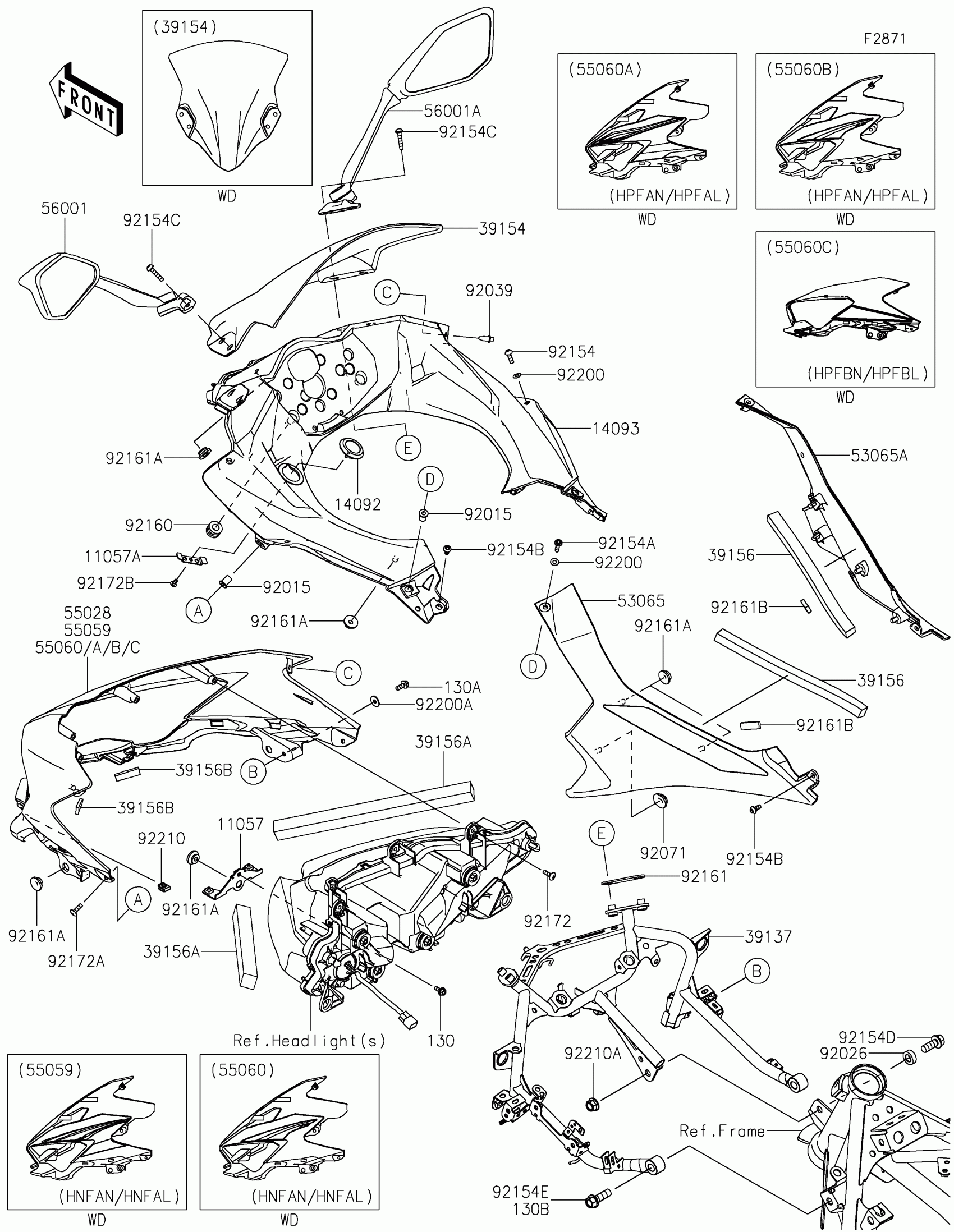

2023 Kawasaki Ninja® 400 KRT Edition Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,HEAD LAMP,LWR

11057-1199

1
Out of stock

11057A

BRACKET,DC SOCKET

11057-1249

1
Out of stock

14092

COVER,DC SOCKET

14092-0214

1
Out of stock

14093

COVER,METER

14093-0644

1
Out of stock

39137

STAY-COMP,UPP COWL.

39137-0679

1
Out of stock

39154

WINDSHIELD

39154-0369

1
Out of stock

39156

PAD,13X240X16

39156-2297

1
Out of stock

39156A

PAD,20X290X20

39156-2357

1
Out of stock

39156B

PAD,10X35X4

39156-2380

1
Out of stock

53065

COVER SEAT,LH

53065-0042

1
Out of stock

53065A

COVER SEAT,RH

53065-0043

1
Out of stock

55028

COWLING,UPP,M.C.GRAY

55028-0690-51A

1
Out of stock

55060A

COWLING,UPP,L.GREEN

55060-5155-777

1
Out of stock

55060B

COWLING,UPP,P.B.WHITE

55060-5175-54X

1
Out of stock

56001

MIRROR-ASSY,LH

56001-0378

1
Out of stock

56001A

MIRROR-ASSY,RH

56001-0379

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92026

SPACER,10.5X20X6.5

92026-0835

1
Out of stock

92039

RIVET

92039-0060

1
Out of stock

92071

GROMMET,20X24X7.5

92071-0766

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-0209

1
Out of stock

92154A

BOLT,SOCKET,5X20

92154-0210

1
Out of stock

92154B

BOLT,SOCKET,5X12

92154-1421

1
Out of stock

92154C

BOLT,SOCKET,6X25

92154-2806

1
Out of stock

92154D

BOLT-FLANGED,10X25

92154-4058

1
Out of stock

92154E

BOLT,FLANGED,10X30

92154-4393

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1
Out of stock

92161

DAMPER

92161-1467

1
Out of stock

92161A

DAMPER

92161-1531

1

$2.44

In stock

92161B

DAMPER,10X28X5

92161-2107

1
Out of stock

92172

SCREW,TAPPING,5X16

92172-0427

1
Out of stock

92172A

SCREW,TRUSS HEAD,5X16

92172-1222

1
Out of stock

92172B

SCREW,CROSS,4X8

92172-1227

1
Out of stock

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

1
Out of stock

92200A

WASHER,5.2X16X1.2

92200-0583

1
Out of stock

92210

NUT

92210-0571

1
Out of stock

92210A

NUT,LOCK,FLANGED,10MM

92210-1081

1
Out of stock

130

BOLT-FLANGED,5X12

130BA0512

1

$1.80

In stock

130A

BOLT-FLANGED,5X14

130BA0514

1

$1.73

In stock
