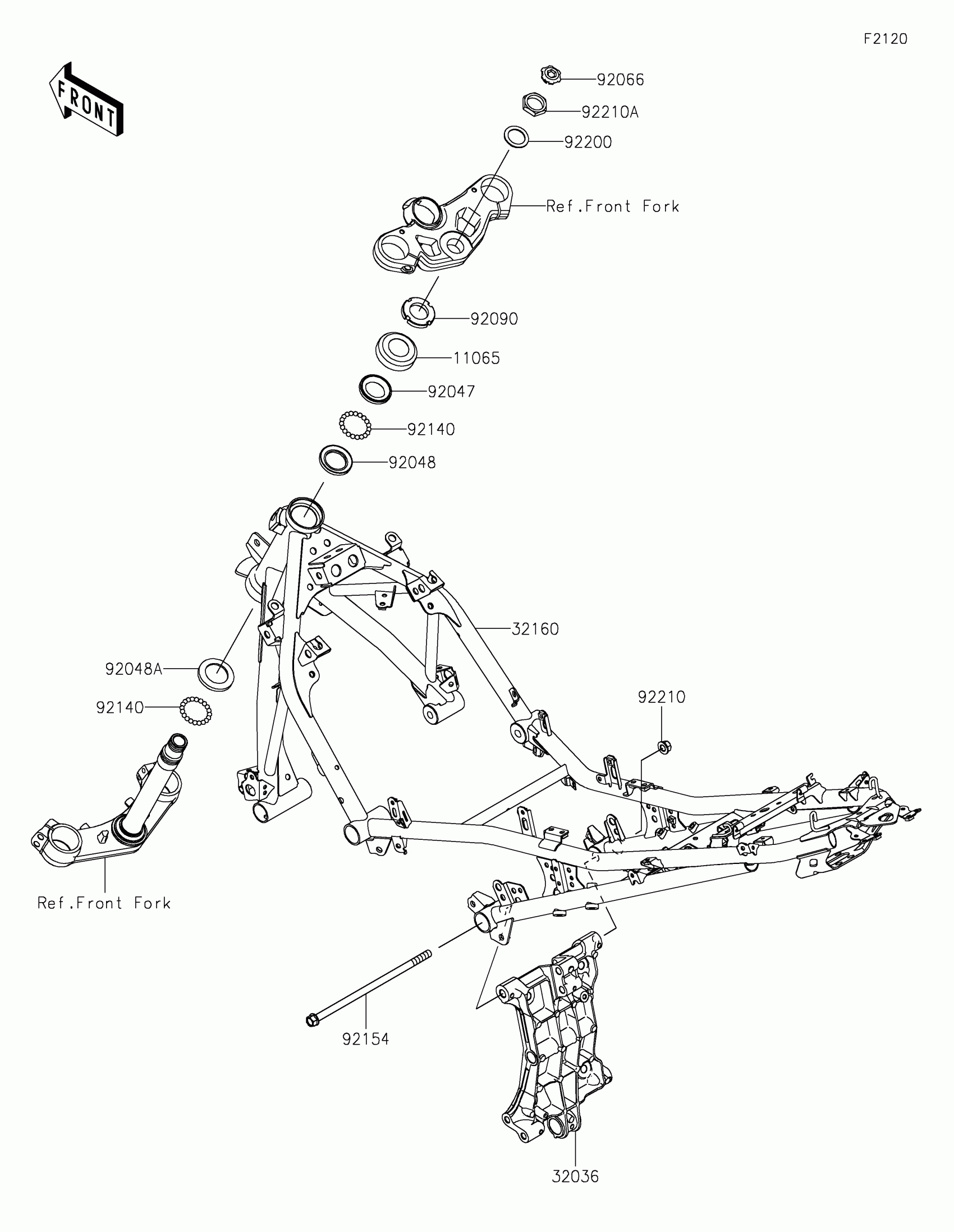

Kawasaki Ninja® 400 Frame(CN,US) Diagram

Description

Price

11065

CAP

11065-1290

$5.31

32036

BRACKET-SWINGARM

32036-0376

$448.84

32160

FRAME-COMP,F.S.BLACK

32160-0949-18R

$2,138.70

92047

RACE,STEERING STEM BEARING

92047-011

$13.85

92048

RACE,STEERING STEM BEARING

92048-006

$8.83

92048A

RACE,STEERING STEM BEARING

92048-008

$12.16

92066

PLUG

92066-0915

$1.87

92090

NUT,30MM

92090-007

$8.91

92140

BALL,6.35MM

92140-0008

Unavailable

92154

BOLT,FLANGED,10X231

92154-3738

$25.78

92200

WASHER,25.5X36X1.6

92200-1858

$8.51

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90

92210A

NUT,25MM

92210-1586

$10.14
