2021 Kawasaki Ninja® 400 Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2021 Kawasaki Ninja® 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

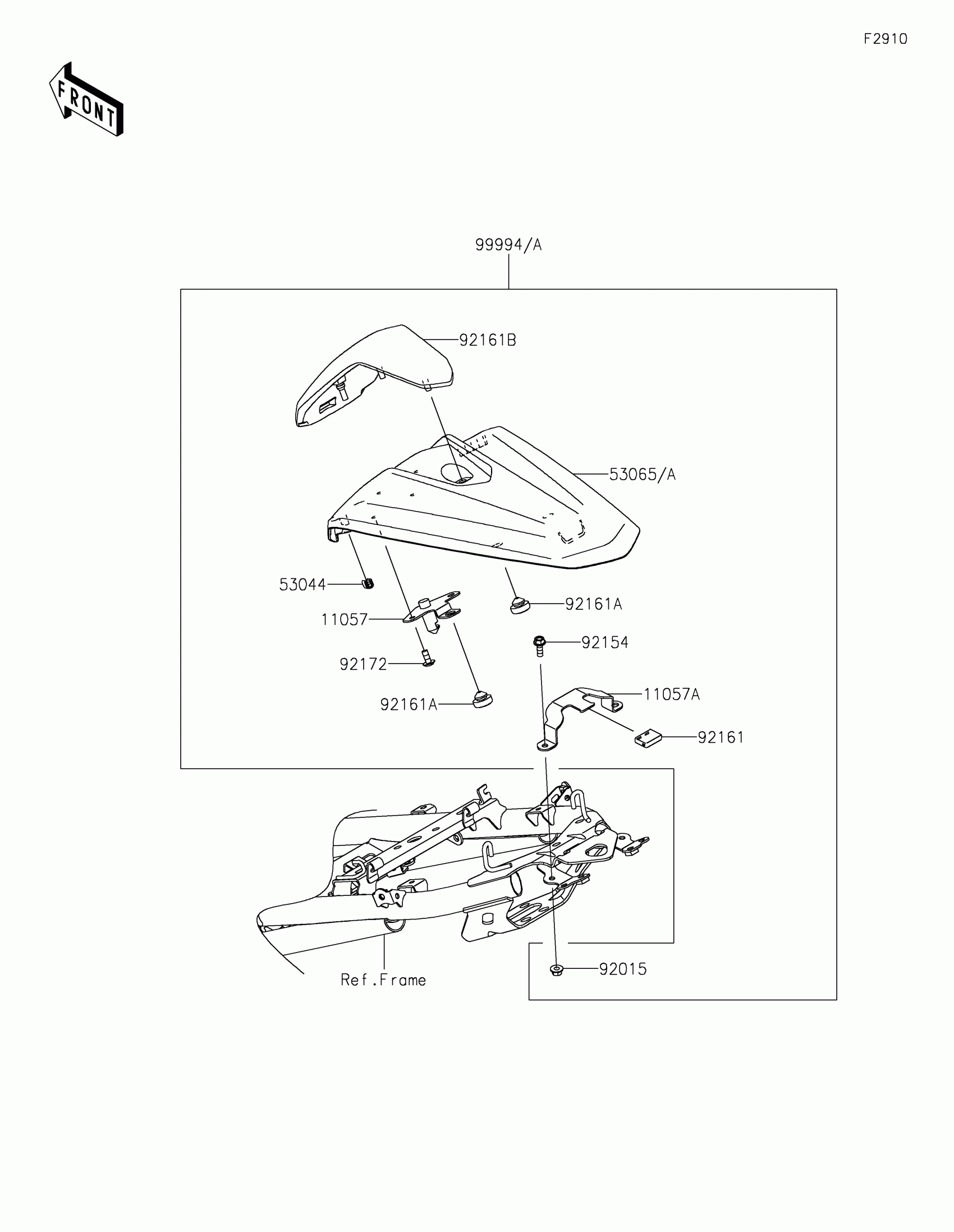

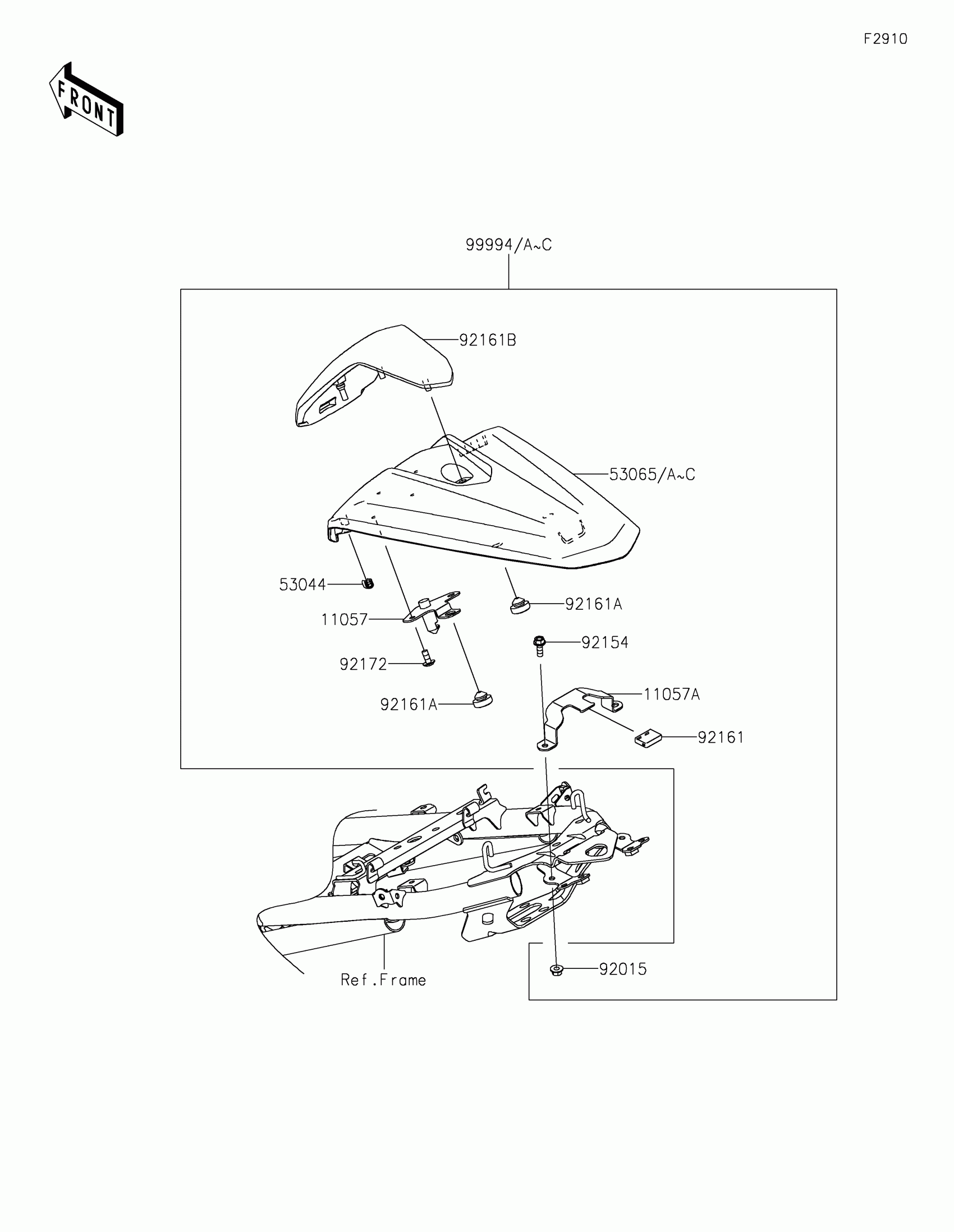

2021 Kawasaki Ninja® 400 Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,COVER FIX

11057-1241

1
Out of stock

11057A

BRACKET,FRAME FIX

11057-1242

1
Out of stock

53044

TRIM,L=20

53044-0021

1

$2.71

In stock

53065

COVER SEAT,P.RED

53065-0044-234

1

$196.59

In stock

53065A

COVER SEAT,M.P.SILVER

53065-0044-GU

1

$194.77

In stock

92015

NUT,FLANGED,5MM

92015-1656

1

$2.59

In stock

92154

BOLT,FLANGED,5X14

92154-2894

1

$0.69

In stock

92161

DAMPER,15X21X5.5

92161-1472

1

$2.44

In stock

92161A

DAMPER,9.5X18X6

92161-1473

1

$1.44

In stock

92161B

DAMPER,SEAT COVER

92161-1988

1

$32.37

In stock

92172

SCREW,5X12

92172-0821

1

$0.85

In stock

99994

1

$187.50

In stock

99994A

1

$216.50

In stock
