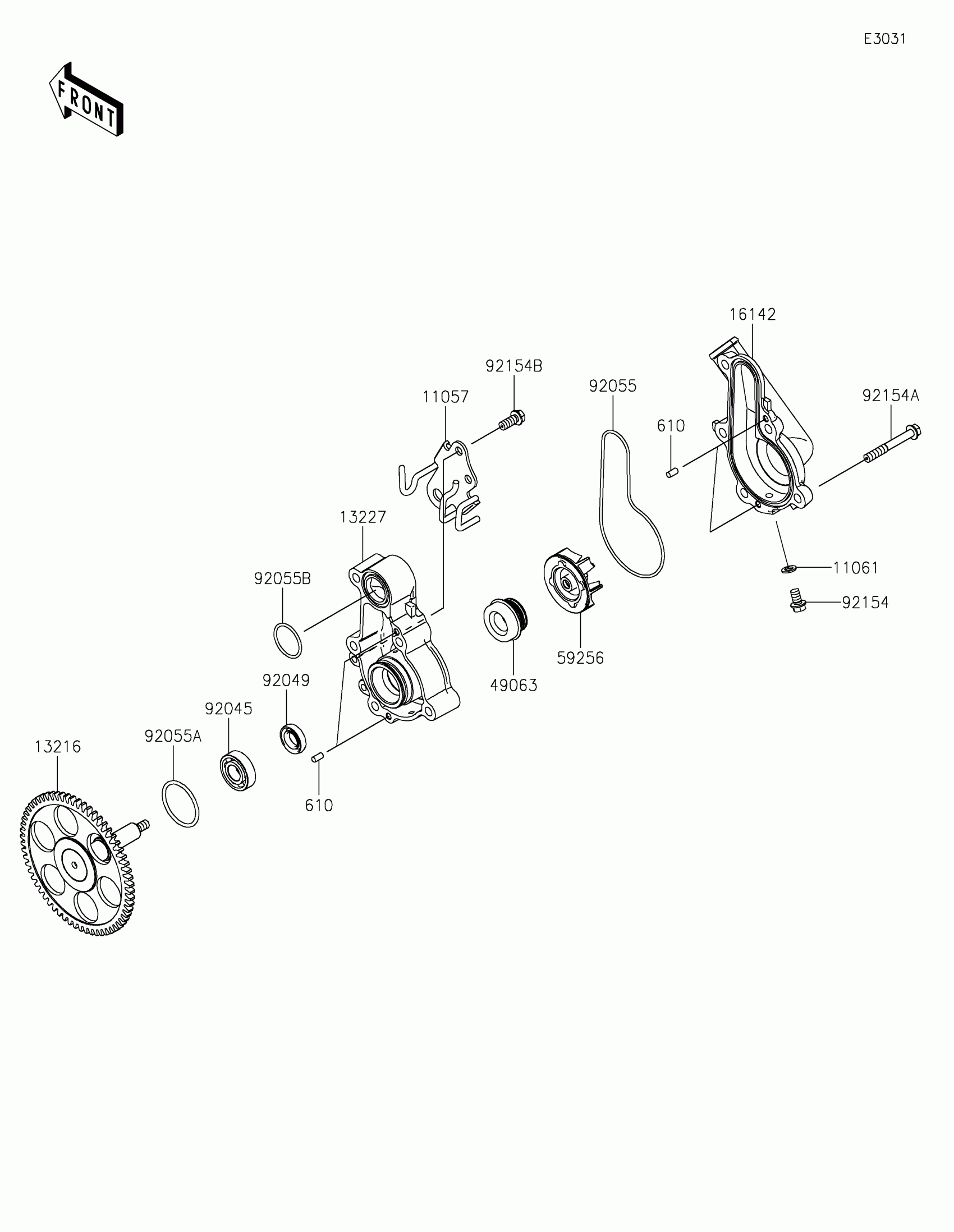

Kawasaki NINJA® 400 ABS Water Pump Diagram

Description

Price

11057

BRACKET

11057-1257

$10.59

11061

GASKET,DRAIN

11061-0875

$4.24

13216

GEAR-COMP,WATER PUMP,62T

13216-0894

$239.68

13227

HOUSING

13227-0040

$79.04

16142

COVER-PUMP,WATER

16142-0757

$65.12

49063

SEAL-MECHANICAL

49063-1055

$16.33

59256

IMPELLER

59256-0554

$19.31

92045

BEARING-BALL

92045-0067

Unavailable

92049

SEAL-OIL,12X22X5

92049-0783

$5.91

92055

RING-O

92055-0889

$10.39

92055A

RING-O,31.20X2.4

92055-0896

$1.27

92055B

RING-O,23.3X1.9

92055-1555

$1.96

92154

BOLT,FLANGED,6X10

92154-2344

$0.88

92154A

BOLT,FLANGED,6X45

92154-2789

$1.47

92154B

BOLT,FLANGED,6X14

92154-2838

$0.88

610

ROLLER,4X8

610A0408

$3.29
