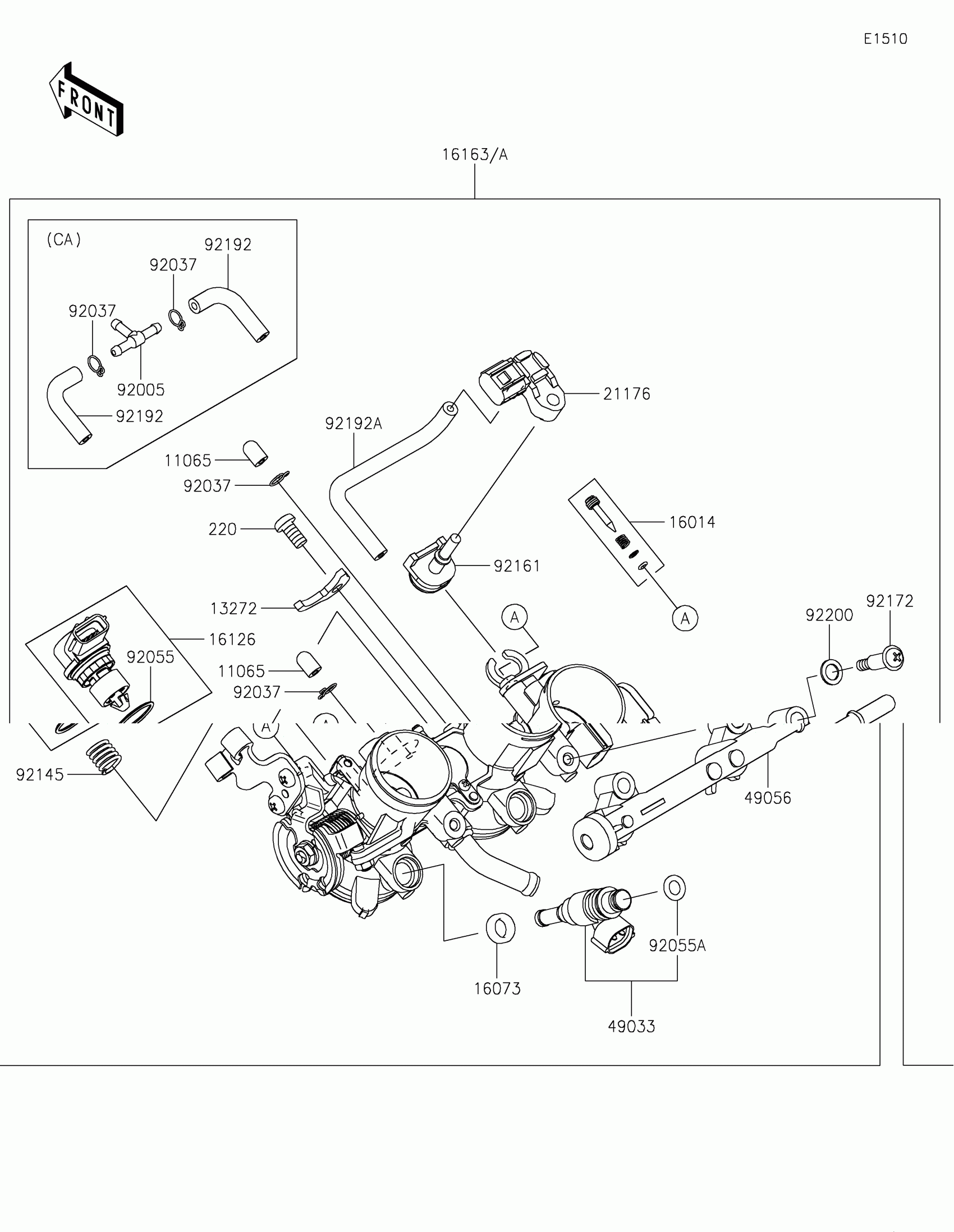

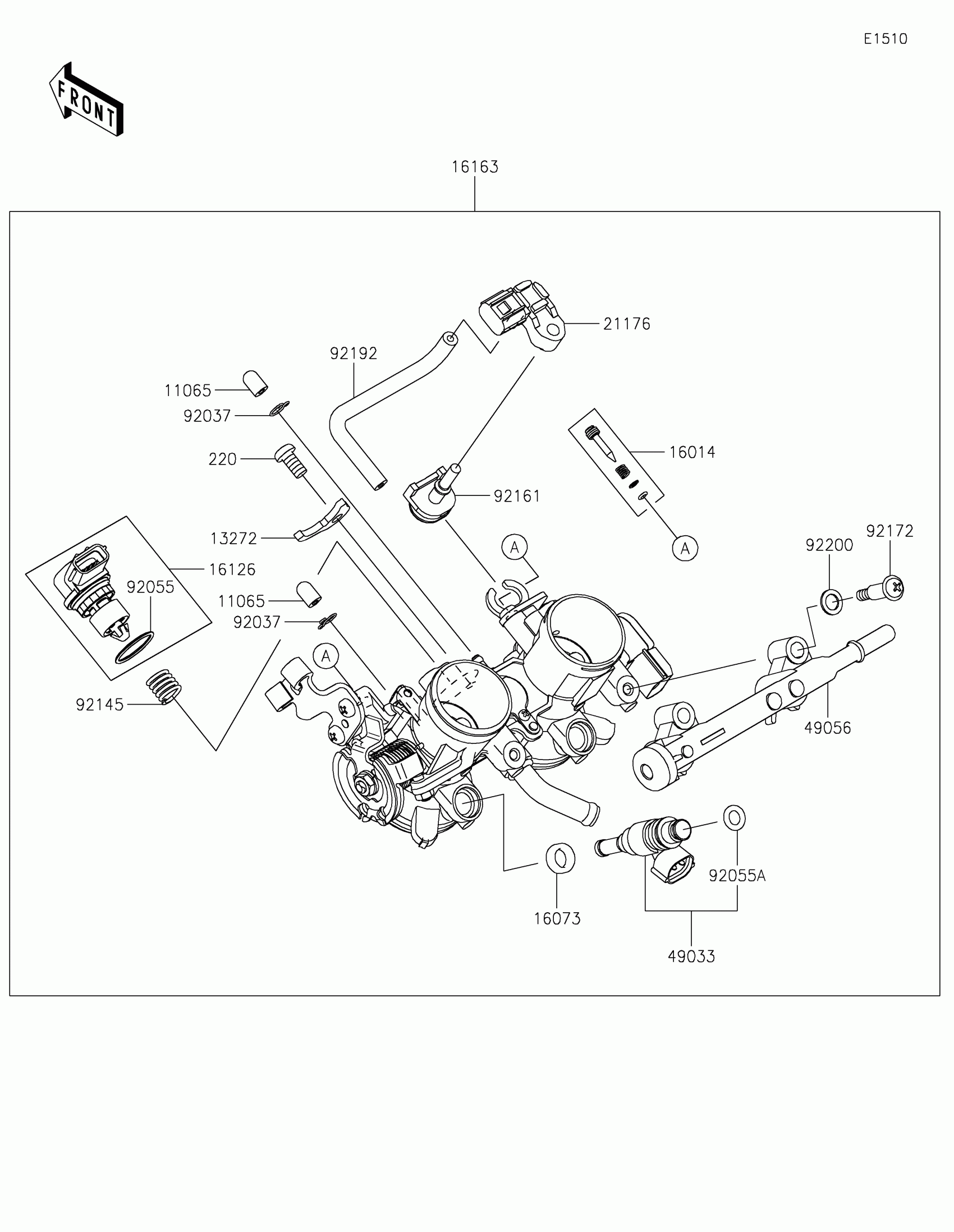

Kawasaki NINJA® 400 ABS Throttle Diagram

Description

Price

11065

CAP

11065-0072

$5.50

13272

PLATE

13272-2558

$21.07

16014

SCREW-PILOT AIR

16014-0022

$23.64

16073

INSULATOR

16073-0866

$5.25

16126

VALVE,ISC

16126-0748

$118.86

16163

THROTTLE-ASSY

16163-0922

$749.25

16163A

THROTTLE-ASSY

16163-0927

$749.25

21176

SENSOR,PRESSURE

21176-0111

$226.99

49033

NOZZLE-INJECTION

49033-0047

$135.75

49056

PIPE-INJECTION

49056-0050

$78.13

92005

FITTING

92005-1380

$15.71

92037

CLAMP,TUBE

92037-1124

$4.59

92055

RING-O

92055-0907

$8.37

92055A

RING-O,REGULATOR-FUEL

92055-2187

$2.42

92145

SPRING

92145-1826

$5.02

92161

DAMPER

92161-0673

$4.85

92172

SCREW

92172-1257

$2.29

92192

TUBE,3.5X7.5X55

92192-1349

$13.05

92192A

TUBE

92192-1906

$25.78

92200

WASHER

92200-3807

$4.53

220

SCREW-PAN-CROS,6X12

220AA0612

$0.95

92037

CLAMP,TUBE

92037-1124

$4.59
