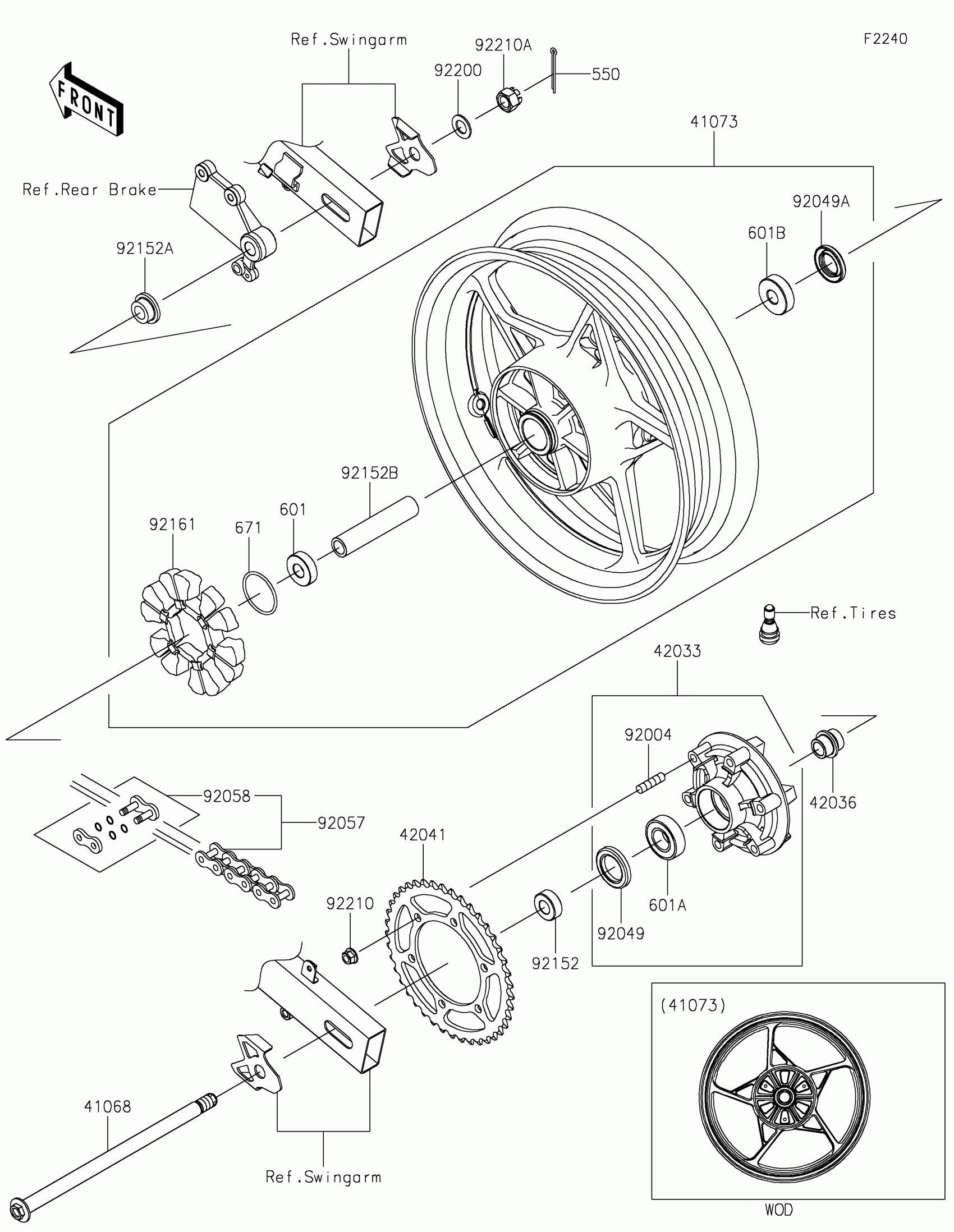

Kawasaki NINJA® 400 ABS Rear Wheel/Chain Diagram

Description

Price

41068

AXLE,RR,17X322,M16

41068-0628

$75.79

41073

WHEEL-ASSY,RR,G.BLACK

41073-0753-QT

$771.92

42033

COUPLING-ASSY,RR HUB

42033-0574

$244.56

42036

SLEEVE,RR HUB,L=30

42036-1055

$26.02

42041

SPROCKET-HUB,41T

42041-0162

$86.66

92004

STUD,10X19

92004-0048

$6.48

92049

SEAL-OIL,35X52X7

92049-0730

$8.30

92049A

SEAL-OIL,27X47X7

92049-0802

$7.20

92057

CHAIN,DRIVE,EK520SR-O2X106L

92057-0019

$200.06

92058

JOINT-CHAIN,DRIVE

92058-1102

$11.43

92152

COLLAR,17X35X13

92152-0843

$25.81

92152A

COLLAR,17X28(38)X15

92152-0844

$31.28

92152B

COLLAR,17.2X25X121

92152-2387

$16.92

92161

DAMPER,RR HUB SHOCK

92161-0700

$76.06

92200

WASHER,17.3X30X2

92200-1916

$0.95

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90

92210A

NUT,16MM

92210-1651

$5.84

550

PIN-COTTER,4.0X35

550AA4035

$1.57

601

BEARING-BALL,#6203UUC3

601B6203UU

$17.09

601A

BEARING-BALL,#6205G

601B6205G

Unavailable

601B

BEARING-BALL,6303LLUC3/2ASU68

601B6303UU

$29.83

671

O RING

671B2550

$1.61
