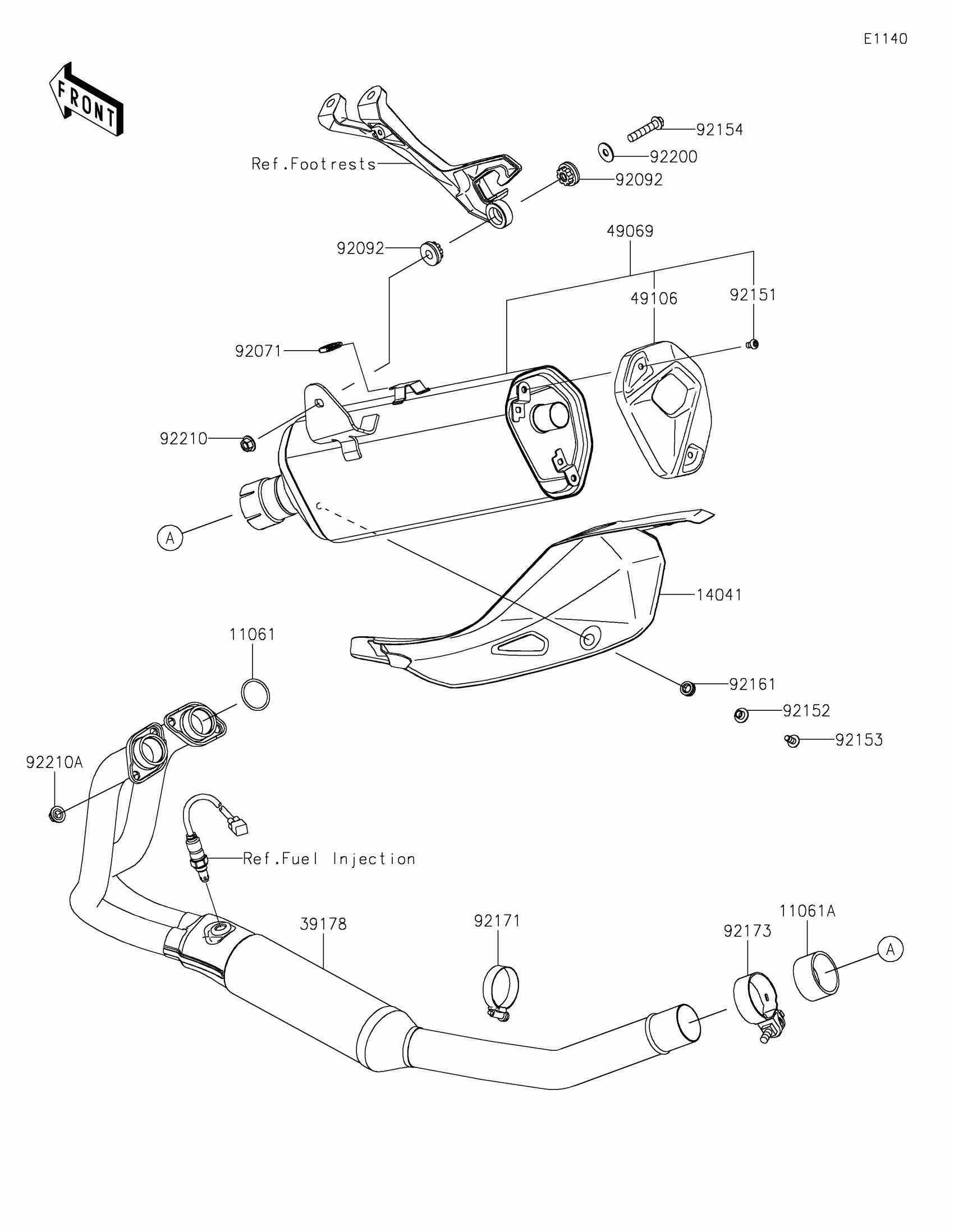

Kawasaki NINJA® 400 ABS Muffler(s) Diagram

Description

Price

11061

GASKET,EXHAUST PIPE

11061-1249

$5.80

11061A

GASKET,EXHAUST PIPE CONNECTING

11061-1266

$24.71

14041

COVER-COMP,MUFFLER

14041-0604

$229.95

39178

MANIFOLD-COMP-EXHAUST

39178-0315

$1,182.25

49069

MUFFLER-ASSY

49069-0846

$920.73

49106

COVER-MUFFLER,END

49106-0827

$76.95

92071

GROMMET

92071-0786

$9.12

92092

BUSHING-RUBBER

92092-0018

$8.78

92151

BOLT,SOCKET,6X10

92151-1449

$1.57

92151A

BOLT,FLANGED,8X40

92151-1532

$1.89

92152

COLLAR,6.3X8.3X16

92152-0286

$4.27

92153

BOLT,SOCKET,6X16

92153-0817

$1.57

92161

DAMPER

92161-2152

$3.15

92171

CLAMP

92171-0058

$9.42

92173

CLAMP

92173-1931

$20.00

92200

WASHER,8.0X22.0X1.5

92200-0174

$1.85

92210

NUT,8MM

92210-0121

$1.62

92210A

NUT,8MM

92210-1114

$1.76
