2019 Kawasaki Ninja® 400 ABS Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2019 Kawasaki Ninja® 400 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

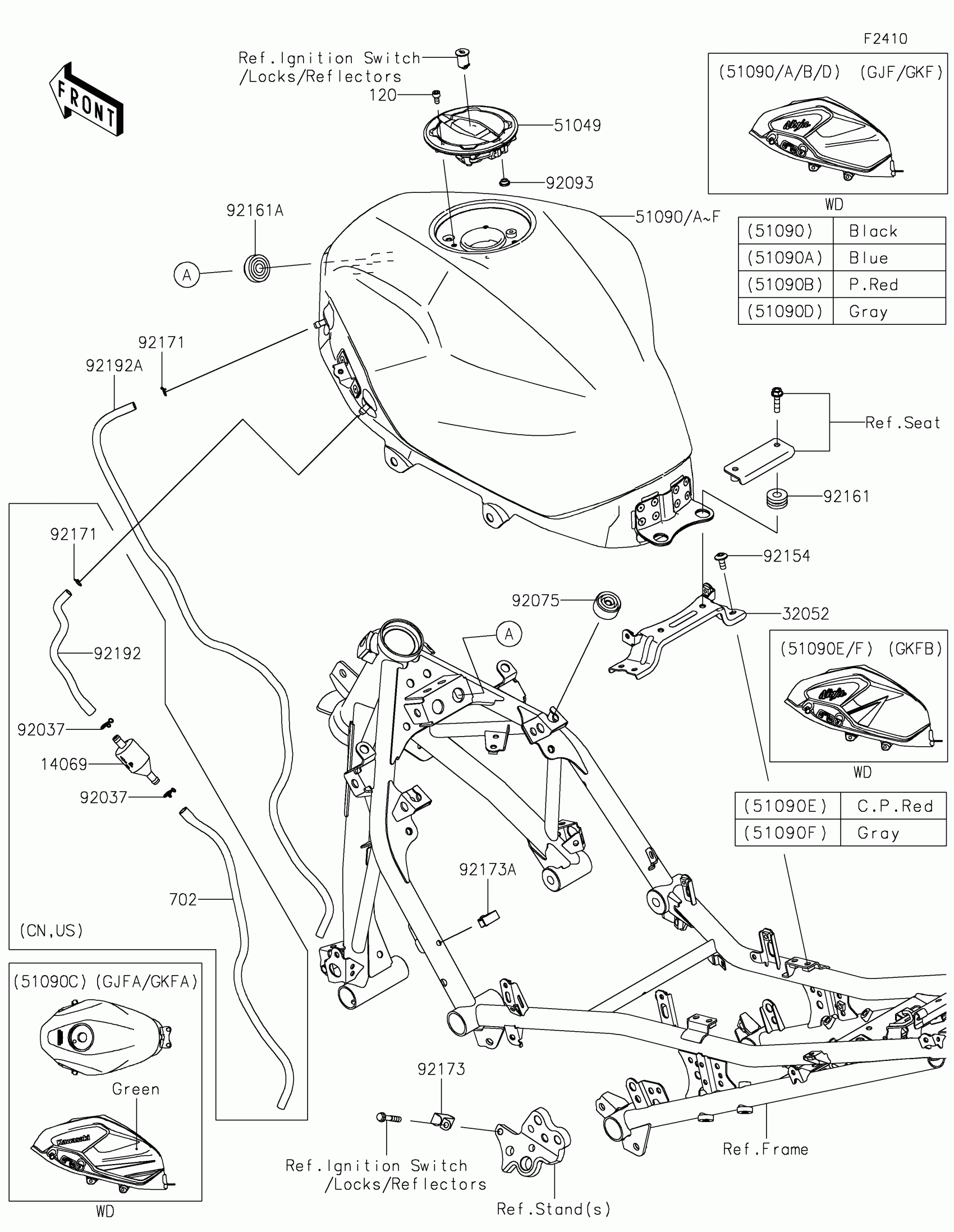

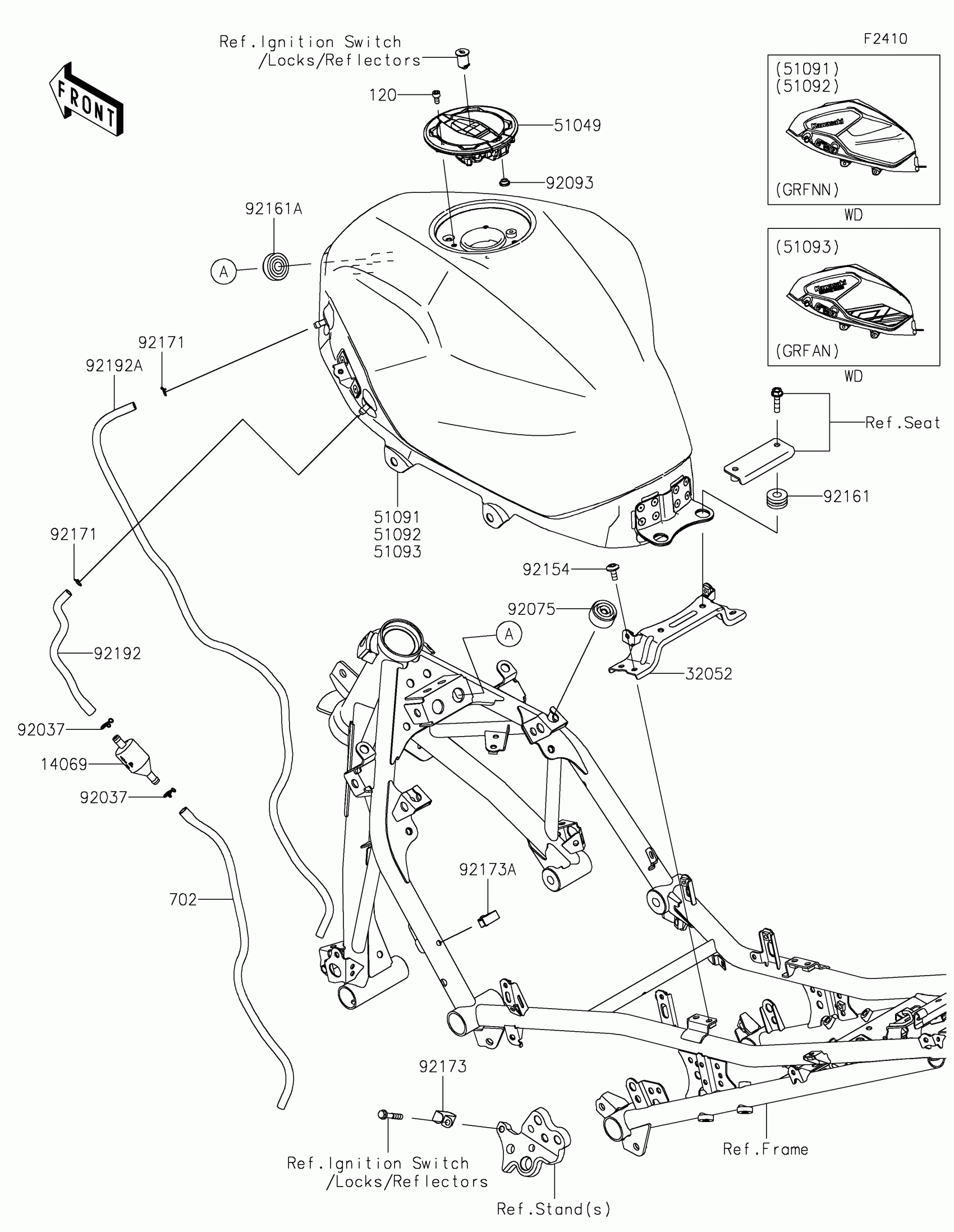

2019 Kawasaki Ninja® 400 ABS Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

51090C

TANK-COMP-FUEL,L.GREEN

51090-5236-777

1
Out of stock

51090D

TANK-COMP-FUEL,P.S.GRAY

51090-5247-36S

1
Out of stock
