2021 Kawasaki Ninja® 400 ABS Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2021 Kawasaki Ninja® 400 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

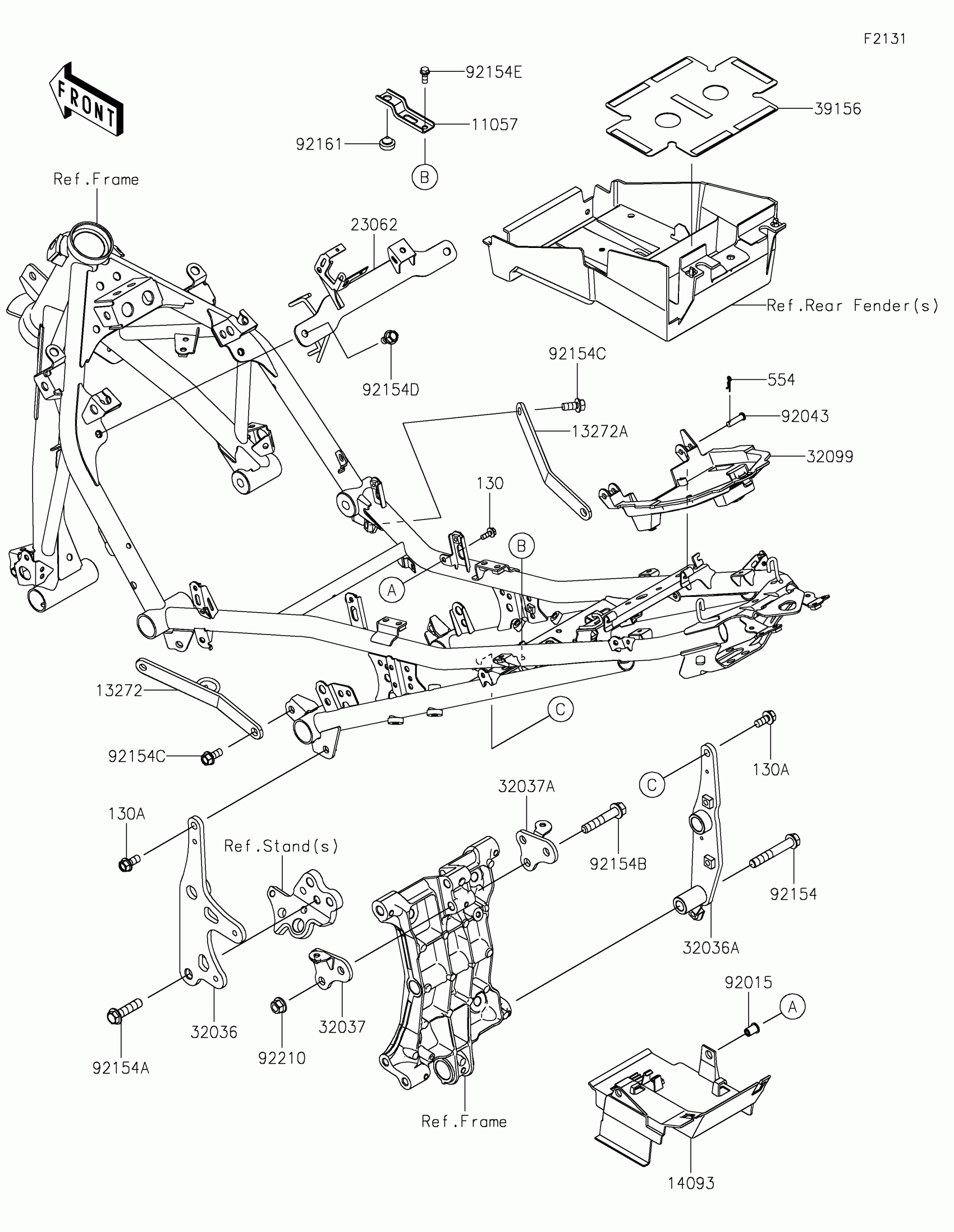

2021 Kawasaki Ninja® 400 ABS Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,BATTERY

11057-1213

1
Out of stock

13272

PLATE,FRAME CONNECT,LH

13272-2435

1
Out of stock

13272A

PLATE,FRAME CONNECT,RH

13272-2552

1
Out of stock

14093

COVER,ECU

14093-0646

1
Out of stock

23062

BRACKET-COMP,CROSS FRAME

23062-0970

1
Out of stock

32036

BRACKET-SWINGARM,LH

32036-0378

1
Out of stock

32036A

BRACKET-SWINGARM,RH

32036-0379

1
Out of stock

32037

BRACKET-SHOCKABSORBER,LH

32037-0407

1
Out of stock

32037A

BRACKET-SHOCKABSORBER,RH

32037-0408

1
Out of stock

32099

CASE,SEAT UNDER

32099-0787

1
Out of stock

39156

PAD,BATTERY CASE

39156-2220

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92043

PIN,6X23

92043-0746

1
Out of stock

92154

BOLT,FLANGED,10X65

92154-1964

1
Out of stock

92154A

BOLT,FLANGED,10X40

92154-2812

1
Out of stock

92154B

BOLT,FLANGED,10X54

92154-2813

1
Out of stock

92154C

BOLT-FLANGED,8X14

92154-3782

1
Out of stock

92154D

BOLT-FLANGED,8X14

92154-3851

1
Out of stock

92154E

BOLT,6X14

92154-4129

1
Out of stock

92161

DAMPER,9.5X18X6

92161-1473

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock

130

BOLT-FLANGED,5X14

130BA0514

1
Out of stock

130A

BOLT-FLANGED,8X18

130CA0818

1
Out of stock

554

PIN-SNAP,1.2X21.2

554DA0600

1
Out of stock
