2014 Kawasaki Ninja® 300 Water Pipe Diagram

← All diagrams

Find the part on the Water Pipe diagram for your 2014 Kawasaki Ninja® 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

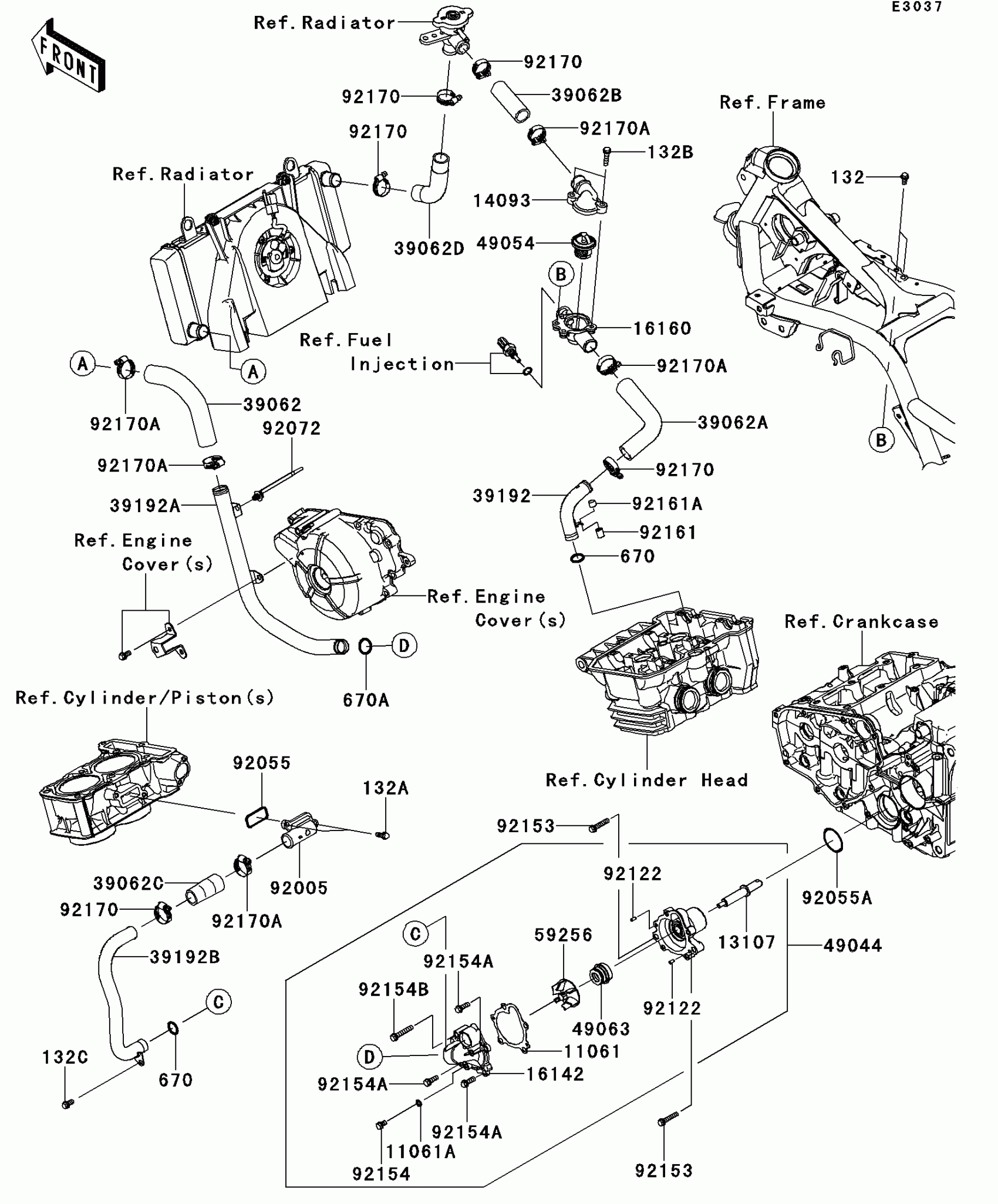

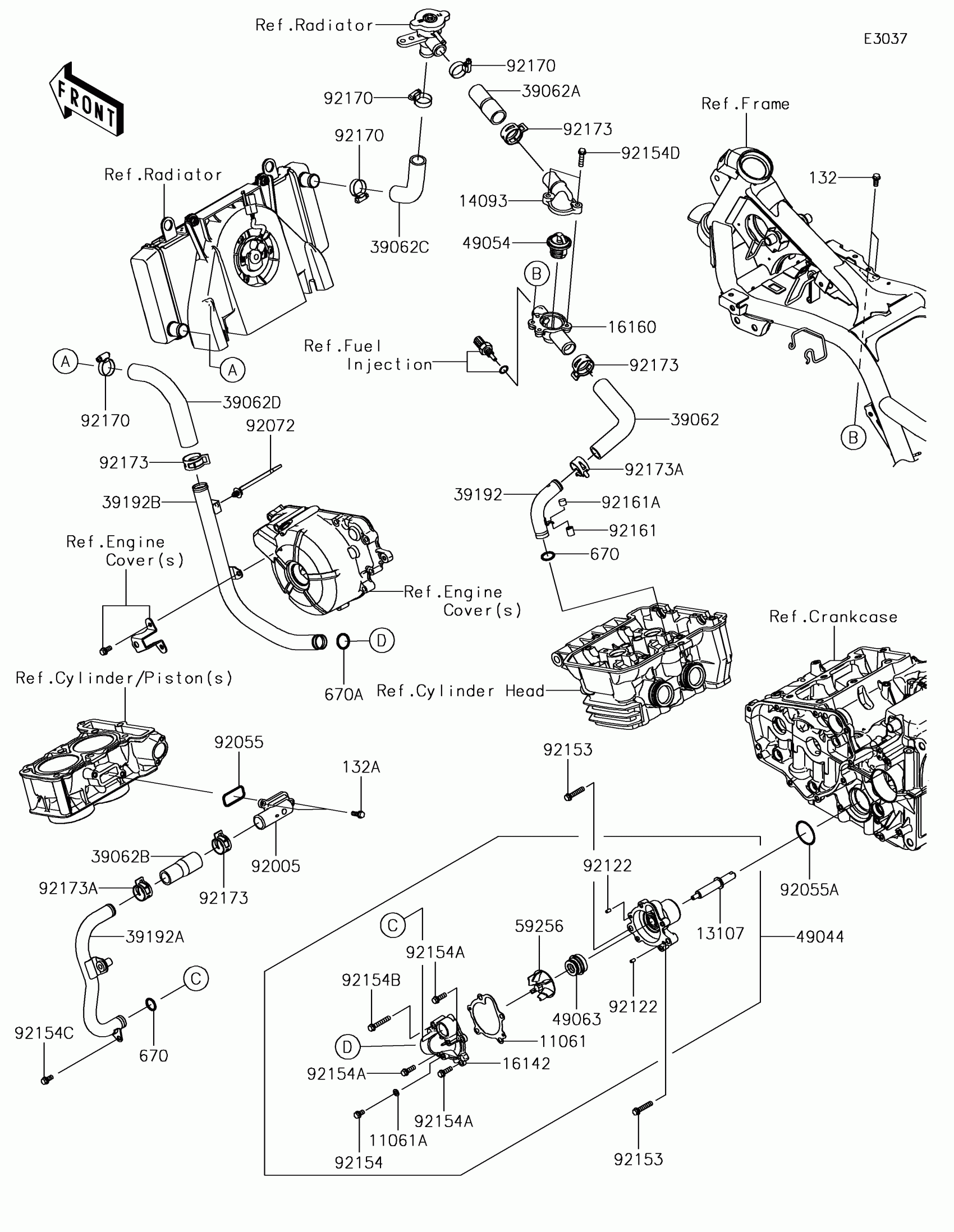

2014 Kawasaki Ninja® 300 Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET

11061-0795

1

$9.23

In stock

11061A

GASKET,DRAIN

11061-0875

1

$4.44

In stock

13107

SHAFT

13107-0742

1

$42.78

In stock

14093

COVER,THERMOSTAT

14093-0010

1
Out of stock

16142

COVER-PUMP

16142-0708

1

$46.27

In stock

16160

BODY,THERMO,LWR

16160-0754

1
Out of stock

39062

HOSE-COOLING,RAD.-W/P

39062-0196

1
Out of stock

39062A

HOSE-COOLING,THERMO.-HEAD

39062-0337

1
Out of stock

39062B

HOSE-COOLING,THERMO.-CAP

39062-0338

1
Out of stock

39062C

HOSE-COOLING,W/P-CYLINDER

39062-0603

1
Out of stock

39062D

HOSE-COOLING,RAD.-CAP

39062-0607

1
Out of stock

39192

PIPE-WATER

39192-0131

1

$38.68

In stock

39192A

PIPE-WATER,RAD.-W/P

39192-0564

1
Out of stock

39192B

PIPE-WATER,W/P-CYLINDER

39192-0565

1
Out of stock

49044

PUMP-WATER

49044-0554

1

$279.76

In stock

49054

THERMOSTAT

49054-1056

1

$51.04

In stock

49063

SEAL-MECHANICAL

49063-1055

1

$18.61

In stock

59256

IMPELLER

59256-0554

1

$22.05

In stock

92005

FITTING,CYLINDER

92005-0737

1
Out of stock

92055

RING-O,2.4MM

92055-0735

1

$3.27

In stock

92055A

RING-O,34.4X3.1

92055-0736

1

$2.19

In stock

92072

1

$2.97

In stock

92122

ROLLER,4X8

92122-0557

1

$1.10

In stock

92153

BOLT,6X30

92153-0832

1
Out of stock

92154

BOLT,FLANGED,6X10

92154-0950

1

$2.19

In stock

92154A

1

$1.10

In stock

92154B

1

$1.68

In stock

92161

DAMPER,10X11.5

92161-0690

1

$3.27

In stock

92161A

DAMPER,10X7.5

92161-0691

1

$1.20

In stock

92170

CLAMP,COOLING HOSE

92170-1033

1

$11.99

In stock

92170A

CLAMP,HOSE,32MM

92170-1286

1
Out of stock

132

1

$1.31

In stock

132A

1

$1.21

In stock

132B

1

$2.29

In stock

132C

1

$1.73

In stock

670

O RING,16MM

670B2016

1

$1.20

In stock

670A

O RING,18MM

670B2018

1

$1.25

In stock
