2014 Kawasaki Ninja® 300 Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2014 Kawasaki Ninja® 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

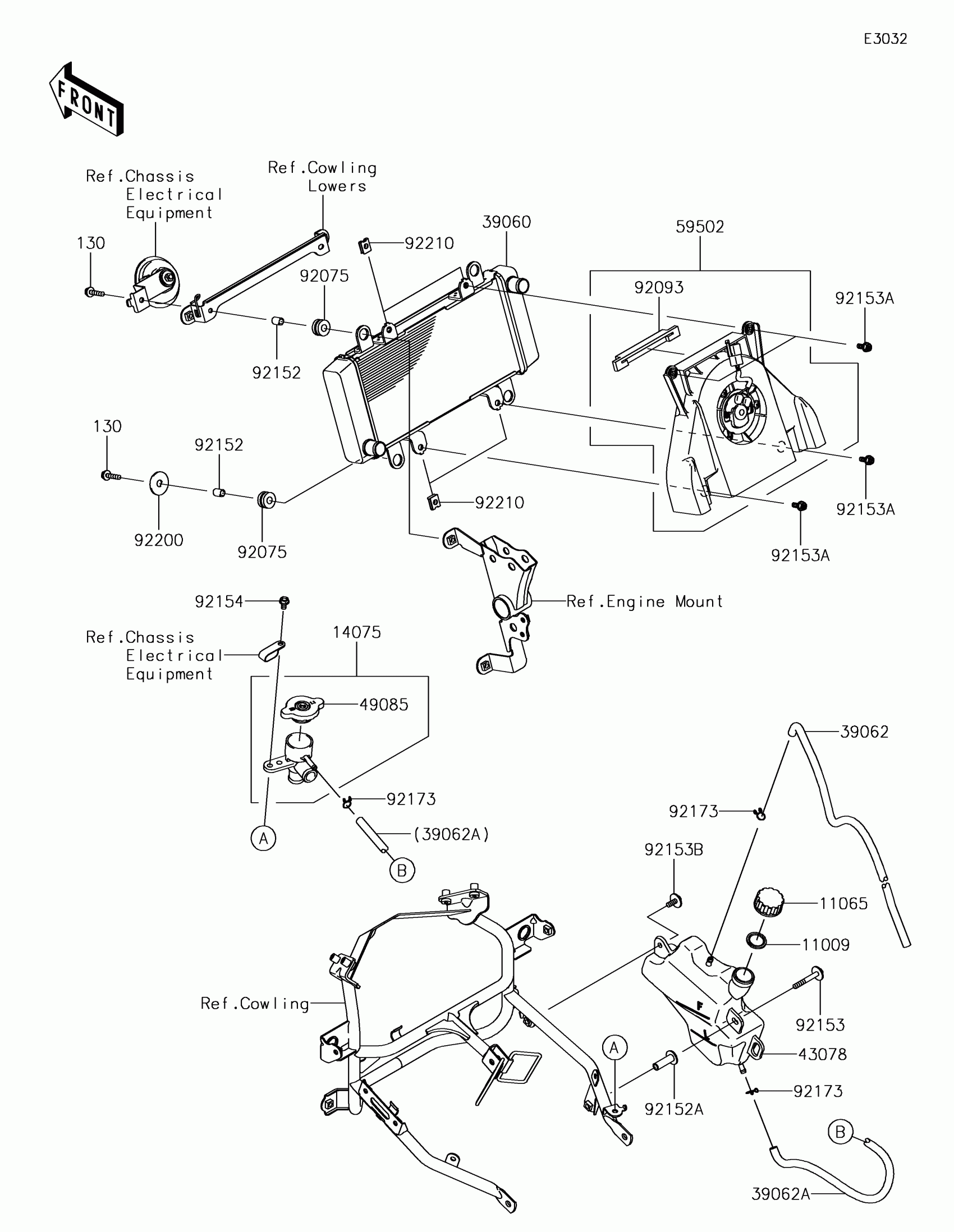

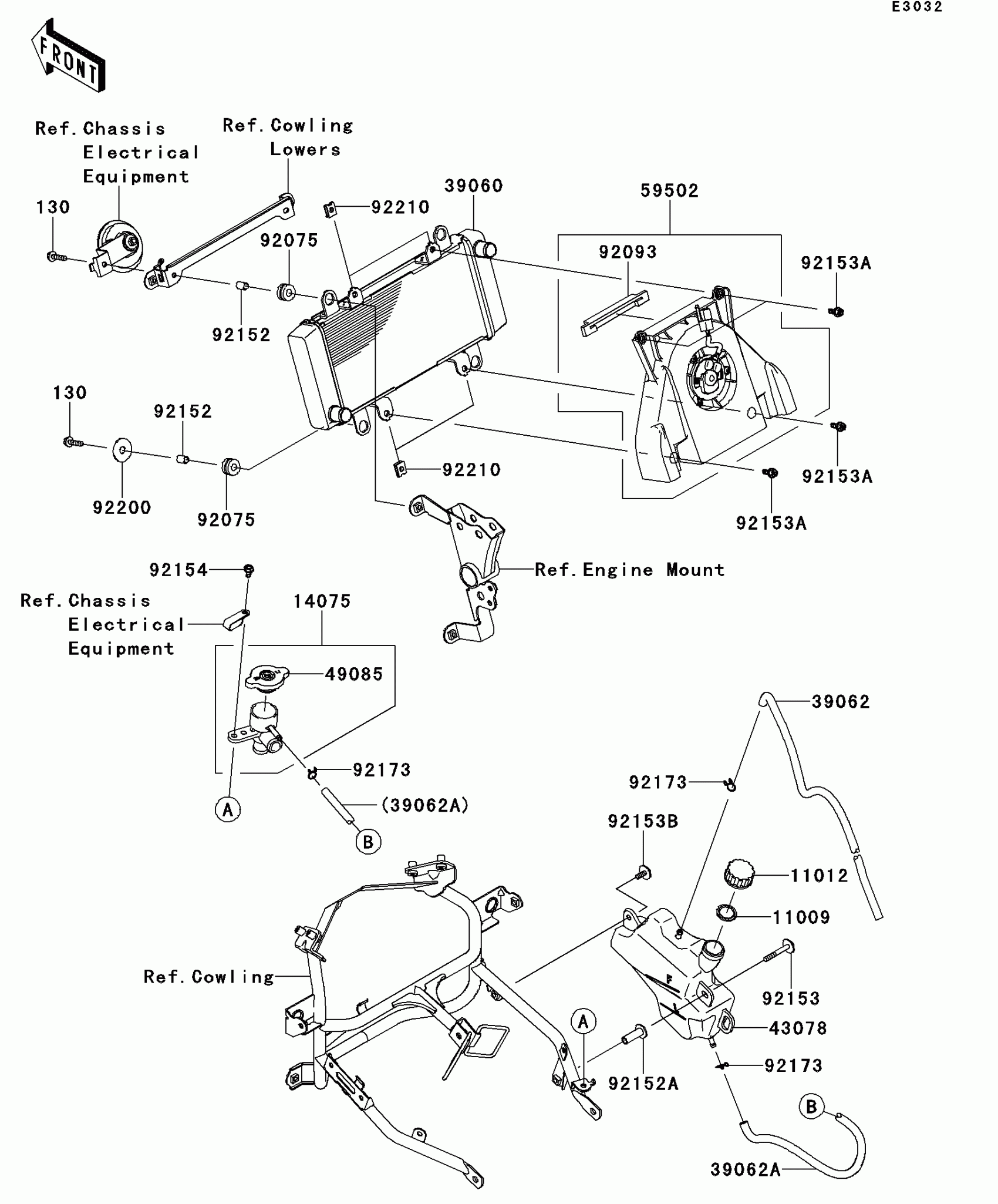

2014 Kawasaki Ninja® 300 Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11012

CAP

11012-1084

1

$1.31

In stock

14075

CAP-ASSY,RADIATOR

14075-1061

1

$151.97

In stock

39060

RADIATOR

39060-0710

1

$630.94

In stock

39062

1

$39.39

In stock

39062A

1

$31.30

In stock

43078

RESERVOIR

43078-0558

1

$37.02

In stock

49085

CAP-ASSY-PRESSURE

49085-1066

1

$33.98

In stock

59502

FAN-ASSY

59502-0050

1

$573.57

In stock

92075

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92093

SEAL

92093-0587

1

$7.51

In stock

92152

COLLAR,6.8X10X13

92152-0846

1

$3.20

In stock

92152A

COLLAR,L=29

92152-1591

1
Out of stock

92153

BOLT,6X45

92153-0003

1
Out of stock

92153A

BOLT

92153-0531

1
Out of stock

92153B

1

$1.53

In stock

92154

BOLT,UPSET-WP,6X16

92154-0961

1

$1.10

In stock

92173

CLAMP

92173-0050

1

$5.75

In stock

92200

WASHER,6.5X24X1.6

92200-0789

1
Out of stock

92210

NUT

92210-1323

1
Out of stock

130

BOLT-FLANGED,6X25

130BA0625

1

$1.01

In stock
