2017 Kawasaki Ninja 300 Crankcase Bolt Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt Pattern diagram for your 2017 Kawasaki Ninja 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

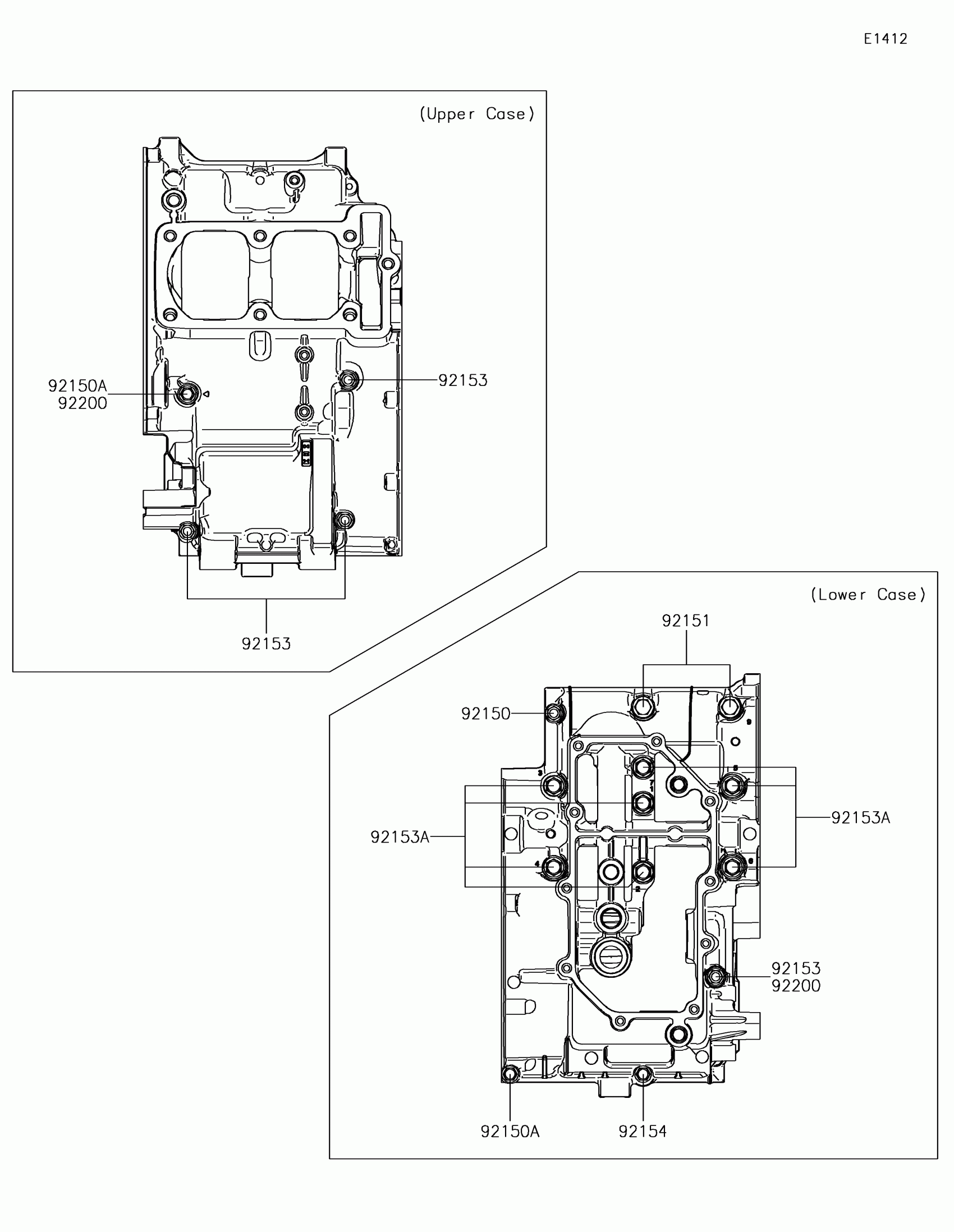

2017 Kawasaki Ninja 300 Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92150

BOLT,6X38

92150-1301

1
Out of stock

92150A

BOLT,6X60

92150-1548

1
Out of stock

92151

BOLT,8X73

92151-1462

1
Out of stock

92153

BOLT,6X85,WHITE

92153-0927

1
Out of stock

92153A

BOLT,FLANGED,8X90

92153-1632

1
Out of stock

92154

BOLT,FLANGED,6X135

92154-1189

1
Out of stock

92200

WASHER,6.3X13.5X1

92200-0788

1
Out of stock
