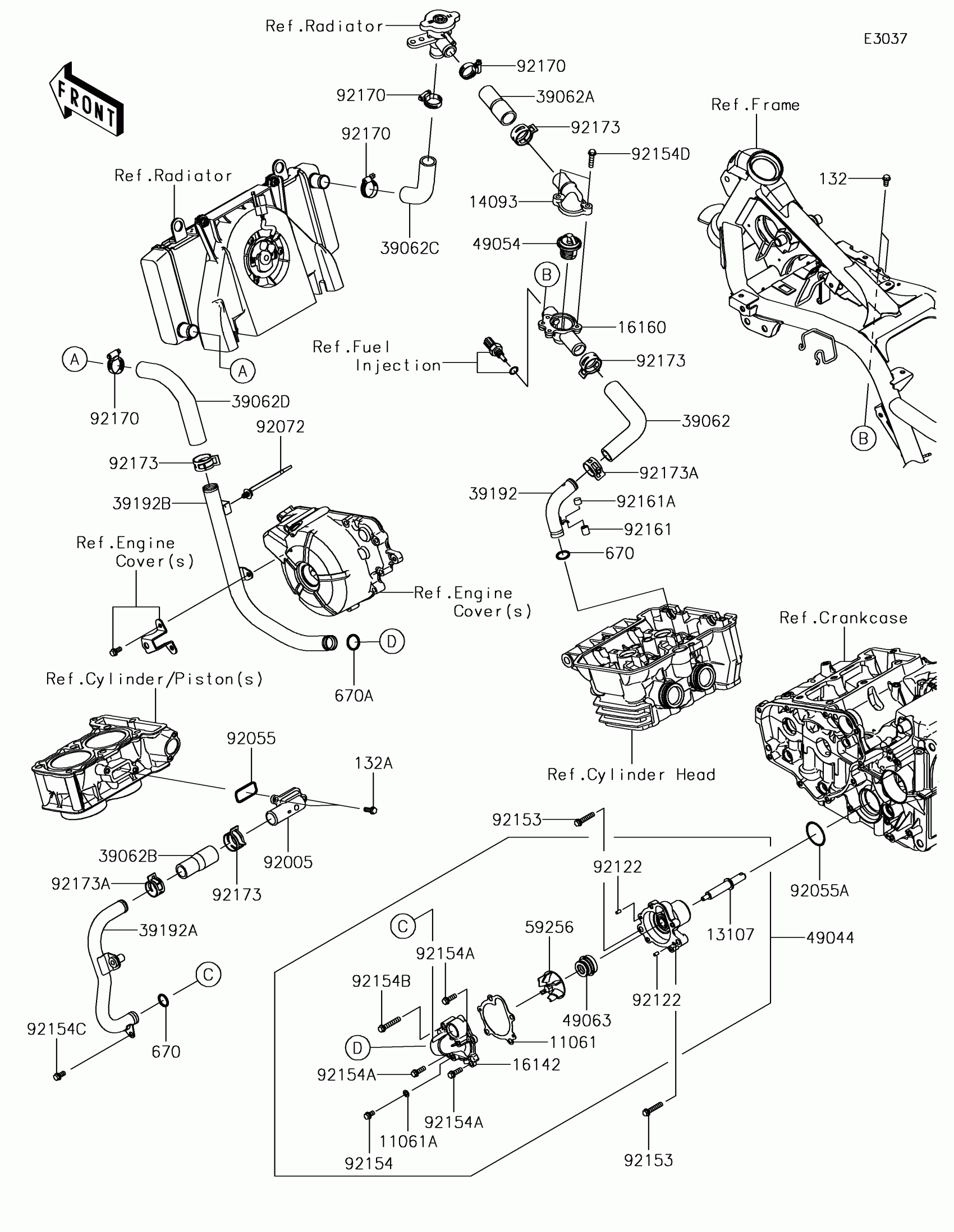

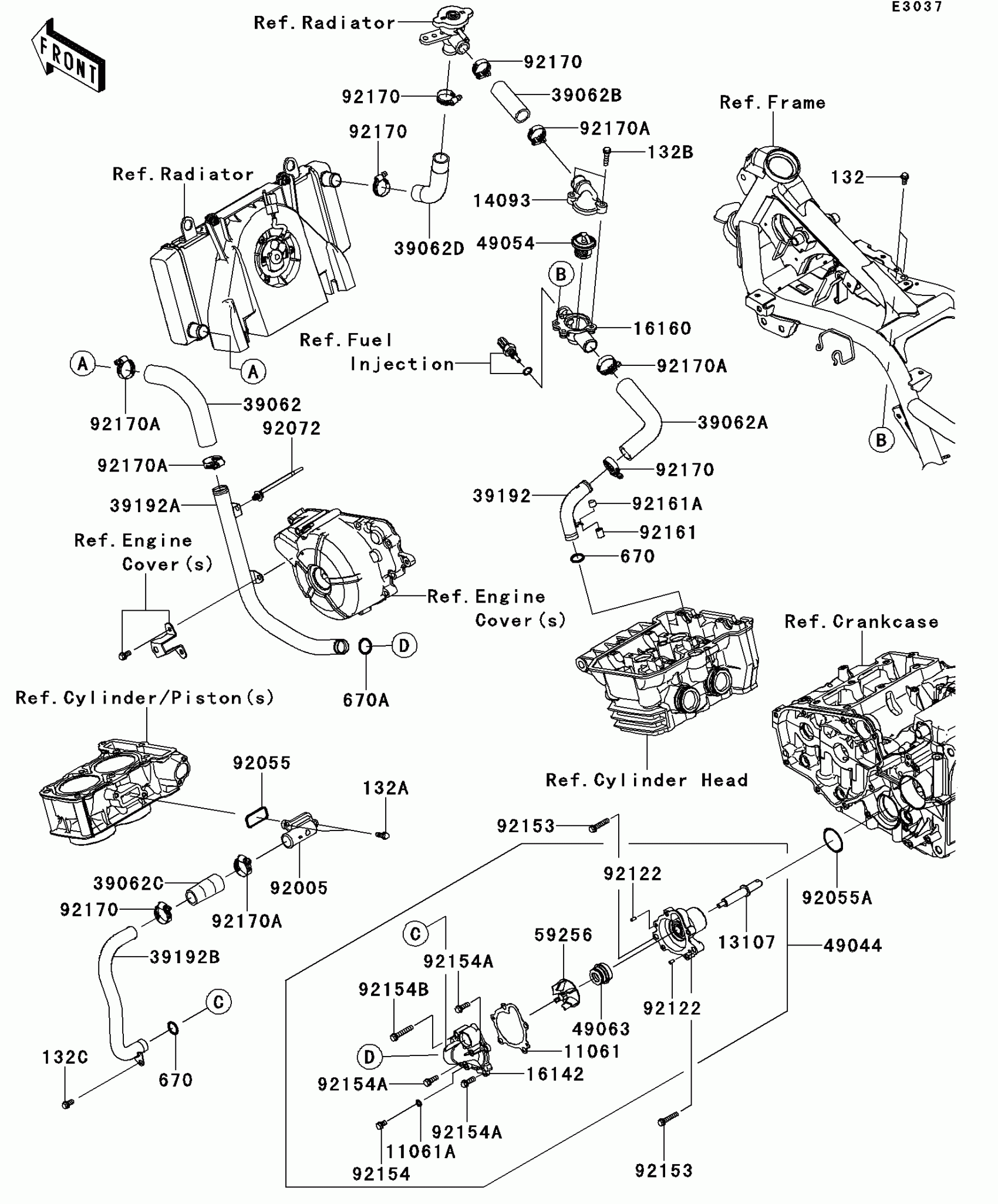

Kawasaki NINJA® 300 ABS Water Pipe Diagram

#

Description
Price

11061

GASKET

11061-0795

$8.85

11061A

GASKET,DRAIN

11061-0875

$4.24

13107

SHAFT

13107-0742

$42.78

14093

COVER,THERMOSTAT

14093-0010

Unavailable

16142

COVER-PUMP

16142-0708

$46.27

16160

BODY,THERMO,LWR

16160-0754

Unavailable

39062

HOSE-COOLING,RAD.-W/P

39062-0196

Unavailable

39062A

HOSE-COOLING,THERMO.-HEAD

39062-0337

Unavailable

39062B

HOSE-COOLING,THERMO.-CAP

39062-0338

Unavailable

39062C

HOSE-COOLING,W/P-CYLINDER

39062-0603

Unavailable

39062D

HOSE-COOLING,RAD.-CAP

39062-0607

Unavailable

39192

PIPE-WATER

39192-0131

$38.68

39192A

PIPE-WATER,RAD.-W/P

39192-0564

Unavailable

39192B

PIPE-WATER,W/P-CYLINDER

39192-0565

Unavailable

49044

PUMP-WATER

49044-0554

$279.76

49054

THERMOSTAT

49054-1056

$49.86

49063

SEAL-MECHANICAL

49063-1055

$16.33

59256

IMPELLER

59256-0554

$19.31

92005

FITTING,CYLINDER

92005-0737

$21.73

92055

RING-O,2.4MM

92055-0735

$3.27

92055A

RING-O,34.4X3.1

92055-0736

$1.89

92072

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92122

ROLLER,4X8

92122-0557

$1.10

92153

BOLT,6X30

92153-0832

$2.98

92154

BOLT,FLANGED,6X10

92154-0950

$2.19

92154A

BOLT,FLANGED-SMALL,6X18

92154-1062

$1.10

92154B

BOLT,FLANGED-SMALL,6X35

92154-1063

$1.44

92161

DAMPER,10X11.5

92161-0690

$3.27

92161A

DAMPER,10X7.5

92161-0691

$1.20

92170

CLAMP,COOLING HOSE

92170-1033

$11.50

92170A

CLAMP,HOSE,32MM

92170-1286

Unavailable

132

BOLT-FLANGED-SMALL,6X14

132BA0614

$1.13

132A

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.16

132B

BOLT-FLANGED-SMALL,6X25

132BA0625

$1.98

132C

BOLT-FLANGED-SMALL,6X12

132BB0612

$1.49

670

O RING,16MM

670B2016

$1.04

670A

O RING,18MM

670B2018

$1.08
