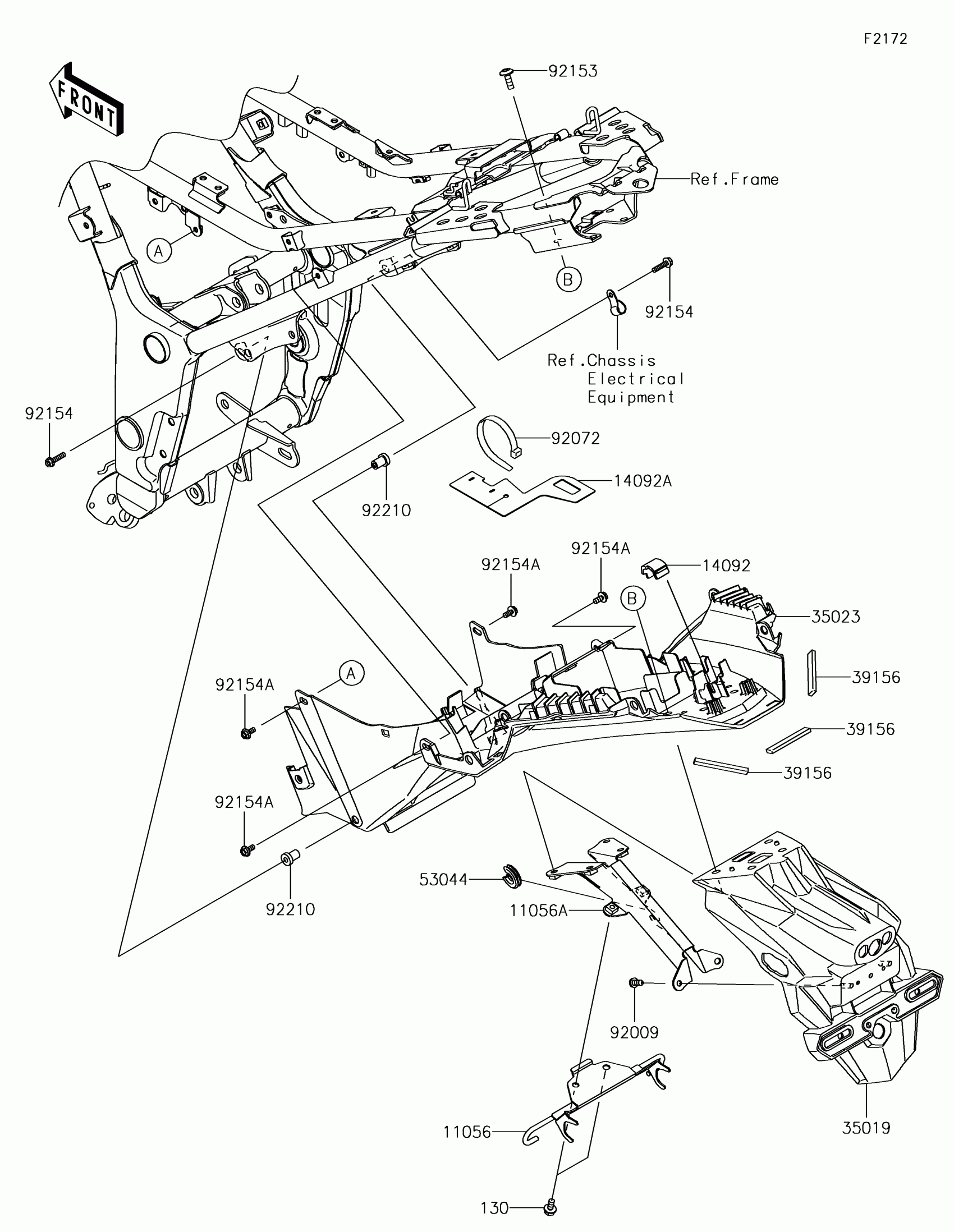

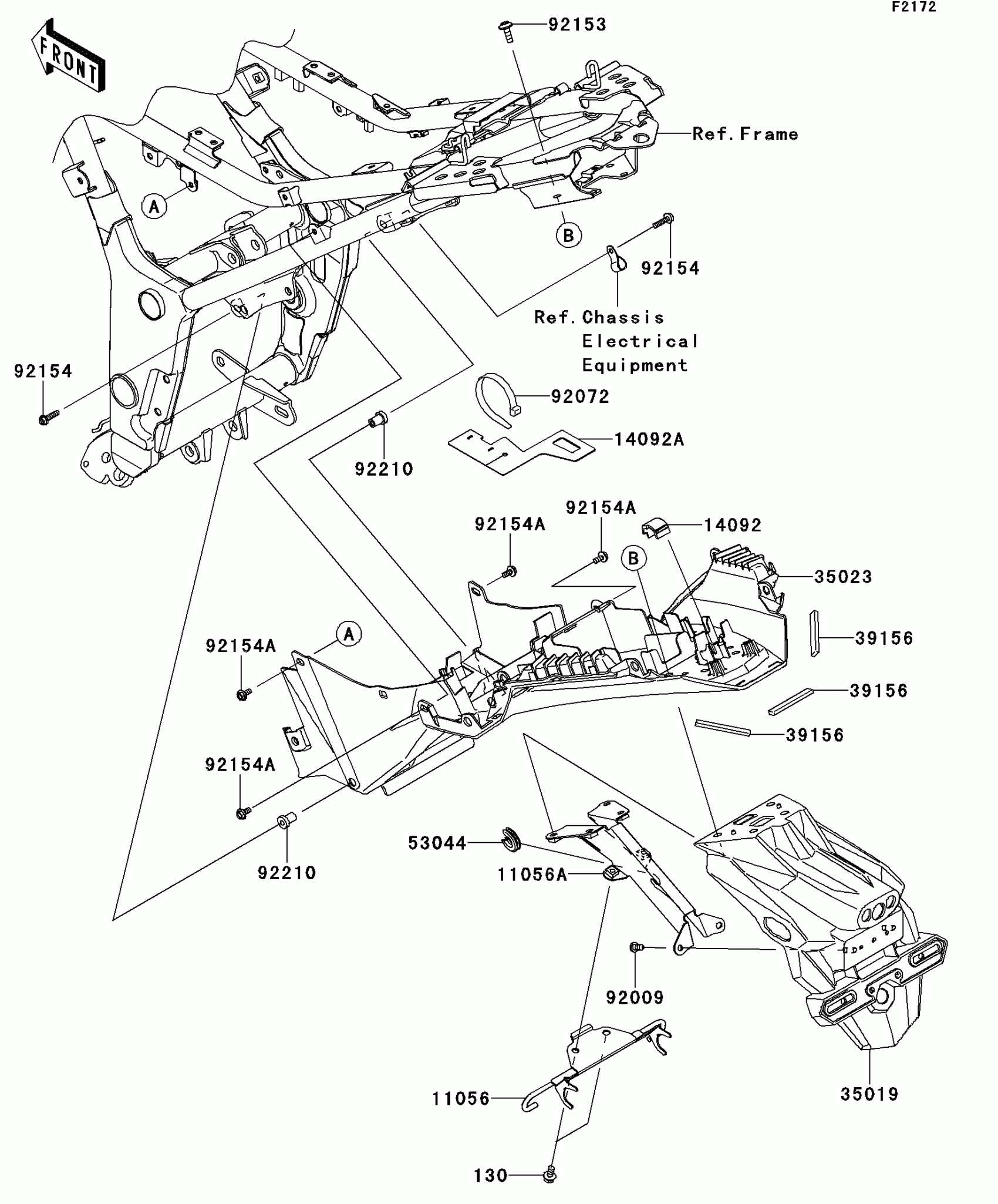

Kawasaki NINJA® 300 ABS Rear Fender(s) Diagram

Description

Price

11056

BRACKET,FLAP,HOOK

11056-1569

$14.39

11056A

BRACKET,FLAP

11056-2310

$41.96

14092

COVER

14092-0951

$2.17

14092A

COVER,RR FENDER

14092-1079

$7.07

35019

FLAP

35019-0566

$61.26

35023

FENDER-REAR

35023-0340

$108.04

39156

PAD,9X60X4

39156-0820

$1.10

53044

TRIM

53044-0565

$2.68

92009

SCREW,6X14

92009-3845

$1.00

92072

BAND,L=202

92072-1195

$1.16

92153

BOLT,6X18

92153-0816

$1.57

92154

BOLT,FLANGED,5X20

92154-1002

$1.10

92154A

BOLT,FLANGED,5X12

92154-1003

$0.95

92210

NUT,5MM

92210-0001

$4.65

130

BOLT-FLANGED,6X12

130BA0612

$1.25
