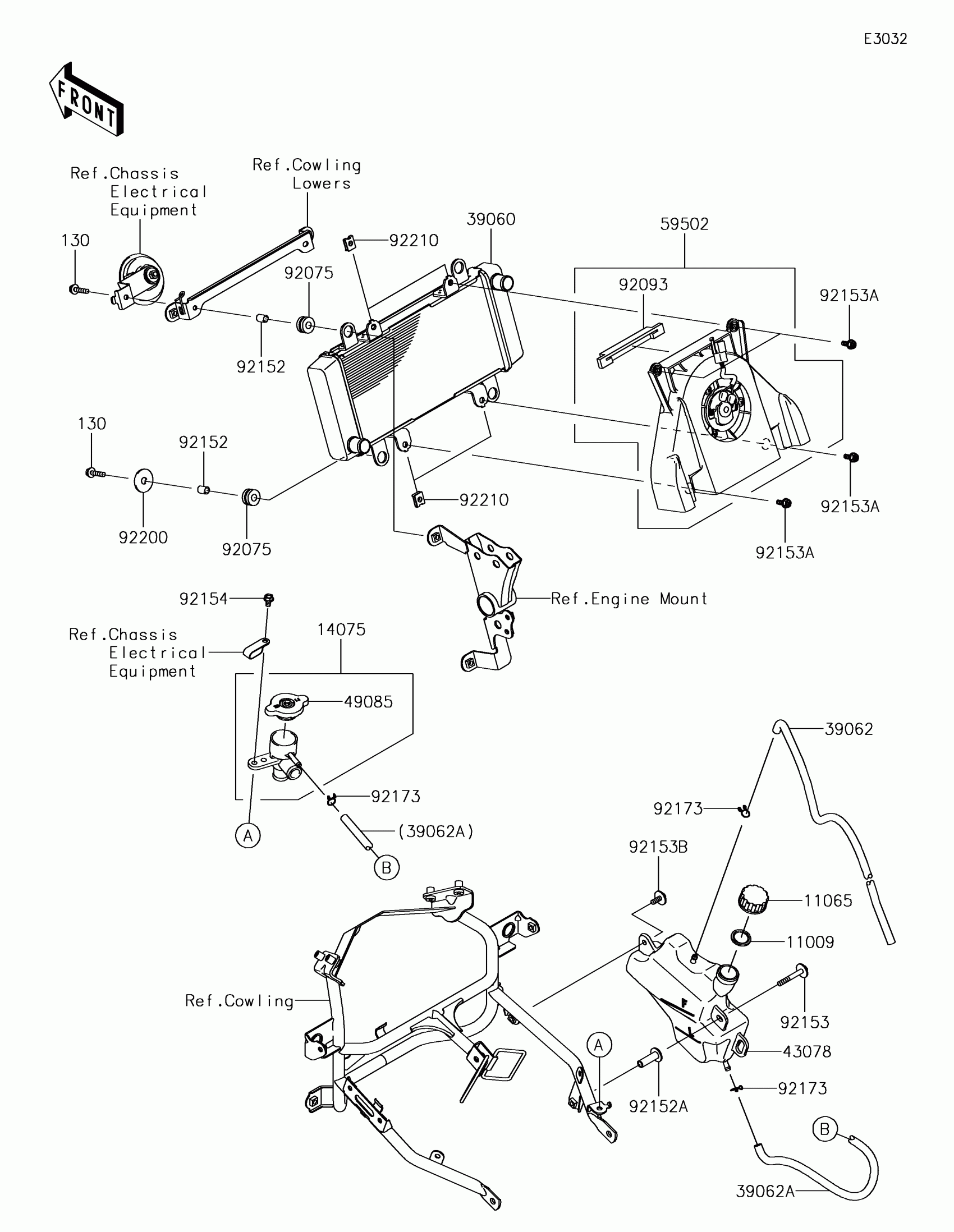

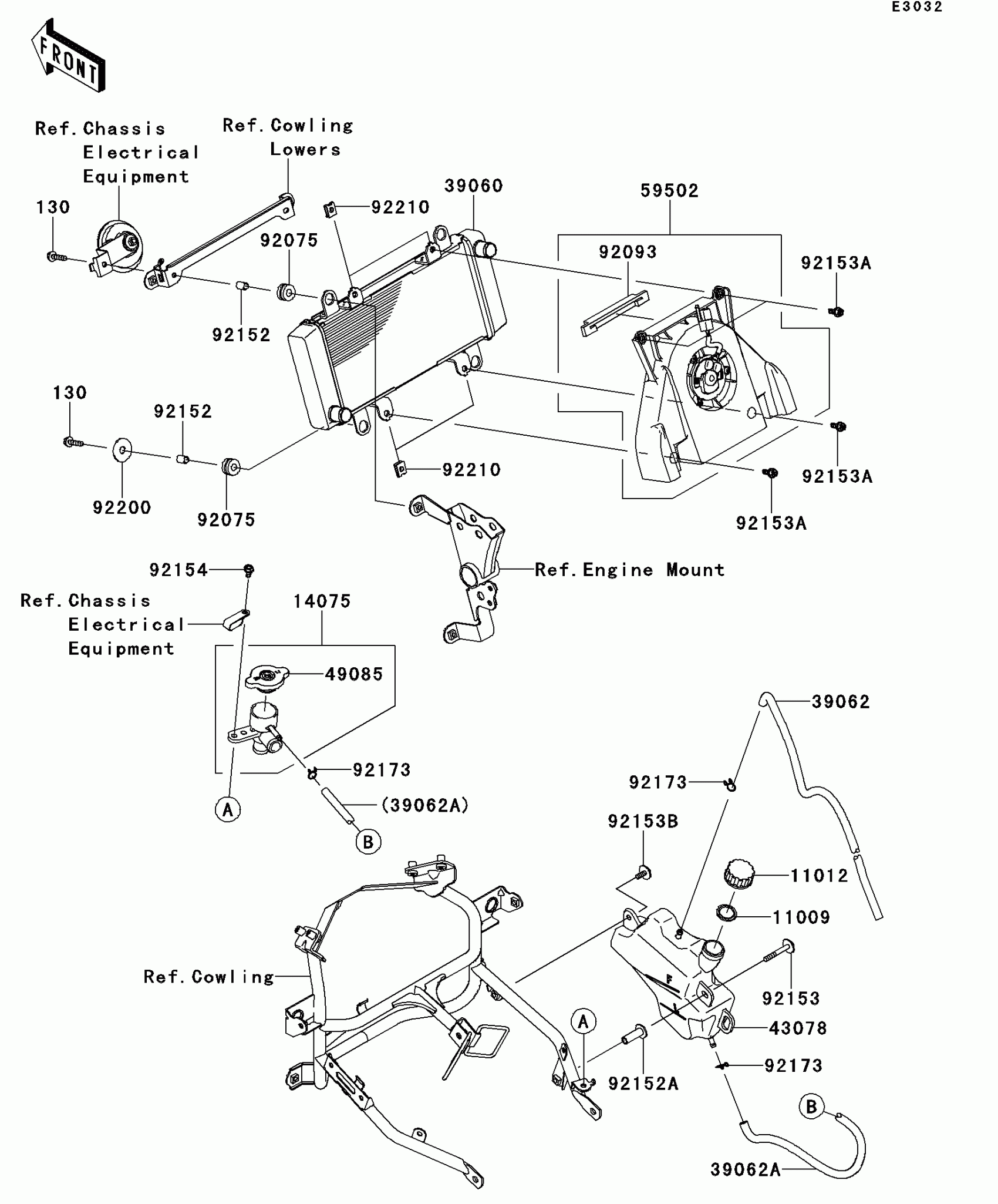

Kawasaki NINJA® 300 ABS Radiator Diagram

Description

Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

14075

CAP-ASSY,RADIATOR

14075-1061

$151.97

39060

RADIATOR

39060-0710

$630.94

39062

HOSE-COOLING,OVERFLOW

39062-0335

$39.39

39062A

HOSE-COOLING,RESERVOIR

39062-0629

$31.30

43078

RESERVOIR

43078-0558

$36.16

49085

CAP-ASSY-PRESSURE

49085-1066

$33.19

59502

FAN-ASSY

59502-0050

$573.57

92075

DAMPER,10X24X12

92075-1690

$3.81

92093

SEAL

92093-0587

$7.51

92152

COLLAR,6.8X10X13

92152-0846

$3.20

92152A

COLLAR,L=29

92152-1591

$3.27

92153

BOLT,6X45

92153-0003

$1.59

92153A

BOLT

92153-0531

$1.85

92153B

BOLT,FLANGED-SMALL,6X16

92153-1798

$1.53

92154

BOLT,UPSET-WP,6X16

92154-0961

$1.10

92173

CLAMP

92173-0050

$5.75

92200

WASHER,6.5X24X1.6

92200-0789

$1.44

92210

NUT

92210-1323

$3.19

130

BOLT-FLANGED,6X25

130BA0625

$0.97
