2014 Kawasaki Ninja® 300 ABS Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2014 Kawasaki Ninja® 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

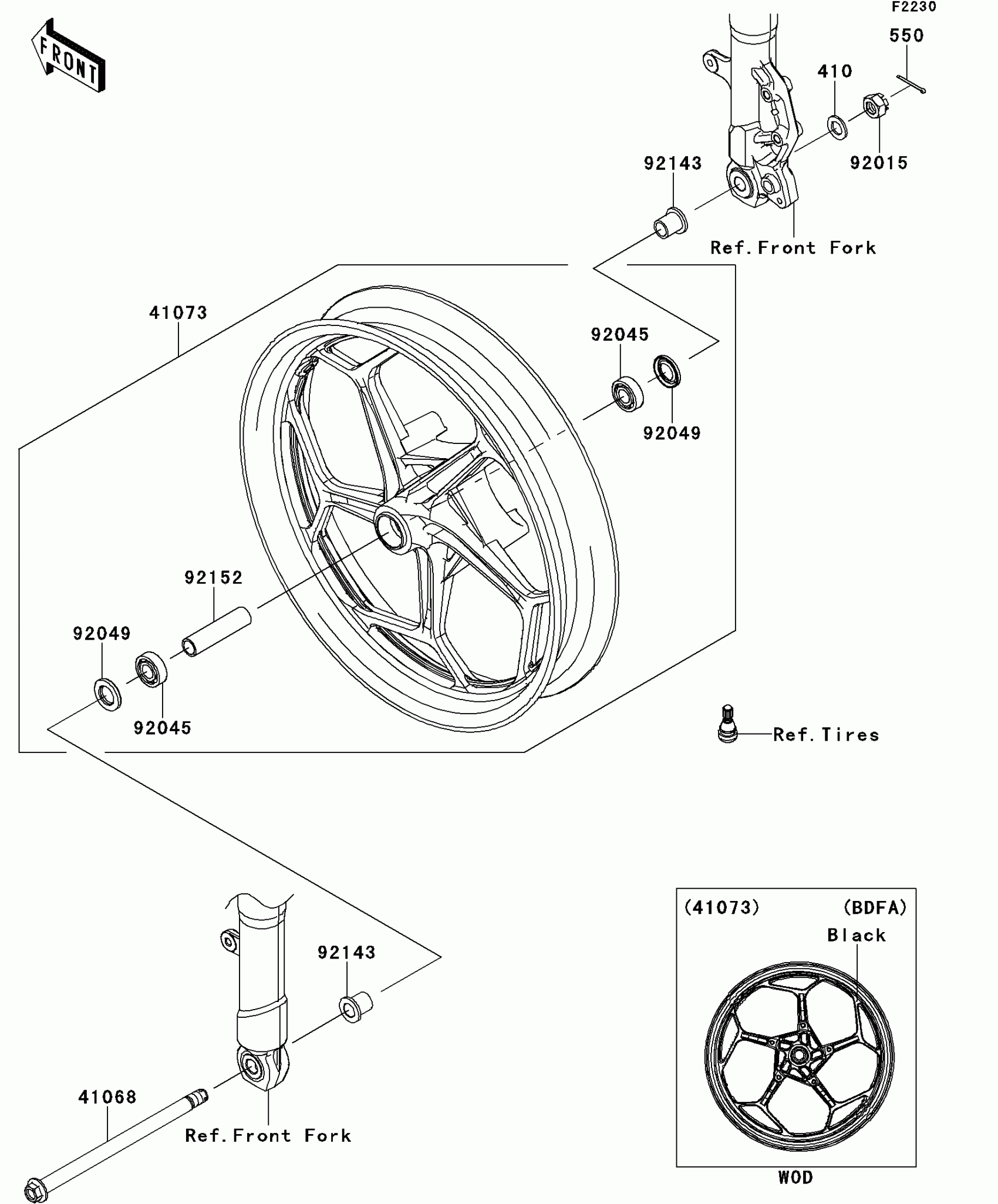

2014 Kawasaki Ninja® 300 ABS Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41068

AXLE,FR

41068-0024

1
Out of stock

41073

WHEEL-ASSY,FR,BLACK

41073-0589-R2

1
Out of stock

92015

NUT,CASTLE,14MM

92015-1765

1
Out of stock

92045

BEARING-BALL,15X35X11

92045-0734

1
Out of stock

92049

SEAL-OIL

92049-0136

1
Out of stock

92143

COLLAR,FR AXLE,L=24

92143-1187

1
Out of stock

92152

COLLAR,15.1X20X80

92152-1586

1
Out of stock

410

WASHER-PLAIN-SMALL,14MM

410AA1400

1
Out of stock

550

PIN-COTTER,3.0X30

550AA3030

1
Out of stock
