2014 Kawasaki Ninja® 300 ABS Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2014 Kawasaki Ninja® 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

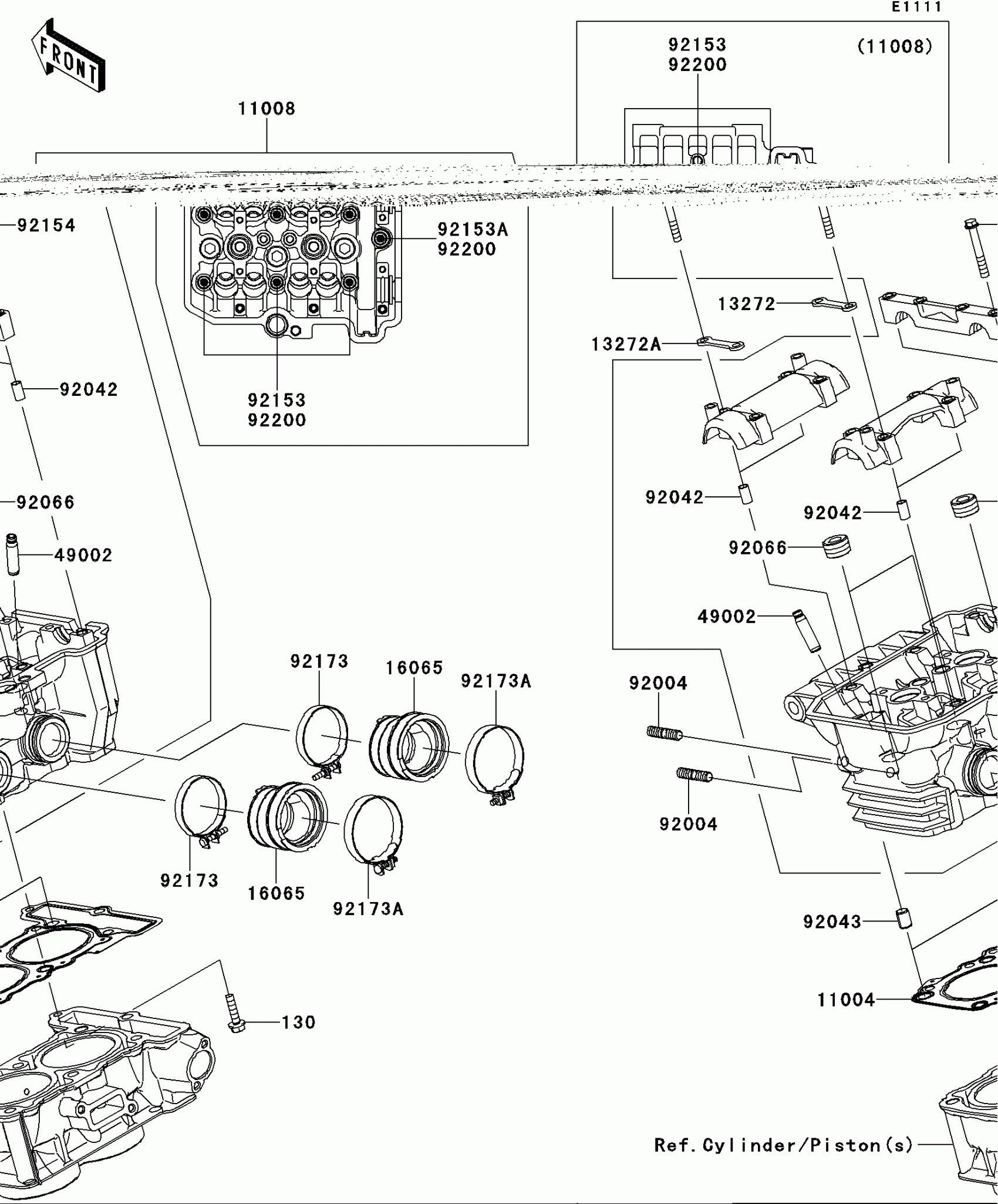

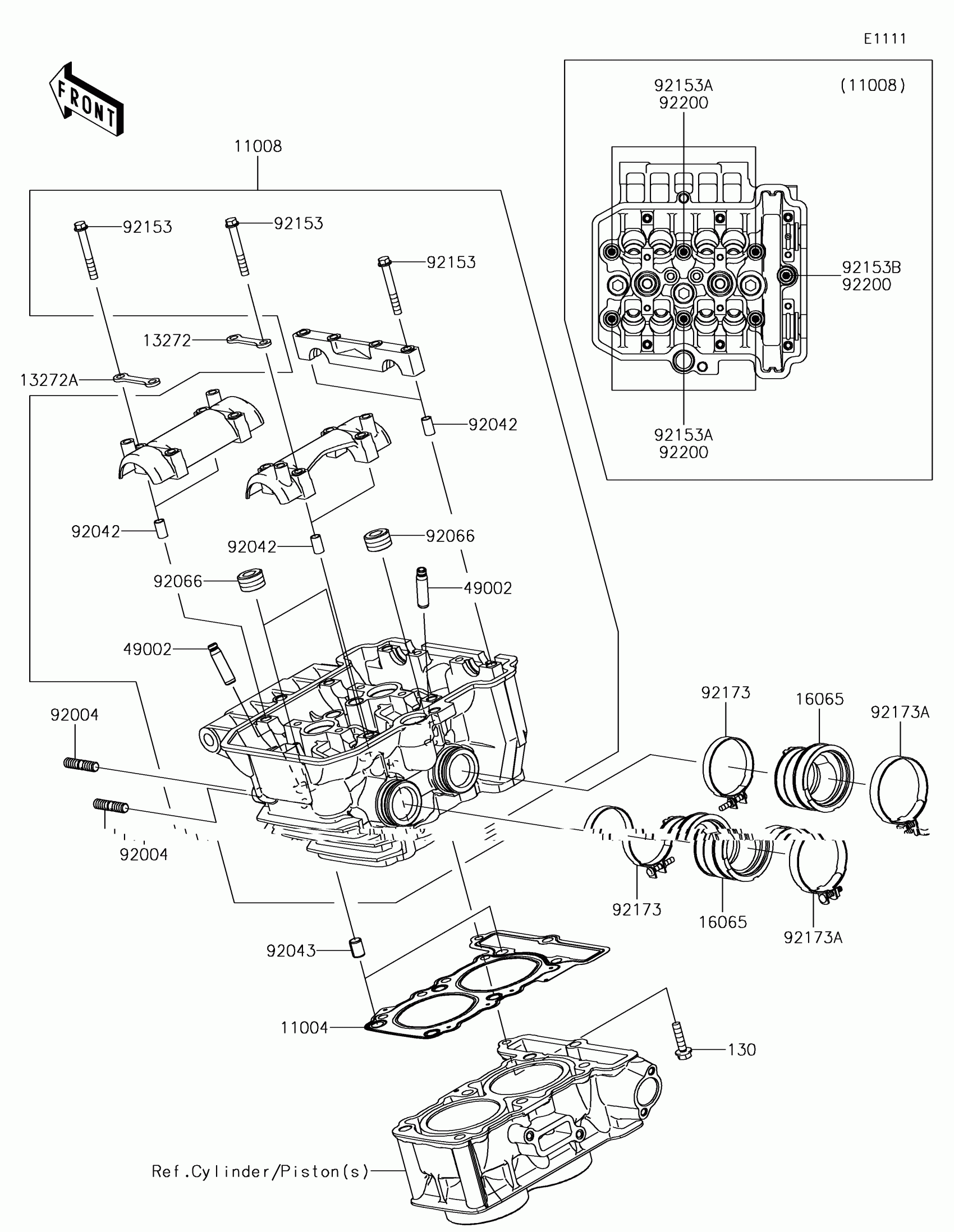

2014 Kawasaki Ninja® 300 ABS Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-0734

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-0747

1
Out of stock

13272

PLATE,IN

13272-0260

1

$8.46

In stock

13272A

PLATE,EX

13272-0261

1

$8.46

In stock

16065

HOLDER-CARBURETOR

16065-0119

1
Out of stock

49002

GUIDE-VALVE

49002-0009

1
Out of stock

92004

STUD,8X22

92004-0040

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92043

PIN,8.2X10X14

92043-1264

1
Out of stock

92066

PLUG,PT1/2X12.5

92066-0002

1
Out of stock

92153

BOLT,SOCKET,8X146

92153-1774

1
Out of stock

92153A

BOLT,SOCKET,8X115

92153-1775

1
Out of stock

92154

BOLT,6X45

92154-0246

1
Out of stock

92173

CLAMP,47MM

92173-0919

1
Out of stock

92173A

CLAMP,53MM

92173-0956

1
Out of stock

92200

WASHER,8.5X18X1.6

92200-0860

1
Out of stock

130

BOLT-FLANGED,6X25

130BB0625

1

$1.92

In stock
