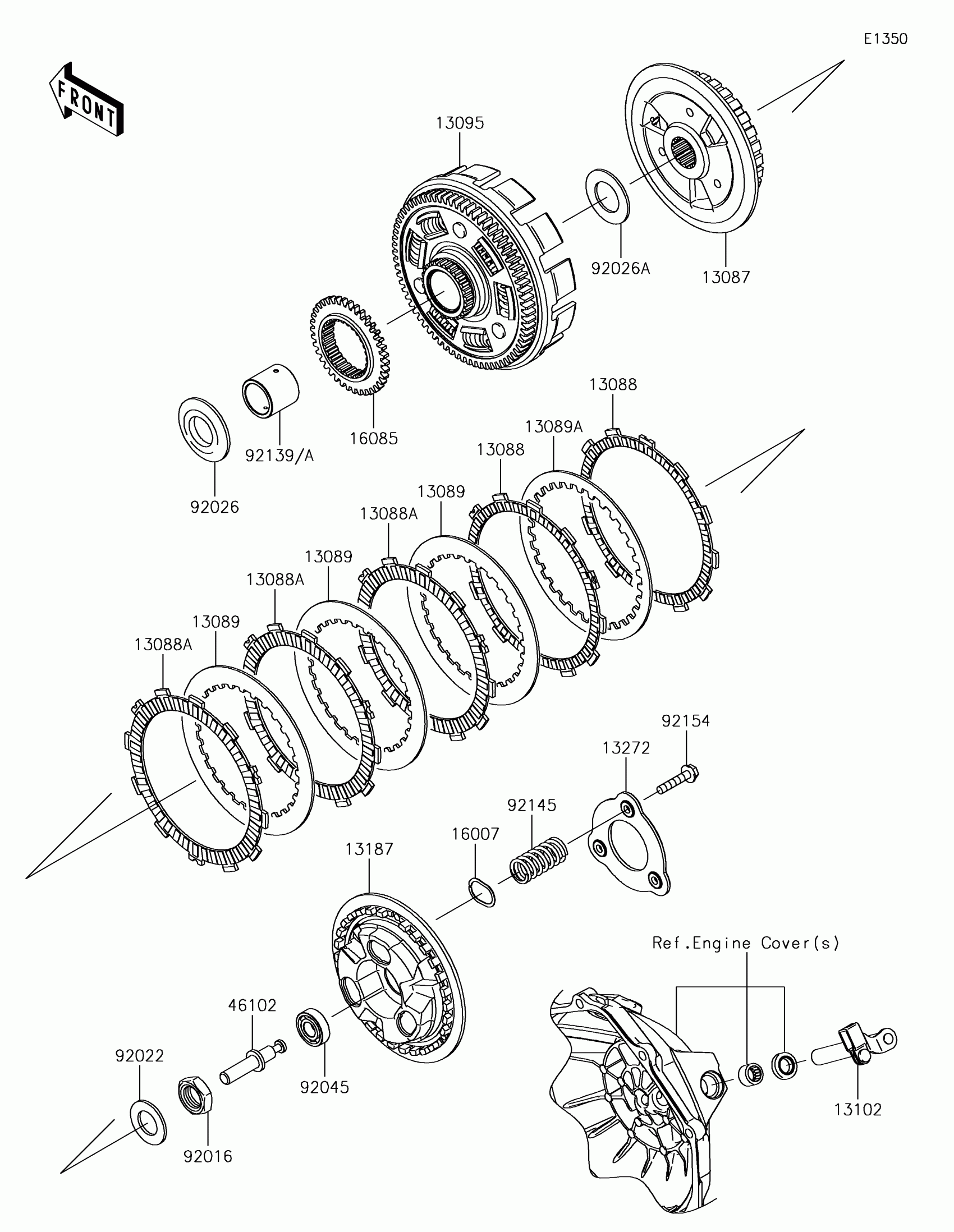

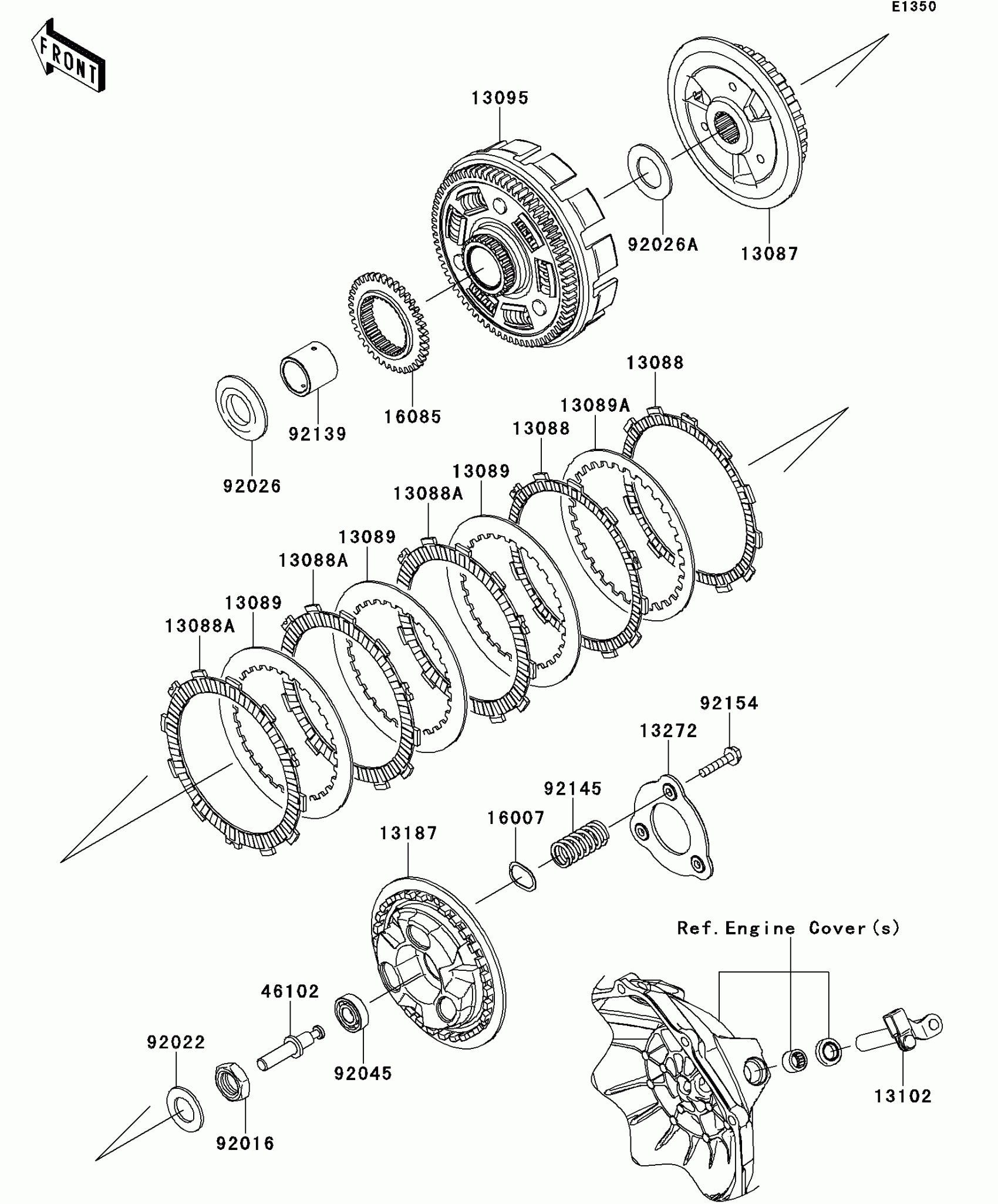

Kawasaki NINJA® 300 ABS Clutch Diagram

Description

Price

13087

HUB-CLUTCH

13087-0558

$109.11

13088

PLATE-FRICTION

13088-0557

$12.08

13088A

PLATE-FRICTION

13088-0558

$12.45

13089

PLATE-CLUTCH,T=2.0

13089-0021

$8.97

13089A

PLATE-CLUTCH

13089-0558

$9.02

13095

HOUSING-COMP-CLUTCH

13095-0561

$485.97

13102

RELEASE-COMP-CLUTCH

13102-0040

$61.78

13187

PLATE-CLUTCH OPERATING

13187-0553

$99.01

13272

PLATE

13272-1303

$18.05

16007

SEAT-SPRING

16007-0708

$3.24

16085

GEAR,OILPUMP DRIVE,38T

16085-0133

$122.91

46102

ROD

46102-0573

$33.91

92016

NUT,20MM

92016-028

$7.54

92022

WASHER,20.3X36X2.3

92022-1116

$6.55

92026

SPACER,25X52X5.5

92026-0115

$11.42

92026A

SPACER,25.5X44.5X2

92026-0734

$5.76

92045

BEARING-BALL

92045-0067

Unavailable

92139

BUSHING,25X32X29.1

92139-0773

$25.00

92145

SPRING

92145-0911

$7.12

92154

BOLT,UPSET,6X30

92154-0997

$2.31
