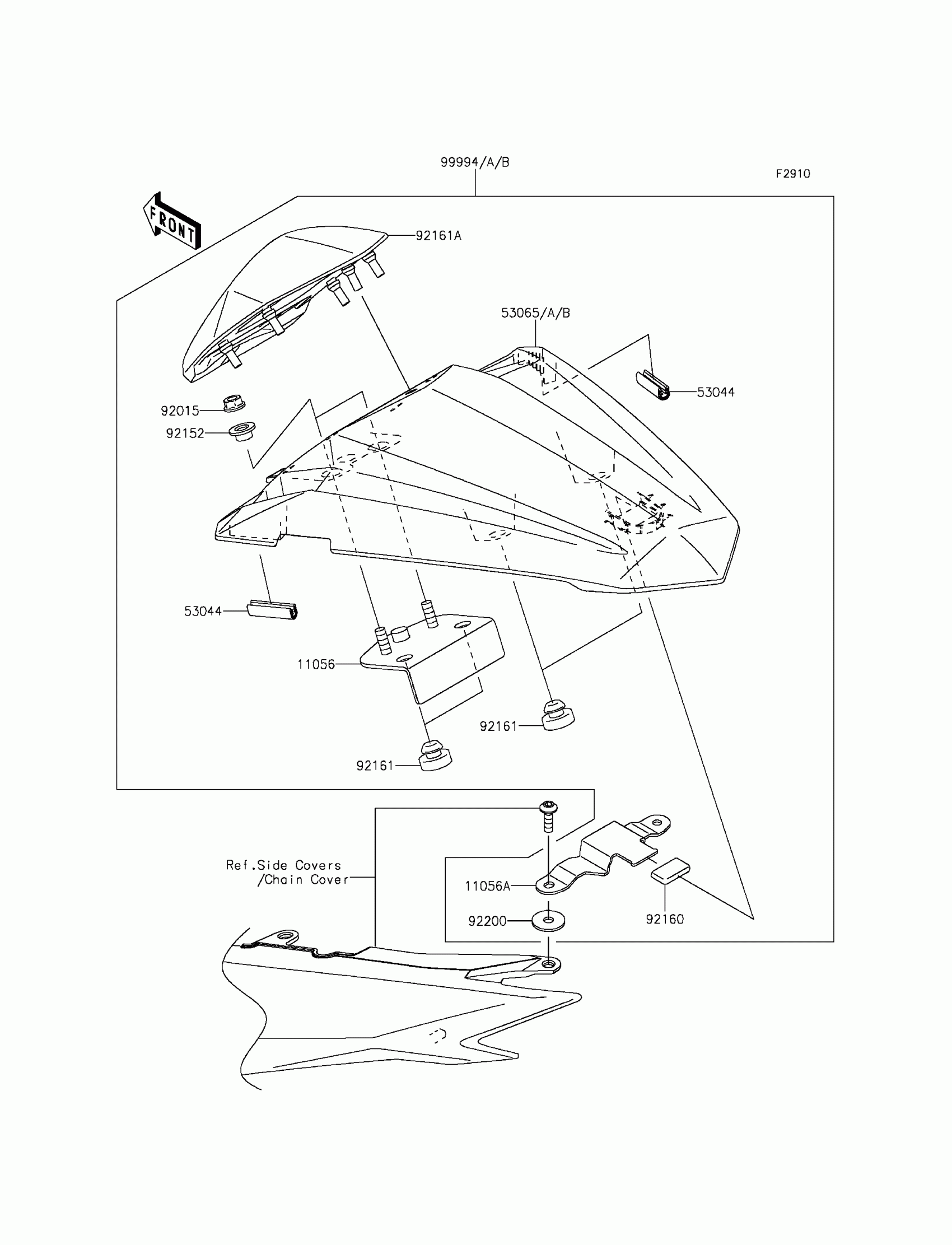

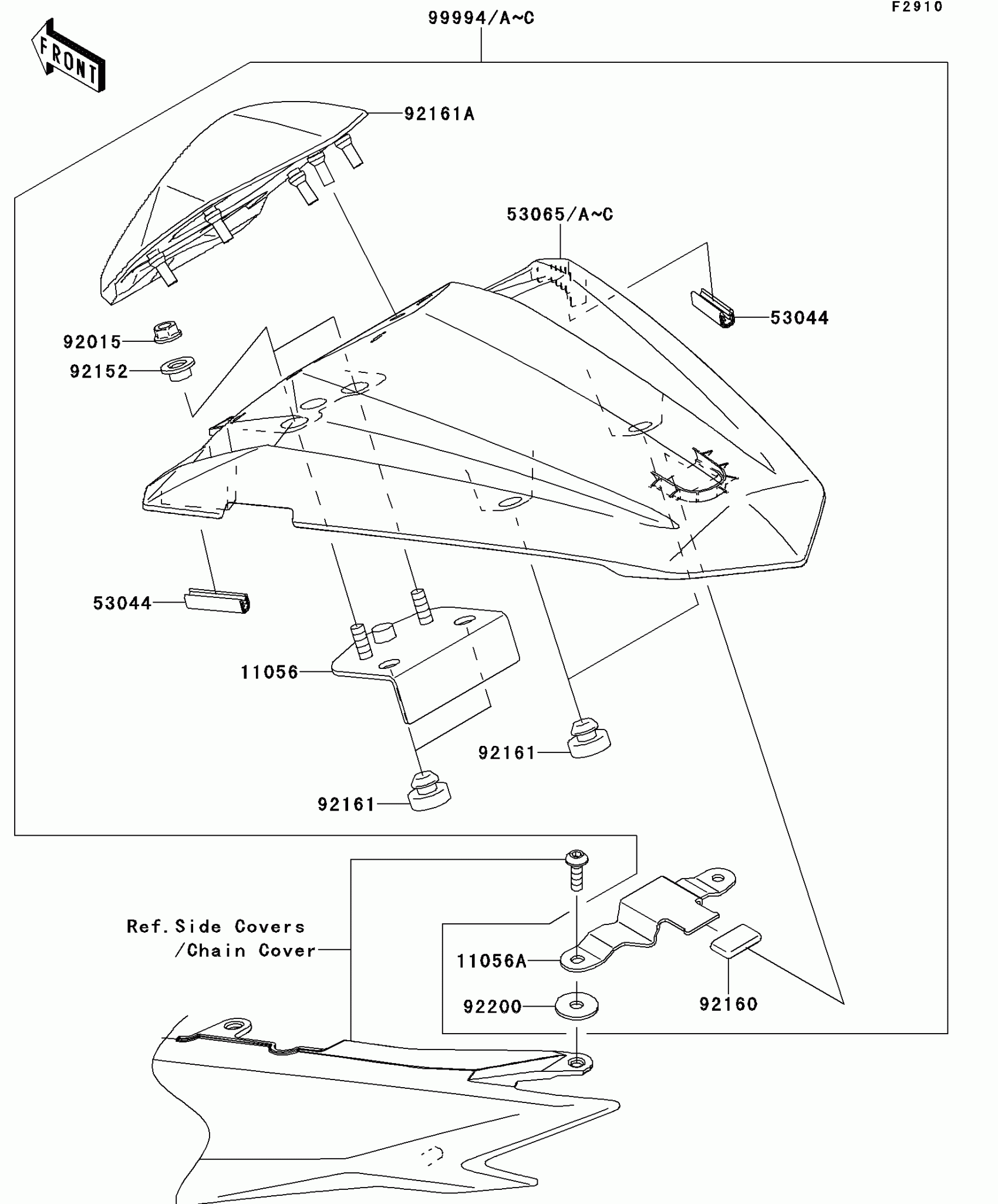

Kawasaki NINJA® 300 ABS Accessory(Single Seat Cover) Diagram

Description

Price

11056

BRACKET

11056-1823

$50.54

11056A

BRACKET

11056-2403

$11.25

53044

TRIM,L=30

53044-0001

$2.29

53065

COVER SEAT,EBONY

53065-0064-H8

$148.45

53065A

COVER SEAT,P.RED

53065-0064-15I

$157.02

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92152

COLLAR,6.8X10(16)X6.6

92152-0842

$5.99

92160

DAMPER

92160-1190

$3.12

92161

DAMPER

92161-0046

$9.14

92161A

DAMPER,CUSHION

92161-1460

$67.98

92200

WASHER,6X20X1.6

92200-0212

$2.31

99994

KIT,SINGLE SEAT,EBONY

99994-0354-H8

$182.06

99994A

KIT,SINGLE SEAT,P.RED

99994-0354-15I

$165.61
