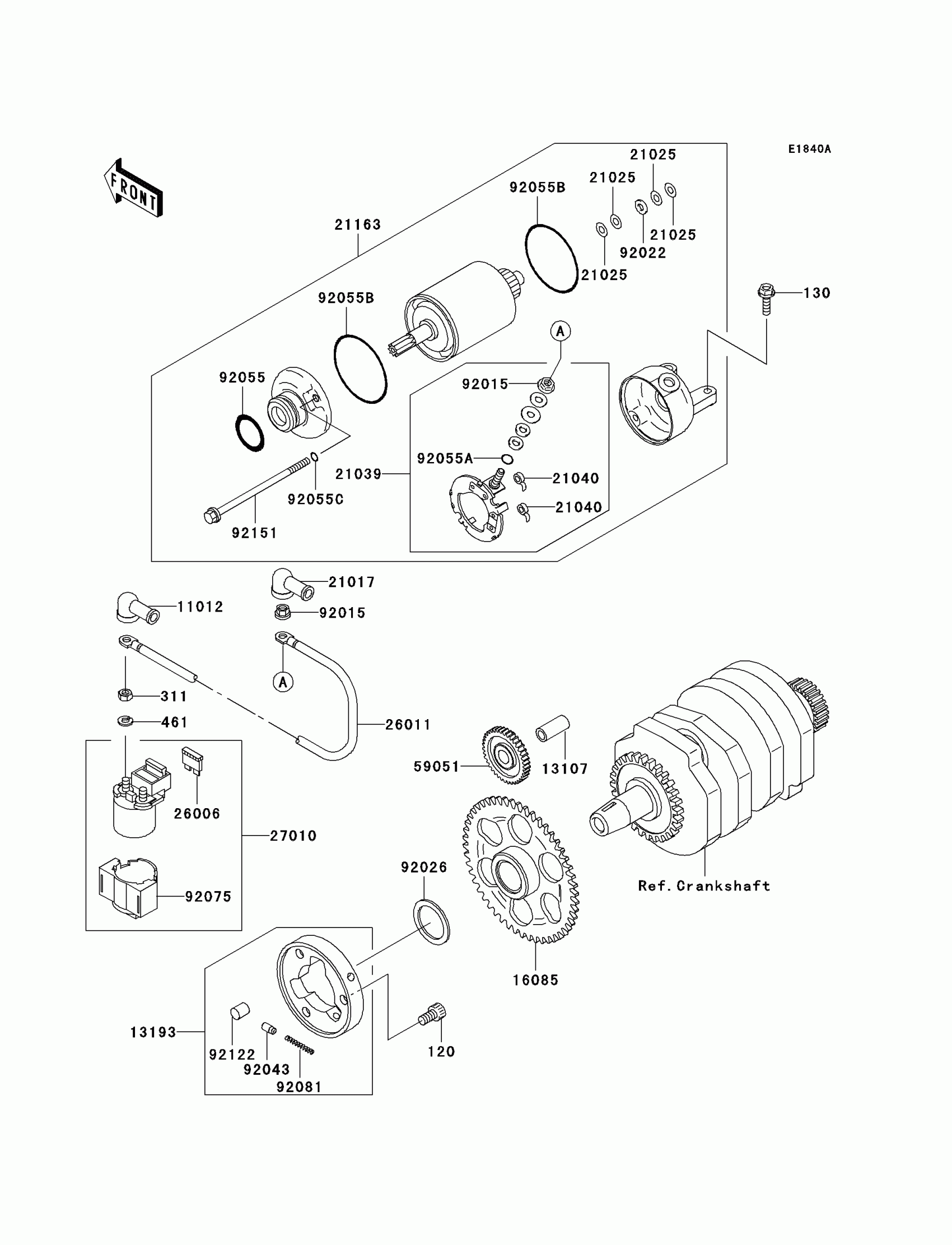

Kawasaki Ninja® 250R Starter Motor(F17-F19) Diagram

#

Description
Price

120

BOLT-SOCKET,8X14

120P0814

Unavailable

130

BOLT-FLANGED

130J0620

Unavailable

311

NUT 6MM

311B0600

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable

11012

CAP,TERMINAL

11012-1354

$10.19

13107

SHAFT,7.8X12X26.5

13107-1176

$10.56

13193

CLUTCH-ASSY-ONEWAY

13193-1002

$116.39

16085

GEAR,ONEWAY CLUTCH,65T

16085-1166

Unavailable

21017

GROMMET,STARTER TERMINAL

21017-017

$9.43

21025

WASHER,9.1X18X0.2

21025-011

Unavailable

21039

BRUSH

21039-1066

$32.07

21040

SPRING-BRUSH

21040-1057

$8.42

21163

STARTER-ELECTRIC

21163-1317

$534.58

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.96

26011

WIRE-LEAD,STARTER

26011-1837

$76.50

27010

SWITCH,MAGNETIC

27010-1213

Unavailable

59051

GEAR-SPUR,IDLE

59051-1154

$123.35

92015

NUT,STARTER MOTOR

92015-1476

$4.31

92022

WASHER,9.1X18X0.8

92022-1132

$6.22

92026

SPACER,25X40X1

92026-1004

$7.24

92043

PIN

92043-132

$6.22

92055

RING-O

92055-1276

$9.91

92055A

RING-O,4.5X2.0

92055-1370

$4.69

92055B

RING-O

92055-1550

$9.91

92055C

RING-O

92055-1551

$4.69

92075

DAMPER,MAGNETIC SWITCH

92075-1863

Unavailable

92081

SPRING,COIL

92081-159

$3.89

92122

ROLLER

92122-006

$6.22

92151

BOLT

92151-1980

$4.22
