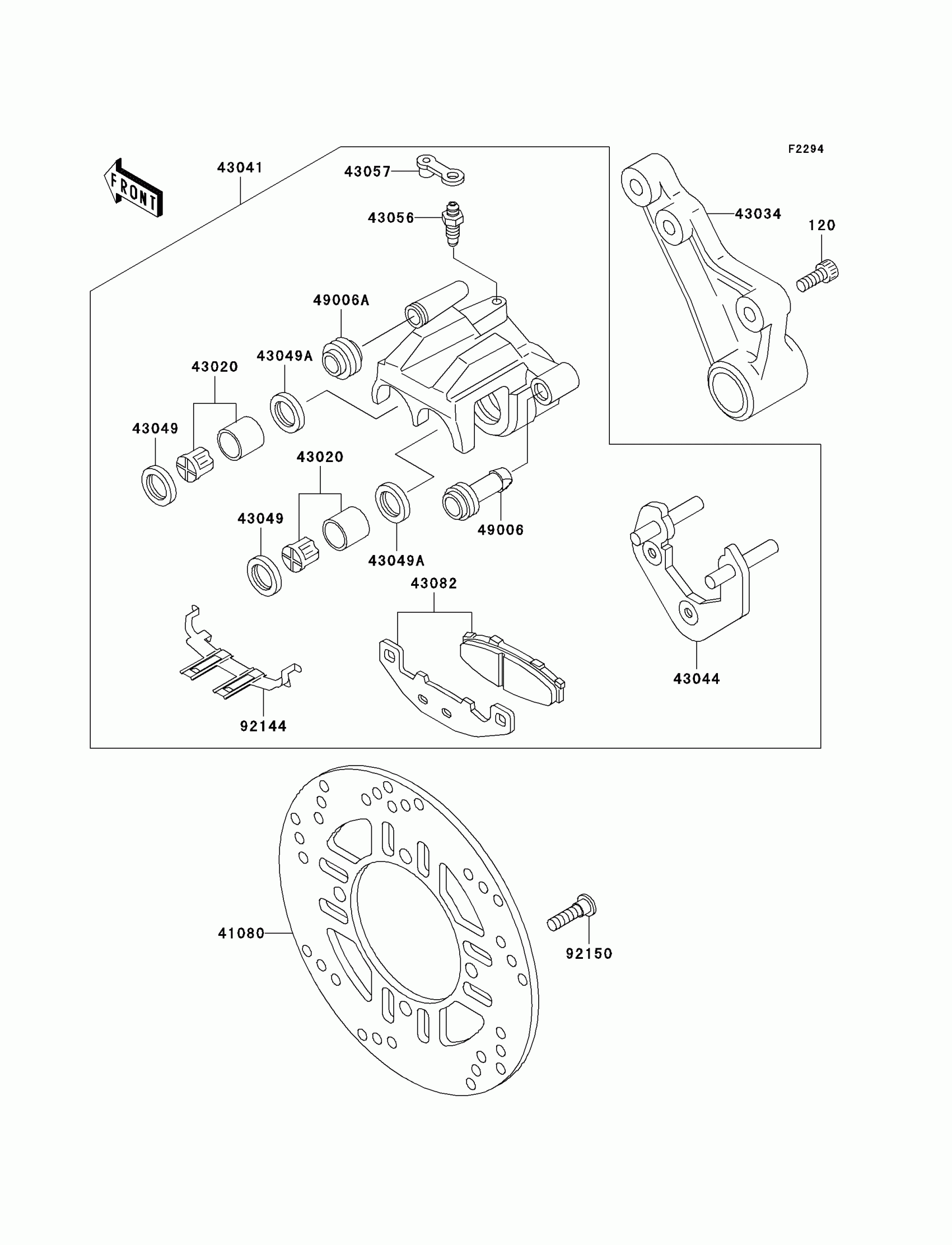

Kawasaki Ninja® 250R Rear Brake(F15-F17) Diagram

Description

Price

120

BOLT-SOCKET,8X20

120S0820

Unavailable

41080

DISC,RR

41080-1194

$319.40

43020

PISTON-COMP-BRAKE

43020-1074

$69.61

43034

HOLDER-BRAKE,REAR CALIPER

43034-1081

$141.91

43041

CALIPER-ASSY,RR,BLACK

43041-1924-DJ

$433.79

43044

HOLDER-COMP-CALIPER

43044-1072

$154.60

43049

PACKING,PISTON

43049-1059

$6.75

43049A

PACKING,PISTON SEAL

43049-1090

$4.84

43056

BREATHER-BRAKE

43056-1054

$22.74

43057

CAP-BREATHER

43057-003

$2.02

43082

PAD-ASSY-BRAKE

43082-1145

$55.41

49006

BOOT,CALIPER

49006-1054

$9.20

49006A

BOOT,CALIPER

49006-1055

$5.78

92144

SPRING,PAD

92144-1152

$43.07

92150

BOLT,SOCKET,8X30

92150-1771

$3.72
