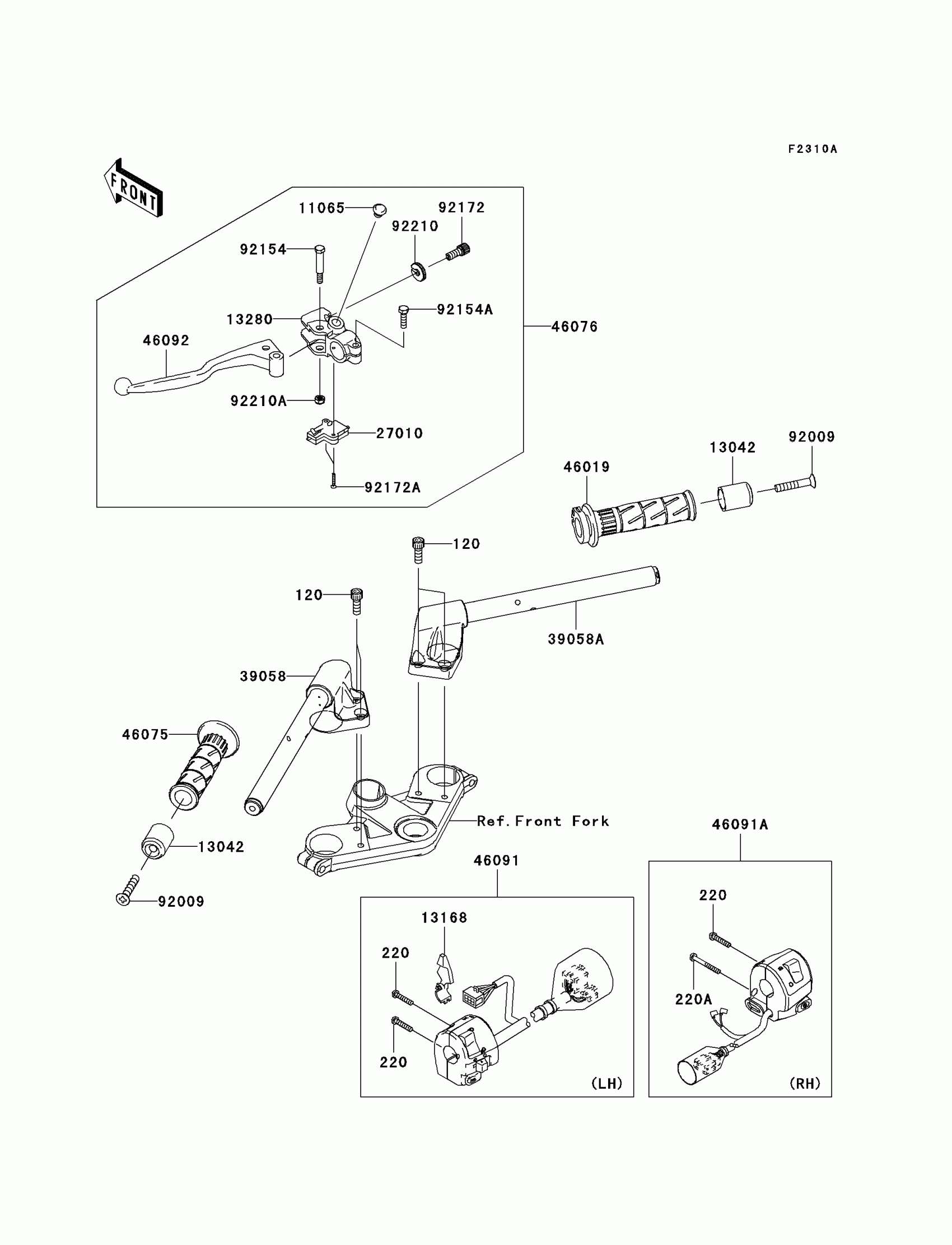

Kawasaki Ninja® 250R Handlebar(J9F-JAFA) Diagram

Description

Price

120

BOLT-SOCKET,8X22

120CB0822

$2.29

220

SCREW-PAN-CROS,5X25

220AB0525

$2.92

220A

SCREW-PAN-CROS,5X40

220AB0540

$1.73

11065

CAP,DUMMY

11065-0218

$4.44

13042

WEIGHT,HANDLE

13042-0032

$26.18

13168

LEVER,CHOKE

13168-1516

$7.77

13280

HOLDER,CLUTCH LEVER

13280-0295

$38.22

27010

SWITCH,CLUTCH,BLACK

27010-1094

$26.29

39058

HANDLE-COMP,LH,F.S.BLACK

39058-0007-18R

$120.38

39058A

HANDLE-COMP,RH,F.S.BLACK

39058-0008-18R

$117.55

46019

GRIP-ASSY,THROTTLE

46019-0001

$38.04

46075

GRIP,HANDLE,LH

46075-1144

$19.42

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0058

Unavailable

46091

HOUSING-ASSY-CONTROL,LH

46091-0156

$219.57

46091A

HOUSING-ASSY-CONTROL,RH

46091-0157

Unavailable

46092

LEVER-GRIP,CLUTCH

46092-0030

Unavailable

92009

SCREW,8X45

92009-1257

$3.72

92154

BOLT,CLUTCH LEVER

92154-0066

$3.11

92154A

BOLT

92154-0067

$1.81

92172

SCREW,CABLE ADJUST,8MM

92172-0376

$8.46

92172A

SCREW,3X16

92172-0397

$1.51

92210

NUT,CABLE ADJUST,LOCK,8MM

92210-0479

$8.46

92210A

NUT,LOCK,6MM

92210-0480

$2.42
