1987 Kawasaki Ninja® 250R Fuel Tank Diagram

← All diagrams

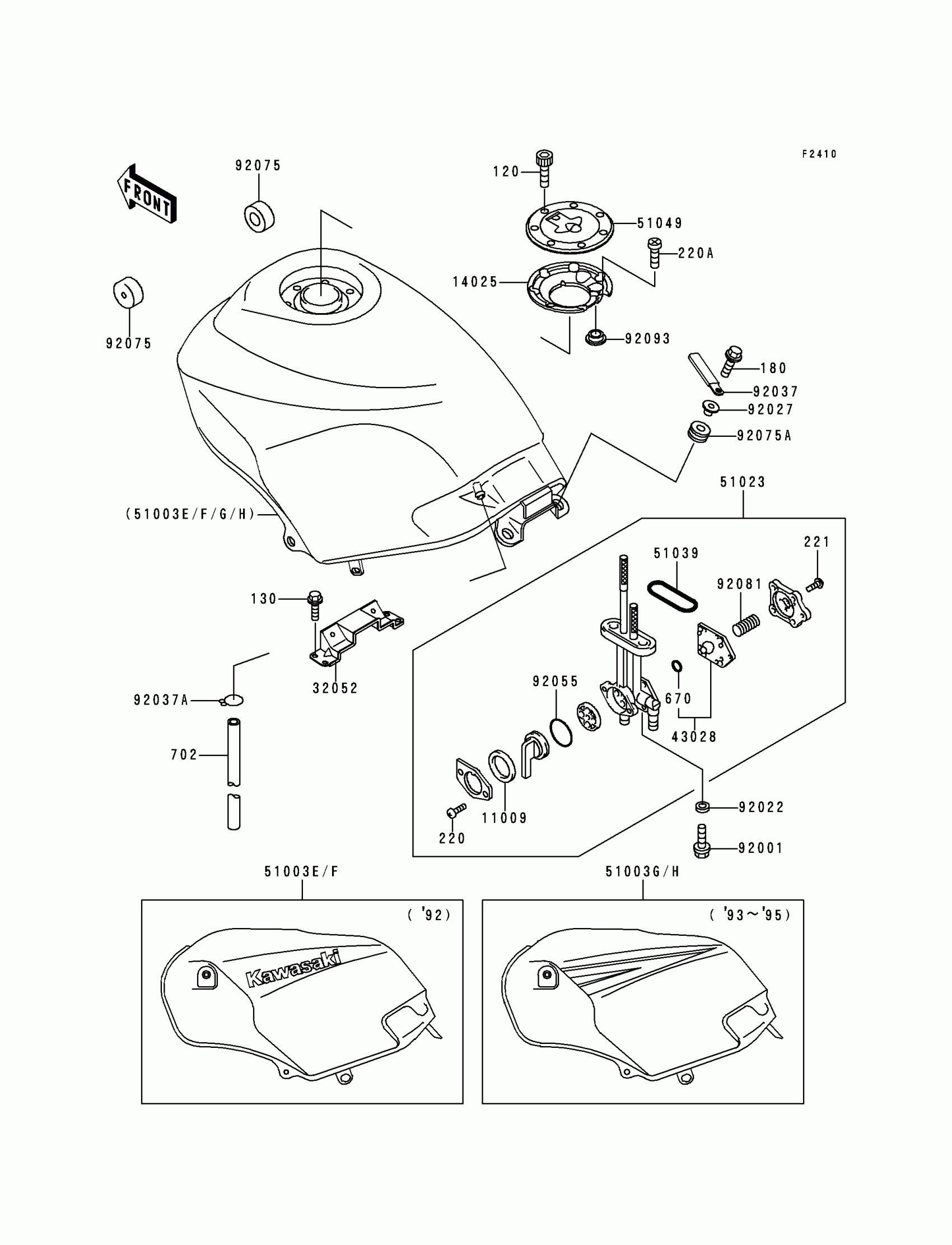

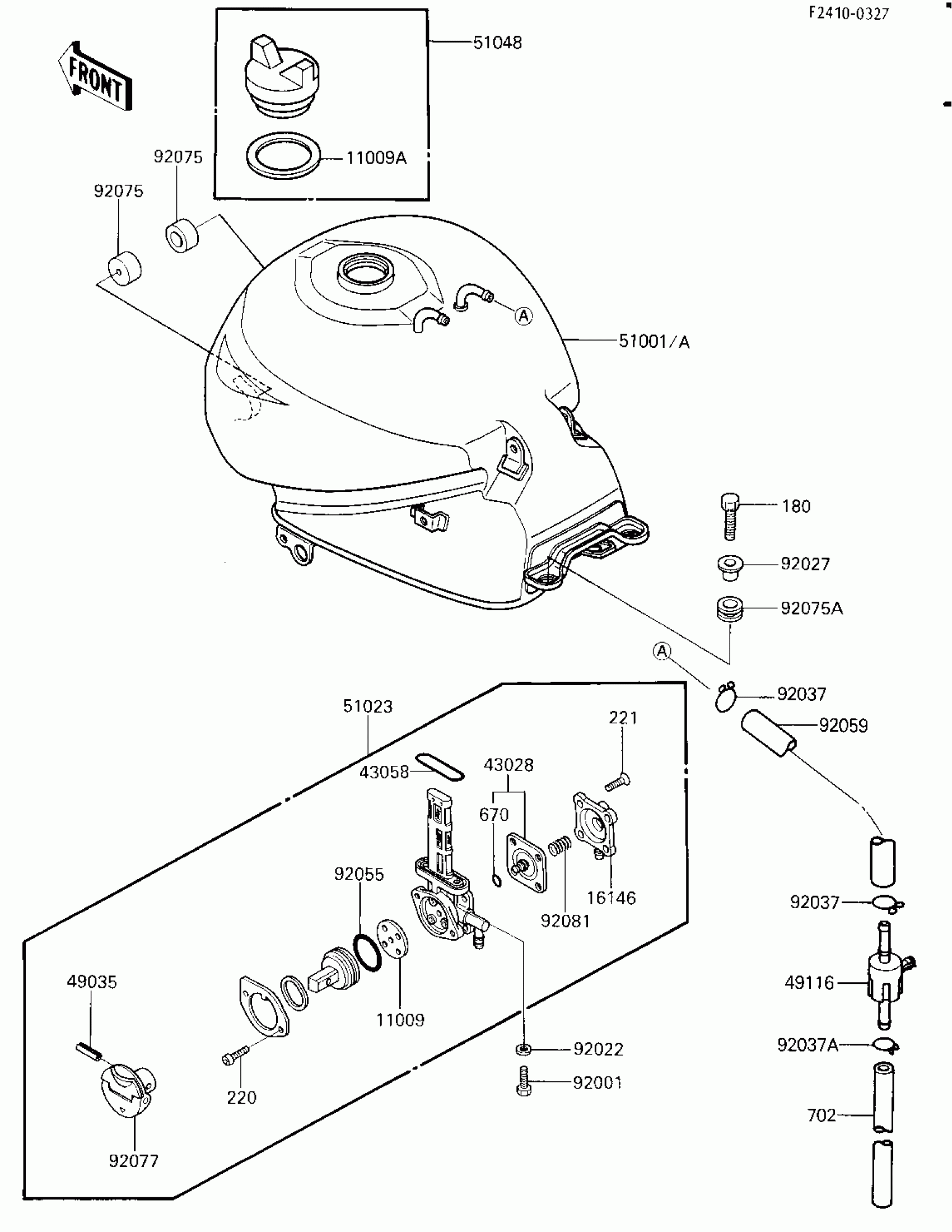

Find the part on the Fuel Tank diagram for your 1987 Kawasaki Ninja® 250R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Kawasaki Ninja® 250R Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,TAP VALVE

11009-1188

1
Out of stock

16146

COVER-ASSY,TAP DIAPHRAGM

16146-1010

1
Out of stock

43028

DIAPHRAGM

43028-1033

1
Out of stock

43058

RING,TAP FLANGED

51039-003

1
Out of stock

49035

PIN-SPRING,3.1X14

49035-1053

1
Out of stock

49116

VALVE-ASSY,BREATHER

49116-1063

1
Out of stock

51001A

TANK-COMP-FUEL

51001-1252

1
Out of stock

51023

TAP-ASSY,FUEL

51023-1125

1
Out of stock

51048

CAP-ASSY-TANK,FUEL

51048-1070

1
Out of stock

92001

BOLT,6X20

92001-1091

1
Out of stock

92022

WASHER-PLAIN

92022-183

1
Out of stock

92027

COLLAR,L=13.1

92027-251

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92037A

CLAMP

92037-1610

1
Out of stock

92055

RING-O,TAP LEVER

92055-1085

1
Out of stock

92059

TUBE,5X10X550,BLUE

92059-1589

1
Out of stock

92075

DAMPER,FUEL TANK,FR

92075-1115

1
Out of stock

92075A

DAMPER,10X24X12

92075-1690

1
Out of stock

92077

KNOB,FUEL TAP

92077-1074

1
Out of stock

92081

SPRING,TAP DIAPHRAGM

92081-1240

1
Out of stock

180

BOLT-UPSET-WS,6X25

180B0625

1
Out of stock

220

SCREW-PAN-CROS,3X8

220B0308

1
Out of stock

221

SCREW-CSK-CROS,4X14

221B0414

1
Out of stock

702

TUBE-RUBBER 5X400

702A05400

1
Out of stock
