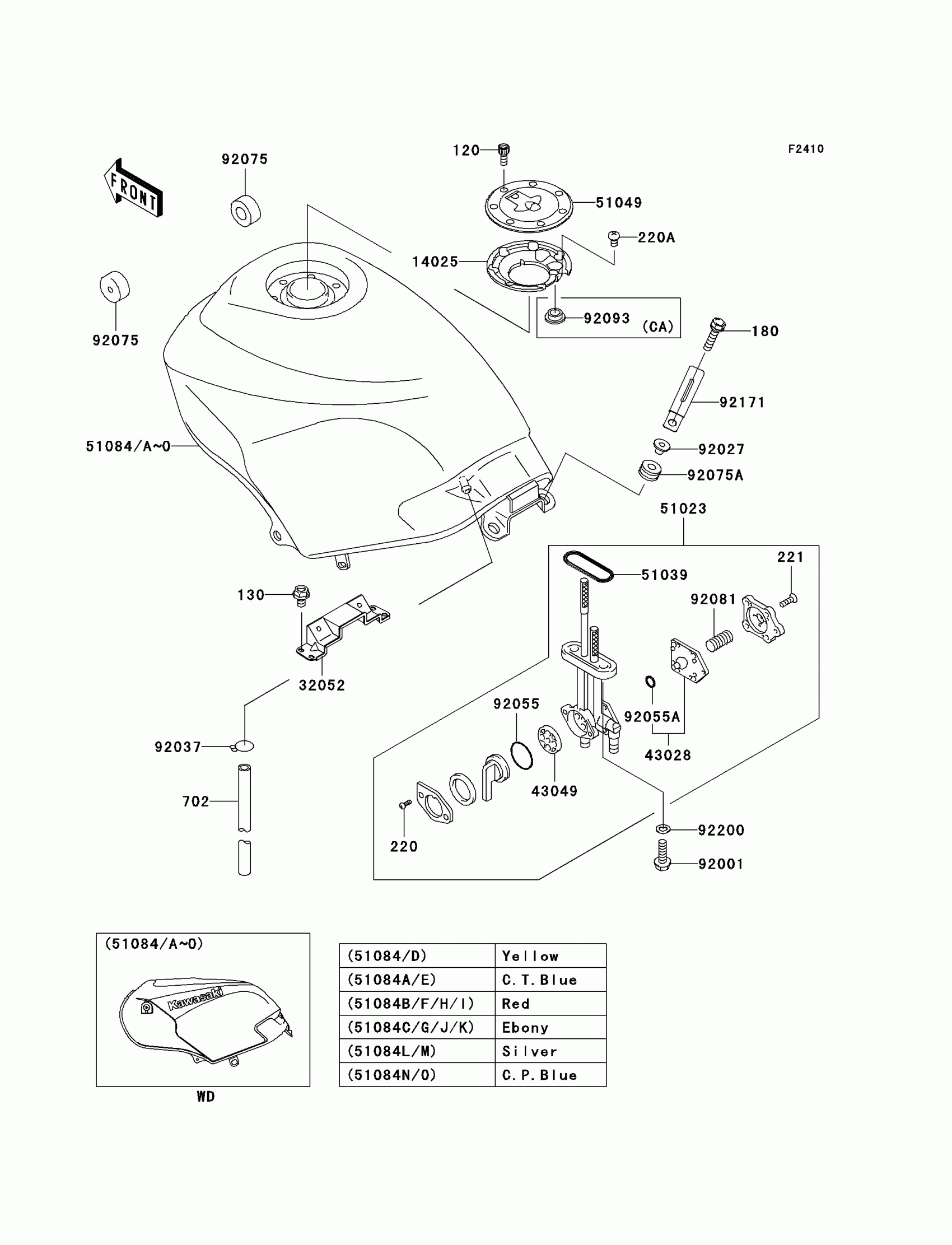

Kawasaki Ninja® 250R Fuel Tank(4/4) Diagram

#

Description
Price

14025

COVER,TANK CAP

14025-1913

$19.98

32052

BRACKET-TANK,RR

32052-1254

$32.47

43028

DIAPHRAGM,TAP

43028-1068

$48.32

43049

PACKING

43049-1103

$4.54

51023

TAP-ASSY,FUEL

51023-1393

$132.85

51039

RING,TAP FLANGED

51039-003

$4.97

51049

CAP-TANK,FUEL

51049-1131

$136.32

120

BOLT-SOCKET,5X12

120S0512

Unavailable

130

BOLT-FLANGED,6X10

130H0610

Unavailable

180

BOLT-UPSET-WS,6X25

180D0625

$3.39

220

SCREW-PAN-CROS,3X8

220C0308

$0.61

220A

SCREW-PAN-CROSS,5X8

220F0508

Unavailable

221

SCREW-CSK-CROS,4X14

221B0414

Unavailable

702

TUBE-BREATHER (BULK)

702A071000

$10.53

92001

BOLT,6X20

92001-1091

$3.12

92022

WASHER-PLAIN

92022-183

$3.12

92027

COLLAR,L=13.1

92027-251

Unavailable

92037A

CLAMP

92037-1712

$3.97

92055

RING-O,TAP LEVER

92055-1085

$4.01

92055A

RING-O

92055-1664

$4.15

92075

DAMPER,FUEL TANK,FR

92075-1115

$5.21

92075A

DAMPER,10X24X12

92075-1690

$3.97

92081

SPRING,TAP DIAPHRAGM

92081-1240

$3.10

92171

CLAMP,WIRING HARNESS,L=60

92171-1425

$1.59

51083F

TANK-COMP-FUEL,EBONY

51083-5373-IG

$1,011.35

51083G

TANK-COMP-FUEL,G.SILVER

51083-5374-X1

$1,030.03

51083H

TANK-COMP-FUEL,M.N.BLUE

51083-5375-KQ

$1,030.03

51083I

TANK-COMP-FUEL,EBONY

51083-5376-IG

$1,030.03

51083J

TANK-COMP-FUEL,G.SILVER

51083-5377-X1

$1,030.03

51083K

TANK-COMP-FUEL,M.N.BLUE

51083-5381-KQ

$1,030.03

92093

SEAL,FUEL TANK CAP

92093-1030

$6.18
